XHHW-2 cable is used in conduit or recognized raceways for services, feeders, and branch circuit wiring. And the cable may be used in wet or dry locations at temperatures not to exceed 90°C.
XHHW-2 cable is used in conduit or recognized raceways for services, feeders, and branch circuit wiring. And the cable may be used in wet or dry locations at temperatures not to exceed 90°C.
Standard CSA C22.2 No.38 /UL44/Client requirements

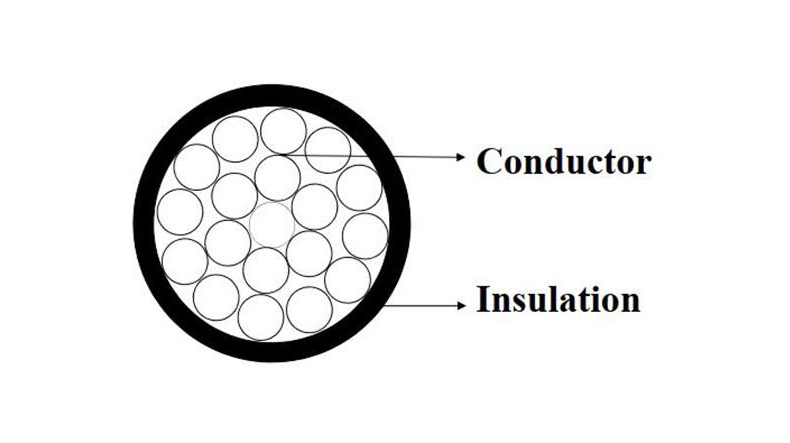

Construction Conductor :Copper conductor, class2 or class5.
Aluminum 1350-H19
Aluminum 8000 serious
Insulation : XLPE , Weather resistant
| Conductor | Min stranding Number of conductor | Approx. Conductor dia. | Nominal insulation thickness | Approx. Outside Diameter | Approx. weight kg/km |
||
| Size
(AWG or kcmil) |
Alu conductor | Copper conductor | mm | mm | mm | Alu conductor | Copper conductor |
| 8 | 7 | 7 | 3.4 | 1.14 | 5.68 | 38 | 219 |
| 6 | 7 | 7 | 4.3 | 1.14 | 6.58 | 54 | 341 |
| 4 | 7 | 7 | 5.35 | 1.14 | 7.63 | 79 | 536 |
| 2 | 7 | 7 | 6.8 | 1.14 | 9.08 | 117 | 844 |
| 1 | 6 | 6 | 7.59 | 1.4 | 10.39 | 152 | 1068 |
| 1/0 | 6 | 6 | 8.53 | 1.4 | 11.33 | 185 | 1341 |
| 2/0 | 12 | 12 | 9.55 | 1.4 | 12.35 | 227 | 1684 |
| 3/0 | 15 | 15 | 10.7 | 1.4 | 13.5 | 280 | 2116 |
| 4/0 | 15 | 15 | 12.1 | 1.4 | 14.9 | 345 | 2661 |
| 250 | 15 | 18 | 13.2 | 1.65 | 16.5 | 414 | 3151 |
| 300 | 15 | 18 | 14.5 | 1.65 | 17.8 | 489 | 3772 |
| 350 | 30 | 30 | 15.6 | 1.65 | 18.9 | 563 | 4393 |
| 400 | 30 | 30 | 16.7 | 1.65 | 20 | 637 | 5014 |
| 500 | 30 | 34 | 18.7 | 1.65 | 22 | 783 | 6256 |
| 600 | 30 | 34 | 20.7 | 2.03 | 24.76 | 957 | 7524 |
| 700 | 30 | 34 | 22.3 | 2.03 | 26.36 | 1103 | 8765 |
| 750 | 53 | 53 | 23.1 | 2.03 | 27.16 | 1177 | 9385 |
| 1,000 | 53 | 53 | 26.9 | 2.03 | 30.96 | 1541 | 12486 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
