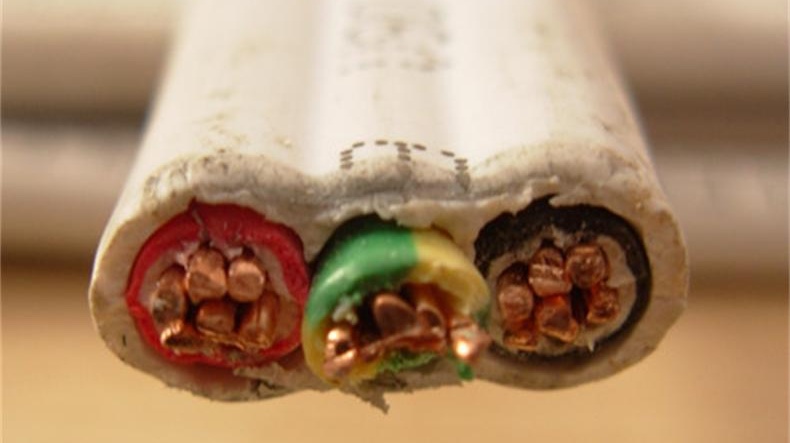

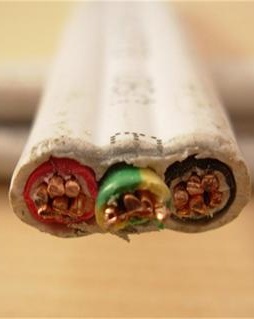

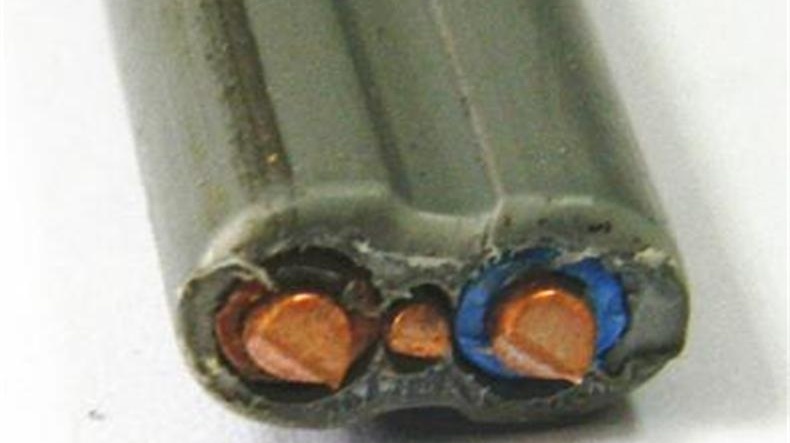

Twin and earth cable is suitable for household electrical appliances, small electric power tools, instruments and apparatuses and lighting devices, AC rated voltage up to and including 300/500V 450/700V, which is used for connecting power line.
Twin and earth cable is suitable for household electrical appliances, small electric power tools, instruments and apparatuses and lighting devices, AC rated voltage up to and including 300/500V 450/700V, which is used for connecting power line.
Standard Type: BVVB
Strandard: BS EN 50525-2-31 Voltage: 300/500V

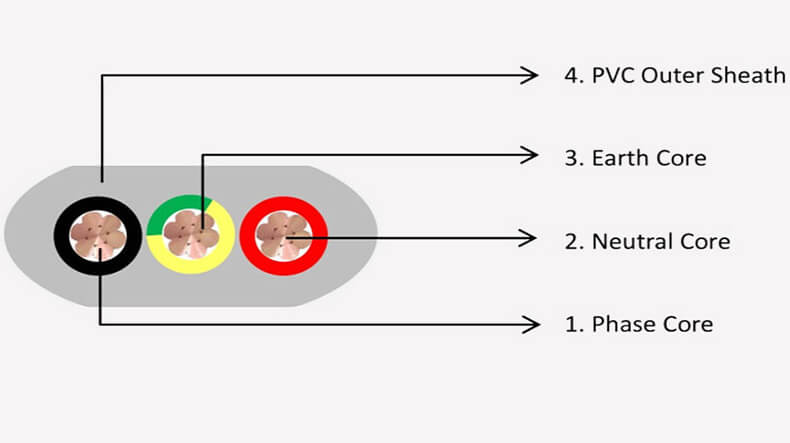

Construction 1.Voltage Uo/U 220V
2.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C
3.The Ambient Temperature Under Installation Should Not Below 0°C
4.Impedance (ohms): 100±2ohm
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal overall dimensions | Circuit protective conductor | Nominal Weight | |
| lower limit | upper limit | |||||
| Nox mm2 | mm | mm | mm | mm | mm2 | kg/km |
| 1 × 1.0 | 0.6 | 0.9 | 4×5.1 | 5.2×6.4 | 1 | 45 |
| 1 × 1.5 | 0.7 | 0.9 | 4.4×5.4 | 5.8×7.0 | 1.5 | 55 |
| 2 × 1.0 | 0.6 | 0.9 | 4 × 7.2 | 4.7 × 8.6 | 1 | 68 |
| 2 × 1.5 | 0.7 | 0.9 | 4.5×8.4 | 5.6×10 | 1.5 | 90 |
| 2 × 2.5 | 0.8 | 1 | 5.2×9.8 | 6.6×12.0 | 2.5 | 125 |
| 2 × 4 | 0.8 | 1 | 5.6×10.5 | 7.2×13.0 | 4 | 175 |
| 2 × 6 | 0.8 | 1.1 | 6.4×12.5 | 8.0×15.0 | 6 | 240 |
| 2 × 10 | 1 | 1.2 | 7.8×15.5 | 9.6×19.0 | 10 | 390 |
| 2 × 16 | 1 | 1.3 | 9.0×18.0 | 11.0×22.5 | 16 | 560 |
| 3 × 1.0 | 0.6 | 0.9 | 4×9.6 | 4.7×11.0 | 1 | 91 |
| 3 × 1.5 | 0.7 | 0.9 | 4.4×10.5 | 5.4×12.5 | 1.5 | 115 |
| 3 × 2.5 | 0.8 | 1 | 5.2×12.5 | 6.2×14.5 | 2.5 | 170 |
| 3 × 4 | 0.8 | 1.1 | 5.8×14.5 | 7.4×18.0 | 4 | 250 |
| 3 × 6 | 0.8 | 1.1 | 6.4×16.5 | 8.0×20.0 | 6 | 340 |
| 3 × 10 | 1 | 1.2 | 7.8×21.0 | 9.6×25.5 | 10 | 540 |
| 3 × 16 | 1 | 1.3 | 9.0×24.5 | 11.0×29.5 | 16 | 790 |

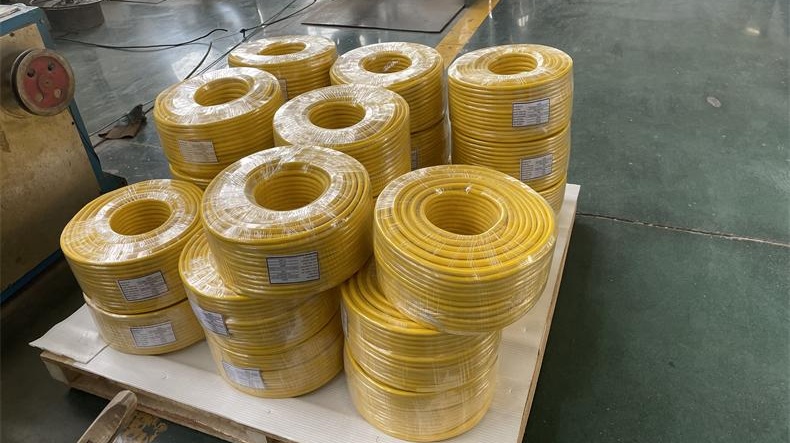

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
