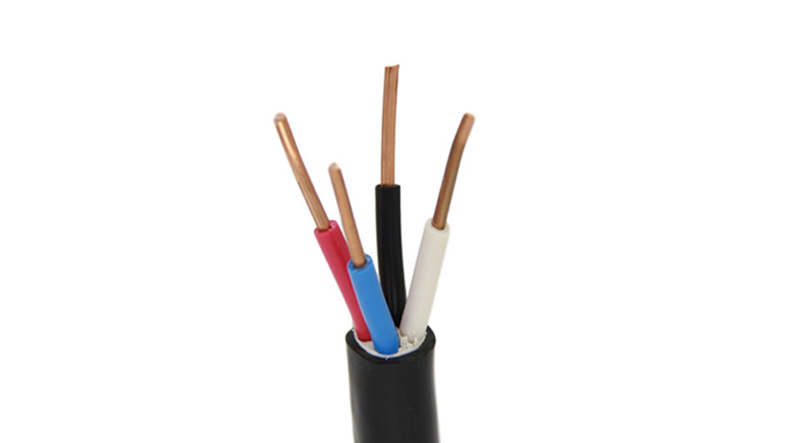

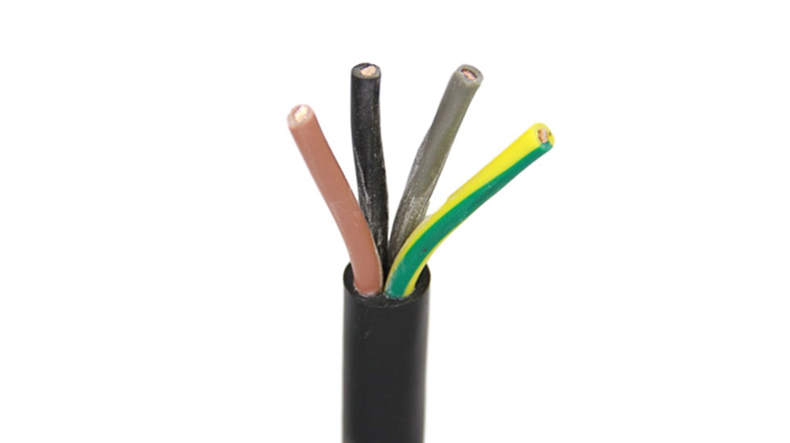

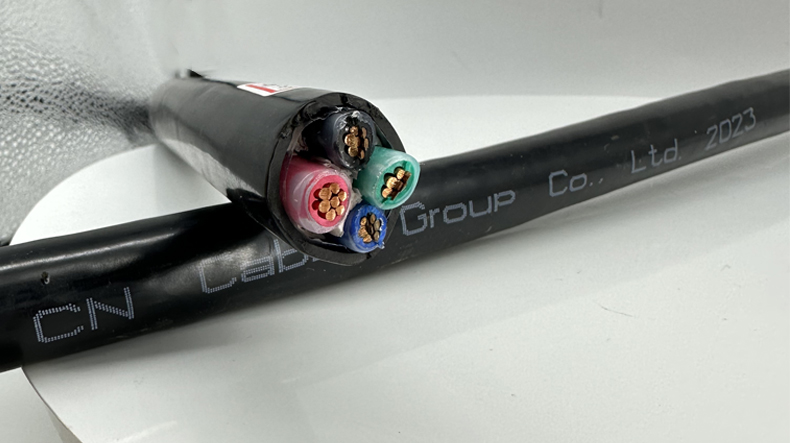

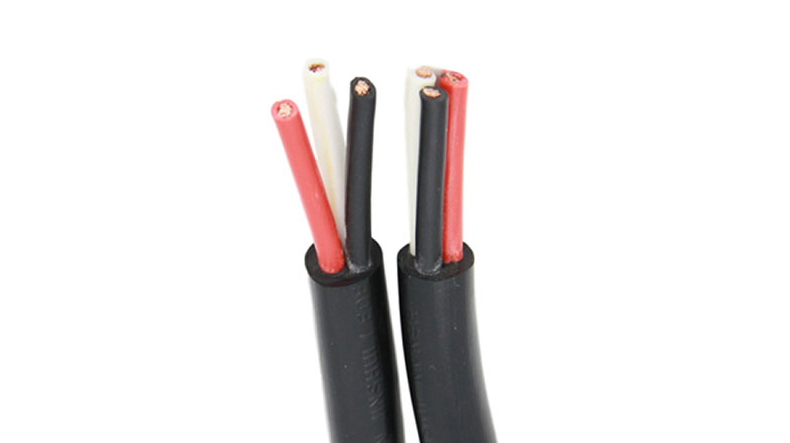

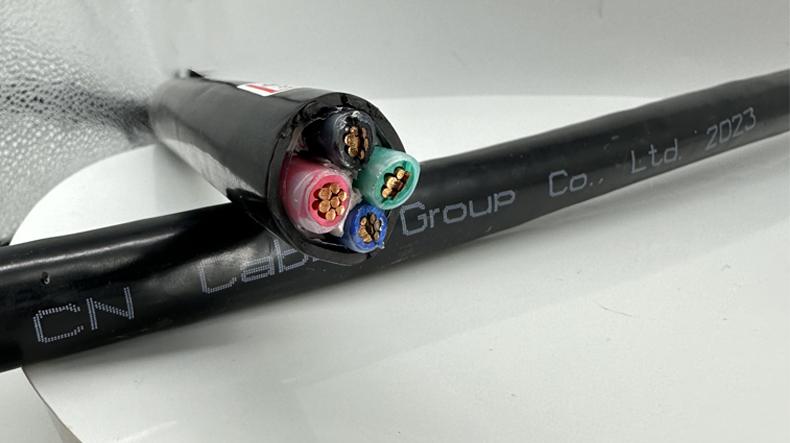

TSJ cable is an insulated multi conductor composed by bunch-stranded annealed copper flexible conductors, each single cord has a thermoplastic insulation of PVC (Polyvinyl Chloride) and its protected by a Nylon sheath.
Description: TSJ cable is an insulated multi conductor composed by bunch-stranded annealed copper flexible conductors, each single cord has a thermoplastic insulation of PVC (Polyvinyl Chloride) and its protected by a Nylon sheath.
Voltage: 600V；
Standard: ASTM B 172; B174; UL-62;
Construction: CU/PVC+NYLON/PVC;
Application: This product can be used for wiring solutions in industrial, commercial and residential applications.
| Number of conductor | Conductor stranding | Nom. insul. Thickness (in) | Nom. OD of cable (in) | Ampactiy(A) | Approx. weight(Wt. Lbs/IM Ft.) |
| 2 | 16/30 | 0.03 | 0.287 | 10 | 50 |
| 3 | 16/30 | 0.03 | 0.315 | 10 | 55 |
| 3 | 26/30 | 0.03 | 0.33 | 13 | 75 |
| 4 | 26/30 | 0.03 | 0.365 | 10 | 85 |
| 3 | 41/30 | 0.045 | 0.365 | 18 | 90 |
| 4 | 41/30 | 0.045 | 0.405 | 15 | 115 |
| 3 | 65/30 | 0.045 | 0.43 | 25 | 135 |
| 4 | 65/30 | 0.045 | 0.475 | 20 | 170 |
| 3 | 104/30 | 0.045 | 0.58 | 30 | 215 |
| 4 | 104/30 | 0.045 | 0.64 | 25 | 275 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
