THW Thhn Wire

The cables/wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution.

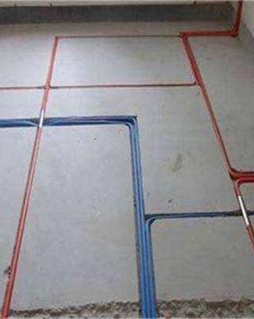

Application The cables/wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution. They are installed in surface mounted or embedded conduits or similar closed systems and for fixed protection, and on lighting fittings and inside appliances, switchgear and control gear.
Standard IEC 60227 , BS6004, UL1581, UL83

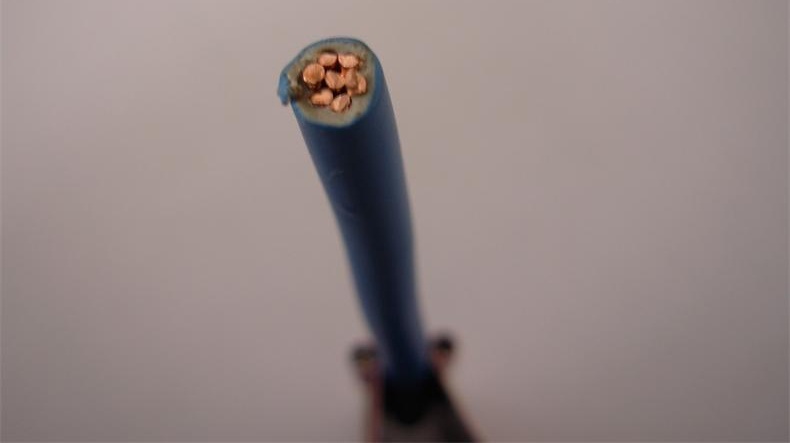

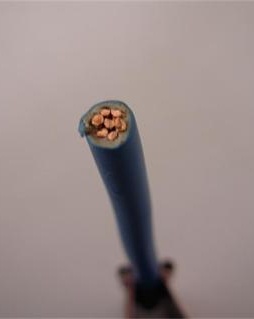

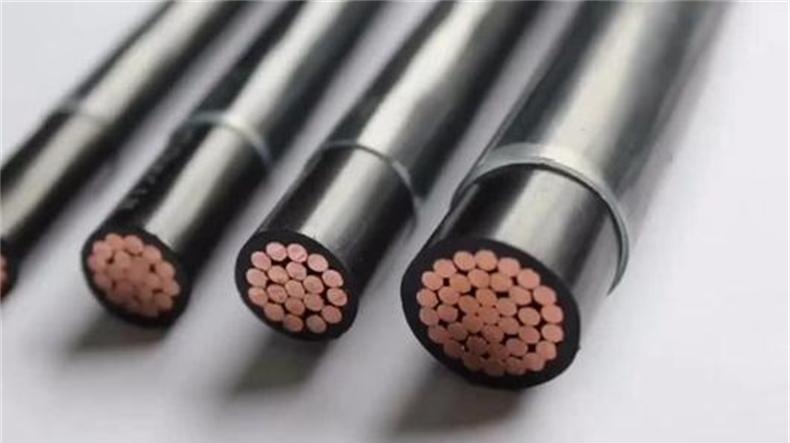

Construction Solid cu /PVC Insulation(H07V-U)
Stranded cu /PVC Insulation (H07V-R)

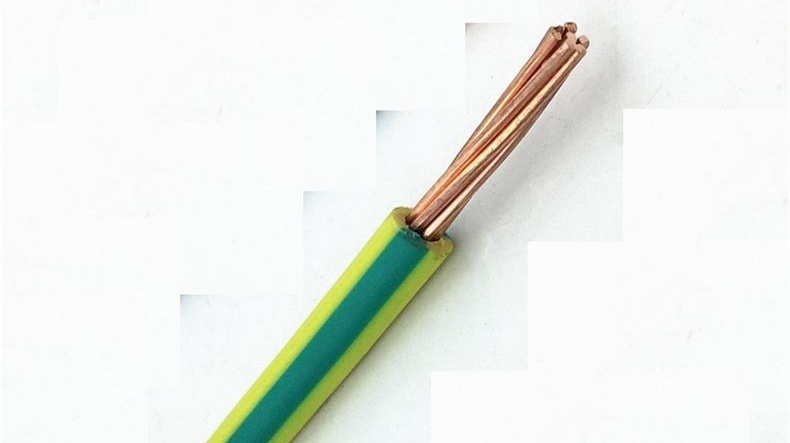

Flexible cu /PVC Insulation (H07V-K)
Without Nylon Jacket (THW)
With Nylon Jacket (THHN)

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

The cables/wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution. They are installed in surface mounted or embedded conduits or similar closed systems and for fixed protection, and on lighting fittings and inside appliances, switchgear and control gear.

Standard IEC 60227 , BS6004, UL1581, UL83

Construction A. Solid cu /PVC Insulation(H07V-U)
B. Stranded cu /PVC Insulation (H07V-R)
C. Flexible cu /PVC Insulation (H07V-K)
D. Without Nylon Jacket (THW)

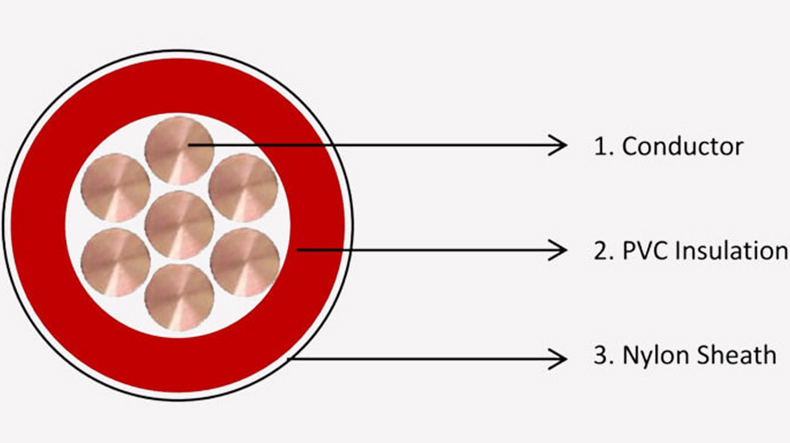

E. With Nylon Jacket (THHN)

Product Data Sheet

450/750V Cable Without Nylon Jacket (THW)

Size		Cu conductor		PVC Insulation	Approx. Overall Dia.	Approx. Weight
Size		Str. No.	Dia.	Nominal Thickness	Approx. Overall Dia.	Approx. Weight
AWG	mm2	No.s	mm	mm	mm	kg/km
20	0.519	1	0.81	0.6	2	9
18	0.811	1	1.02	0.6	2.2	12
16	1.318	1	1.3	0.7	2.7	19
14	2.075	1	1.63	0.8	3.2	28
12	3.332	1	2.06	0.8	3.7	41
10	5.26	1	2.59	0.8	4.2	60
8	8.37	1	3.26	1	5.3	95
6	13.3	1	4.12	1	6.1	144
20	0.519	7	0.93	0.6	2.1	9
18	0.811	7	1.17	0.6	2.4	13
16	1.318	7	1.47	0.7	2.9	19
14	2.075	7	1.86	0.8	3.5	29
12	3.332	7	2.34	0.8	3.9	42
10	5.26	7	2.94	0.8	4.5	61
8	8.37	7	3.69	1	5.7	98
6	13.3	7	4.68	1	6.7	147
4	21.15	19	5.95	1.2	8.4	231
2	33.62	19	7.5	1.2	9.9	352

450/750V Cable With Nylon Jacket (THHN)

Nominal Cross-section		Conductor	Insulation	Jacket Thickness	Approx. Overall Dia.	Current Capacity ¹
Nominal Cross-section		Stranding No.	Nominal thickness	Jacket Thickness	Approx. Overall Dia.	Current Capacity ¹
AWG	mm²	Nos.	mm	mm	mm	A²	A³
14	2.08	1	0.38	0.1	2.59	35	25
14	2.08	7	0.38	0.1	2.76	35	25
14	2.08	19	0.38	0.1	2.71	35	25
12	3.31	1	0.38	0.1	3.01	40	30
12	3.31	7	0.38	0.1	3.3	40	30
12	3.31	19	0.38	0.1	3.16	40	30
10	5.26	1	0.51	0.1	3.81	55	40
10	5.26	7	0.51	0.1	4.07	55	40
10	5.26	19	0.51	0.1	4.02	55	40
8	8.37	1	0.76	0.13	5.04	80	55
8	8.37	7	0.76	0.13	5.38	80	55
8	8.37	19	0.76	0.13	5.28	80	55
6	13.3	1	0.76	0.13	5.9	105	75
6	13.3	7	0.76	0.13	6.31	105	75
6	13.3	19	0.76	0.13	6.23	105	75
4	21.15	7	1.02	0.15	8.07	140	95
4	21.15	19	1.02	0.15	7.94	140	95
2	33.62	7	1.02	0.15	9.54	190	130
2	33.62	19	1.02	0.15	9.38	190	130
1	42.4	7	1.27	0.18	10.8	220	150
1	42.4	19	1.27	0.18	11.08	220	150
1/0	53.49	19	1.27	0.18	11.78	260	170
1/0	53.49	37	1.27	0.18	12.08	260	170
2/0	67.43	19	1.27	0.18	12.86	300	195
2/0	67.43	37	1.27	0.18	13.21	300	195
3/0	85.01	19	1.27	0.18	14.09	350	225
3/0	85.01	37	1.27	0.18	14.48	350	225
4/0	107.2	19	1.27	0.18	15.46	405	260
4/0	107.2	37	1.27	0.18	15.9	405	260
250	127	37	1.52	0.2	17.62	455	290
250	127	61	1.52	0.2	17.62	455	290
300	152	37	1.52	0.2	18.96	505	320
300	152	61	1.52	0.2	18.96	505	320
350	177	37	1.52	0.2	20.22	570	350
350	177	61	1.52	0.2	20.22	570	350
400	203	37	1.52	0.2	21.38	615	380
400	203	61	1.52	0.2	21.38	615	380
500	253	37	1.52	0.2	23.48	700	430
500	253	61	1.52	0.2	23.48	700	430
600	304	61	1.78	0.23	26.02	780	475
600	304	91	1.78	0.23	26.02	780	475
700	355	61	1.78	0.23	27.77	855	520
700	355	91	1.78	0.23	27.77	855	520
750	380	61	1.78	0.23	28.61	885	535
750	380	91	1.78	0.23	28.61	885	535
800	405	61	1.78	0.23	29.41	920	555
800	405	91	1.78	0.23	29.41	920	555
900	456	61	1.78	0.23	30.96	985	585
900	456	91	1.78	0.23	30.96	985	585
1000	507	61	1.78	0.23	32.4	1055	615
1000	507	91	1.78	0.23	32.4	1055	615
