PVC Insulated Electric Wire

The cables/wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution.

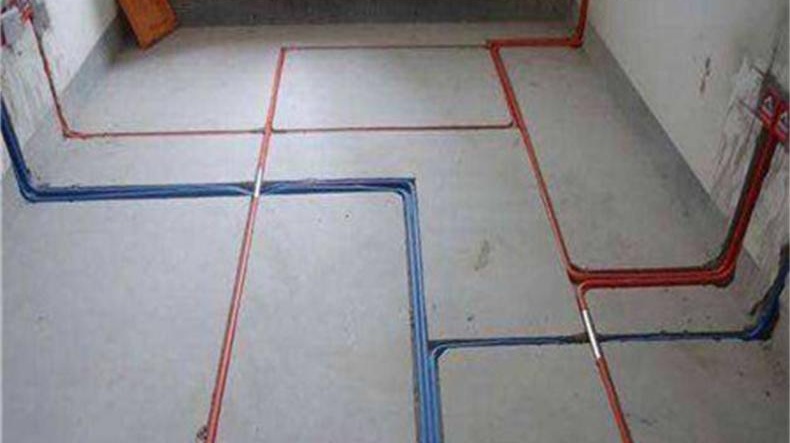

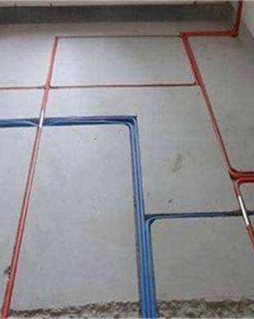

Application The cables/wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution. They are installed in surface mounted or embedded conduits or similar closed systems and for fixed protection, and on lighting fittings and inside appliances, switchgear and control gear.
Standard IEC 60227 , BS6004, UL1581, UL83

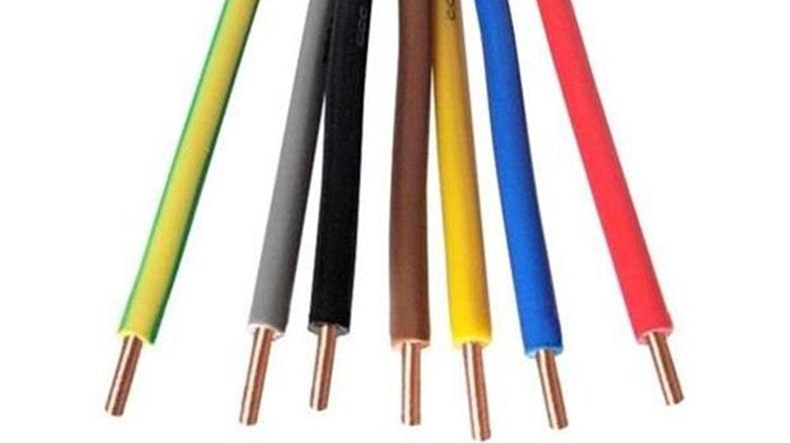

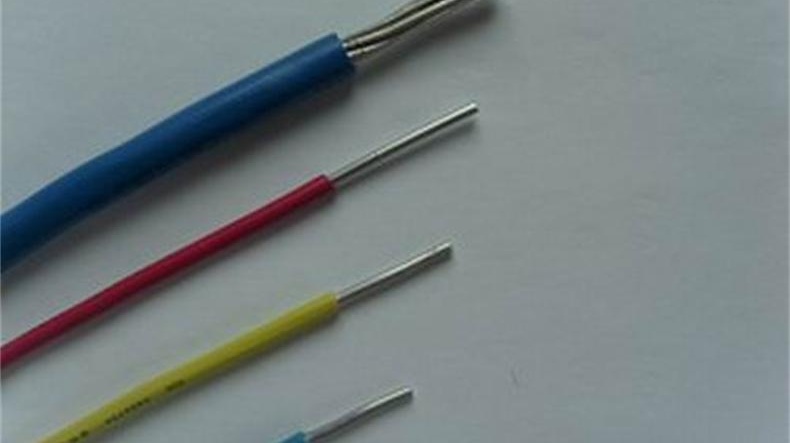

Construction Solid cu /PVC Insulation(H07V-U)

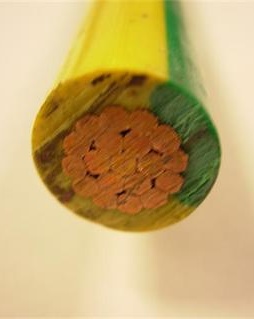

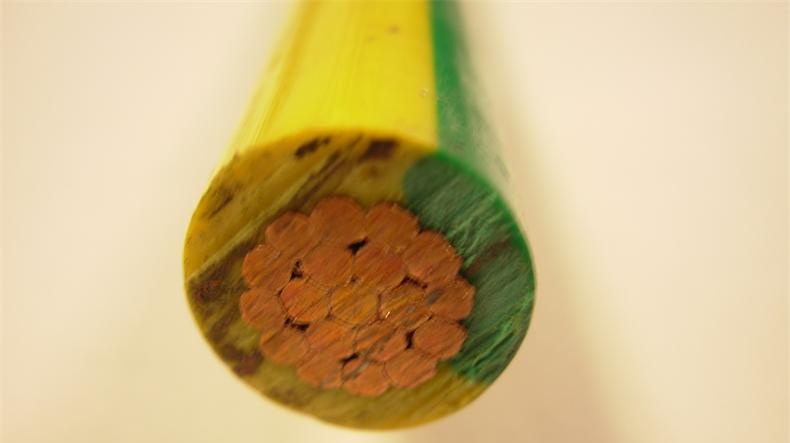

Stranded cu /PVC Insulation (H07V-R)

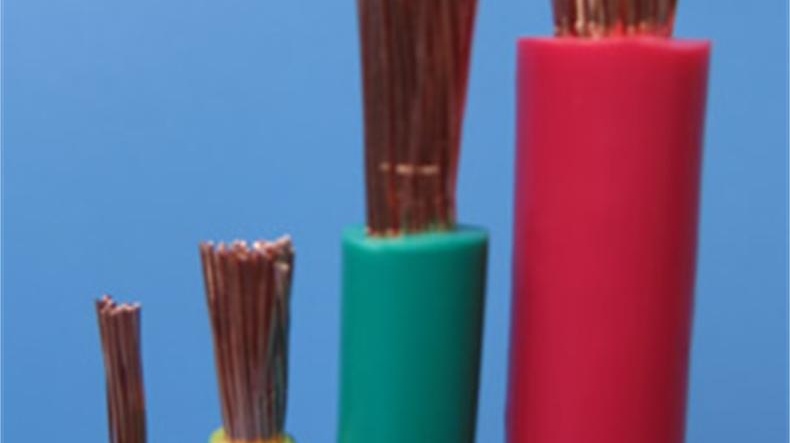

Flexible cu /PVC Insulation (H07V-K)
Without Nylon Jacket (THW)
With Nylon Jacket (THHN)

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

The cables/wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution. They are installed in surface mounted or embedded conduits or similar closed systems and for fixed protection, and on lighting fittings and inside appliances, switchgear and control gear.

Standard IEC 60227 , BS6004, UL1581, UL83

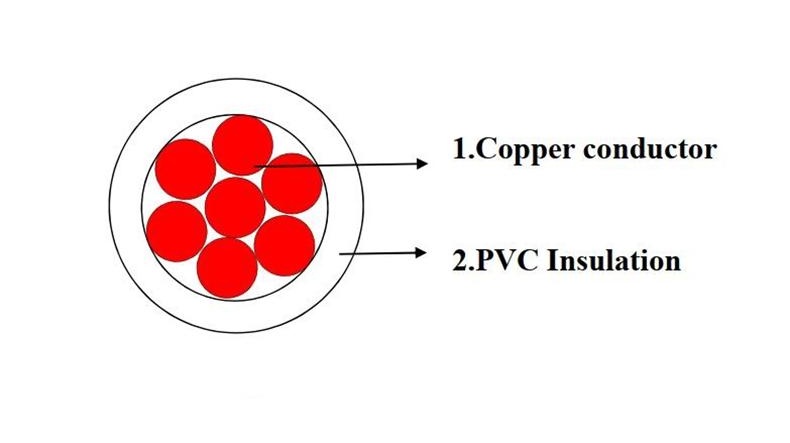

Construction A. Solid cu /PVC Insulation(H07V-U)
B. Stranded cu /PVC Insulation (H07V-R)
C. Flexible cu /PVC Insulation (H07V-K)
D. Without Nylon Jacket (THW)
E. With Nylon Jacket (THHN)

Product Data Sheet

450/750V Solid Cu /PVC Insulation (H07V-U)

Size	Cu conductor		PVC Insulation	Approx. Overall Dia.	Approx. Weight
mm2	Str. No.	Dia.	Nominal Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No.s	mm	mm	mm	kg/km
0.5	1	0.80	0.6	2	8
0.75	1	0.98	0.6	2.2	12
1	1	1.13	0.6	2.3	14
1.5	1	1.38	0.7	2.8	20
2.5	1	1.78	0.8	3.4	32
4	1	2.26	0.8	3.9	48
6	1	2.76	0.8	4.4	67
10	1	3.57	1.0	5.6	111

450/750V Stranded Cu /PVC Insulation (H07V-R)

Size	Cu conductor		PVC Insulation	Approx. Overall Dia.	Approx. Weight
Size	Str. No.	Dia.	Nominal Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No.s	mm	mm	mm	kg/km
1.5	7	1.56	0.7	3	21
2.5	7	2.01	0.8	3.6	33
4	7	2.55	0.8	4.2	49
6	7	3.12	0.8	4.7	68
10	7	4.05	1.0	6.1	114
16	7	5.13	1.0	7.1	175

450/750V Flexible cu /PVC Insulation (H07V-K)

Size	Cu conductor		PVC Insulation	Approx. Overall Dia.	Approx. Weight
mm2	Str. No.	Dia.	Nominal Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No.s	mm	mm	mm	kg/km
1.5	7	1.56	0.7	3	21
2.5	7	2.01	0.8	3.6	33
4	7	2.55	0.8	4.2	49
6	7	3.12	0.8	4.7	68
10	7	4.05	1.0	6.1	114
16	7	5.13	1.0	7.1	175
0.5	≤0.21	0.94	0.6	2.1	10
0.75	≤0.21	1.14	0.6	2.3	12
1	≤0.21	1.34	0.6	2.5	15
1.5	≤0.26	1.6	0.7	3	21
2.5	≤0.26	2.1	0.8	3.7	33
4	≤0.31	2.61	0.8	4.2	49
6	≤0.31	3.97	0.8	5.6	72
10	≤0.41	5.3	1	7.3	126
16	≤0.41	6	1	8	178
25	≤0.41	7.697	1.2	10.1	275

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
