The cable is mainly used in power lines, control lines and signal transmission lines for electrical appliances, instruments, electronic equipment and automation devices.
The cable is mainly used in power lines, control lines and signal transmission lines for electrical appliances, instruments, electronic equipment and automation devices. It can be used in burglar alarm systems, building intercom systems, etc. And it can also be used for connecting small home appliances such as vacuum cleaners, washing machines, refrigerators, etc.
Standard IEC227, BS6004, ANSI

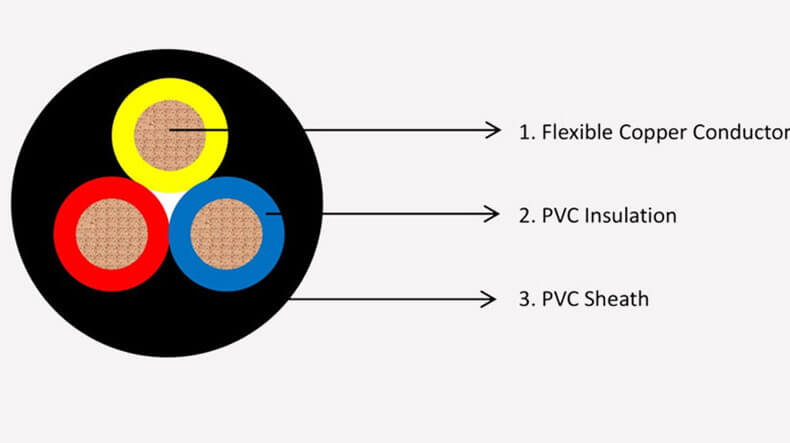

Construction conductor, PVC Insulation, PVC Sheath, LSHF, Flame retardant are both available if required.
| Core No. | Conductor Size | Cu conductor | Insulation | Outer sheath | Overall Dimension | Approx. Weight | ||
| mm2 | Str. No. | Dia. | Nominal Thickness | Thickness | Width | Height | kg/km | |
| 2 | 1.5 | 1 | 1.38 | 0.7 | 0.9 | 7.4 | 4.60 | 63 |
| 2 | 2.5 | 1 | 1.78 | 0.8 | 1.0 | 8.8 | 5.40 | 94 |
| 2 | 4 | 7 | 2.55 | 0.8 | 1.0 | 10.3 | 6.20 | 132 |
| 2 | 6 | 7 | 3.12 | 0.8 | 1.1 | 11.6 | 6.90 | 181 |
| 2 | 10 | 7 | 4.05 | 1.0 | 1.2 | 14.5 | 8.50 | 289 |
| 2 | 16 | 7 | 5.10 | 1.0 | 1.2 | 16.8 | 9.6 | 412 |
| 3 | 1.5 | 1 | 1.38 | 0.7 | 0.9 | 10.1 | 4.60 | 97 |
| 3 | 2.5 | 1 | 1.78 | 0.8 | 1.0 | 12.1 | 5.40 | 149 |
| 3 | 4 | 7 | 2.55 | 0.8 | 1.1 | 14.7 | 6.40 | 220 |
| 3 | 6 | 7 | 3.12 | 0.8 | 1.1 | 16.4 | 6.90 | 298 |
| 3 | 10 | 7 | 4.05 | 1.0 | 1.2 | 20.6 | 8.50 | 486 |
| Core No. | Conductor Size | Cu Conductor | Insulation Nominal Thickness | Outer Sheath Thickness | Approx. Overall Dia. | Approx. Weight | |
| No.s | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 2 | 1.5 | 7 | 1.56 | 0.7 | 1.20 | 9.40 | 89 |
| 2 | 2.5 | 7 | 2.01 | 0.8 | 1.20 | 10.70 | 121 |
| 2 | 4 | 7 | 2.55 | 0.8 | 1.20 | 11.80 | 158 |
| 2 | 6 | 7 | 3.12 | 0.8 | 1.20 | 12.90 | 205 |
| 2 | 10 | 7 | 4.05 | 1.0 | 1.40 | 16.00 | 327 |
| 2 | 16 | 7 | 5.13 | 1.0 | 1.40 | 18.20 | 460 |
| 2 | 25 | 7 | 6.39 | 1.0 | 1.40 | 20.70 | 648 |
| 3 | 1.5 | 7 | 1.56 | 0.7 | 1.20 | 9.90 | 113 |
| 3 | 2.5 | 7 | 2.01 | 0.8 | 1.20 | 11.30 | 157 |
| 3 | 4 | 7 | 2.55 | 0.8 | 1.20 | 12.50 | 211 |
| 3 | 6 | 7 | 3.12 | 0.8 | 1.40 | 14.10 | 290 |
| 3 | 10 | 7 | 4.05 | 1.0 | 1.40 | 17.00 | 447 |
| 3 | 16 | 7 | 5.13 | 1.0 | 1.40 | 19.30 | 641 |
| 3 | 25 | 7 | 6.39 | 1.0 | 1.60 | 22.50 | 936 |
| 4 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 10.7 | 138 |
| 4 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 12.2 | 196 |
| 4 | 4 | 7 | 2.55 | 0.8 | 1.4 | 14 | 278 |
| 4 | 6 | 7 | 3.12 | 0.8 | 1.4 | 15.3 | 367 |
| 4 | 10 | 7 | 4.05 | 1 | 1.4 | 18.6 | 572 |
| 4 | 16 | 7 | 5.13 | 1 | 1.4 | 21.2 | 827 |
| 4 | 25 | 7 | 6.39 | 1 | 1.6 | 24.7 | 1212 |
| 5 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 11.6 | 165 |
| 5 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 13.4 | 235 |
| 5 | 4 | 7 | 2.55 | 0.8 | 1.4 | 15.2 | 336 |
| 5 | 6 | 7 | 3.12 | 0.8 | 1.4 | 16.8 | 445 |
| 5 | 10 | 7 | 4.05 | 1 | 1.4 | 20.4 | 699 |
| 5 | 16 | 7 | 5.13 | 1 | 1.6 | 23.8 | 1037 |
| 5 | 25 | 7 | 6.39 | 1 | 1.6 | 27.2 | 1490 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
