Cat6 – Network Cable is to use the electromagnetic field generated by the current in the copper wires to offset the interference of adjacent lines and reduce interference from the outside world.
Standards & References: UL444，UL1581;
Rated temperature: 60℃,75℃,90℃;

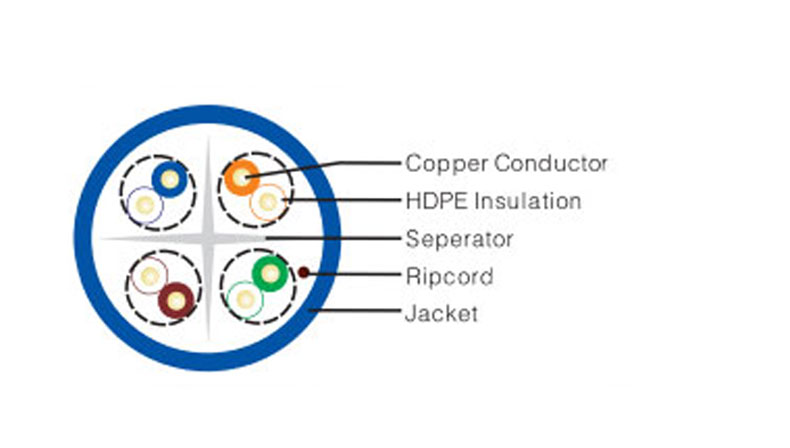

Construction:
Conductor: Bare Solid Copper
Insulation: HDPE
Seperator: Cross Keel
Ripcord: PP rope
Outer jacket：PVC，PE or LSOH
Packing: Drum, Box.
| Frequency | Impedance | RL | Attenuation | Delay Skew | Propagation |
| Mhz | ohm | ≥dB | ≤dB/100m | ns/100m | Speed |
| ≤m/s | |||||
| 1 | 100±15 | 20 | 1.9 | ≤45 | 0.6c |
| 4 | 100±15 | 23 | 3.7 | ≤45 | 0.6c |
| 10 | 100±15 | 25 | 5.9 | ≤45 | 0.6c |
| 16 | 100±15 | 25 | 7.5 | ≤45 | 0.6c |
| 20 | 100±15 | 25 | 8.4 | ≤45 | 0.6c |
| 31.25 | 100±15 | 23.6 | 10.6 | ≤45 | 0.6c |
| 62.5 | 100±15 | 21.5 | 15.4 | ≤45 | 0.6c |
| 100 | 100±15 | 20.1 | 19.8 | ≤45 | 0.6c |
| 155 | 100±15 | 18.8 | 25.1 | ≤45 | 0.6c |
| 200 | 100±15 | 18 | 29 | ≤45 | 0.6c |
| 250 | 100±15 | 17.3 | 32.8 | ≤45 | 0.6c |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
