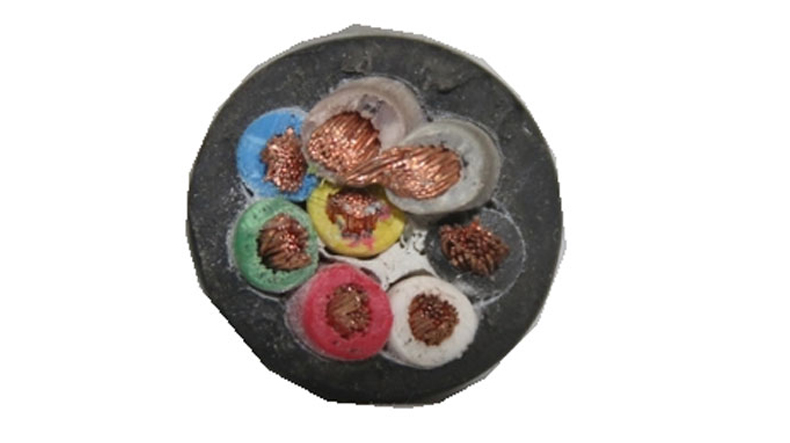

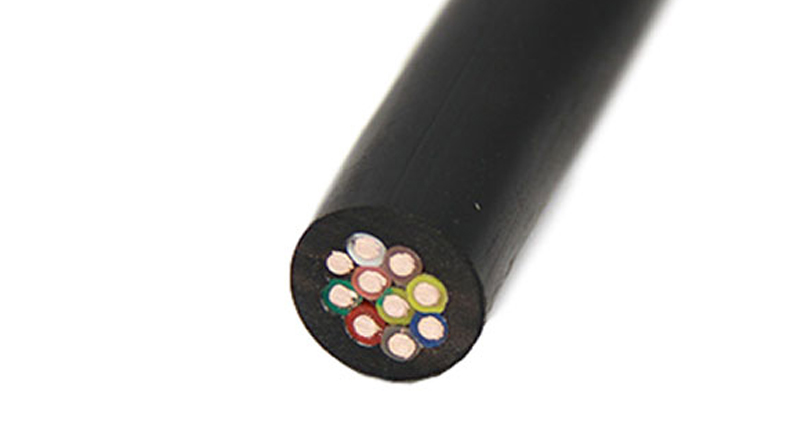

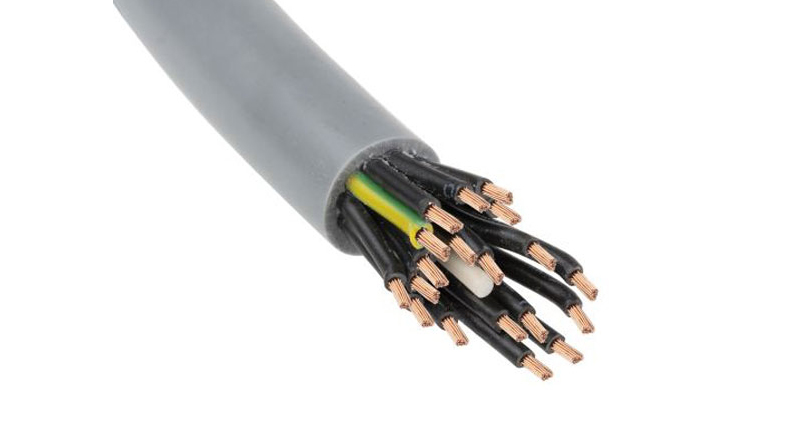

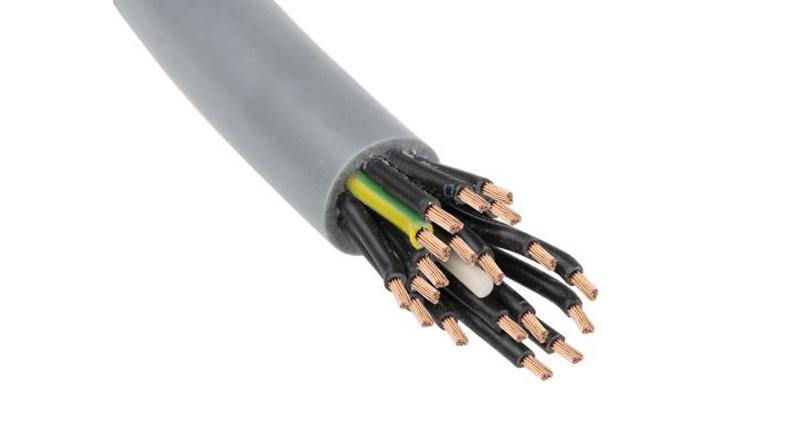

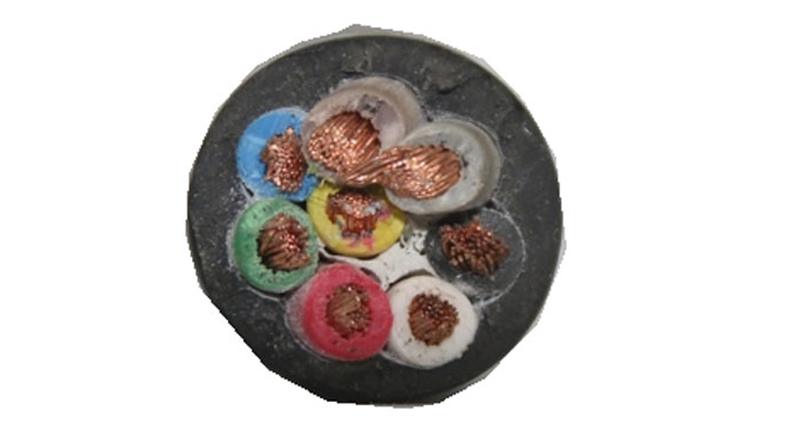

YY control cable is a type of cable designed for industrial control applications. It’s commonly used in machinery, production lines, and other automated systems where reliable transmission of control signals is required
Description: YY control cable is a type of cable designed for industrial control applications. It's commonly used in machinery, production lines, and other automated systems where reliable transmission of control signals is required
Voltage: 300/500V;

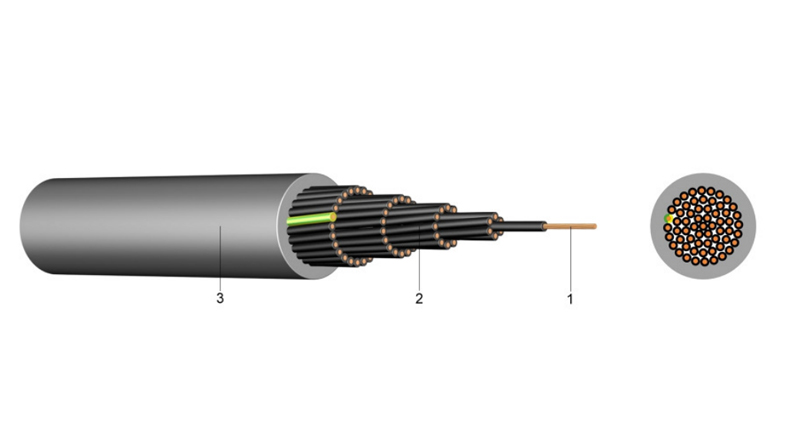

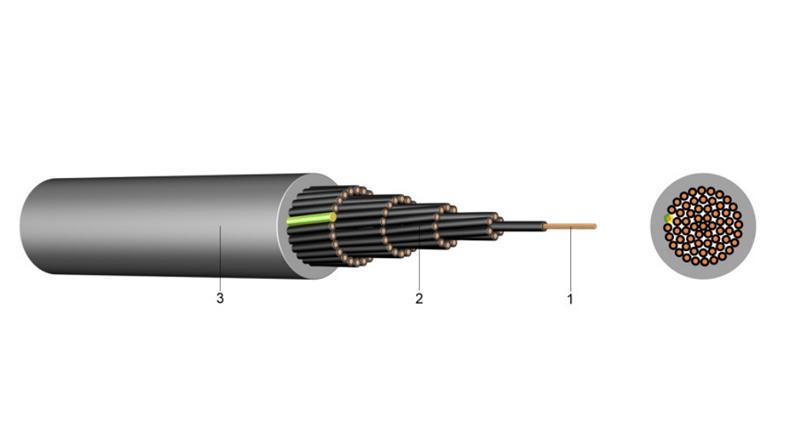

Construction: Copper/PVC/PVC;
Feature: Flame retardant; Fire resistant;
Application: In dry and damp locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and machinery.
| Number of cores and nominalcross section mm2 | Copper figure kg/km | Cond.construction (appr. value) mm | Overall diameter appr. mm | Weight appr.kg / km |
| 4 x 0,5 | 20,0 | 16 x 0,21 | 5,7 | 49 |
| 5 x 0,5 | 25,0 | 16 x 0,21 | 6,2 | 60 |
| 7 x 0,5 * | 35,0 | 16 x 0,21 | 6,7 | 77 |
| 10 x 0,5 | 50,0 | 16 x 0,21 | 8,6 | 114 |
| 12 x 0,5 | 60,0 | 16 x 0,21 | 8,9 | 128 |
| 14 x 0,5 | 70,0 | 16 x 0,21 | 9,5 | 149 |
| 16 x 0,5 | 80,0 | 16 x 0,21 | 10,0 | 164 |
| 18 x 0,5 | 90,0 | 16 x 0,21 | 10,5 | 185 |
| 21 x 0,5 | 105,0 | 16 x 0,21 | 11,7 | 219 |
| 25 x 0,5 | 125,0 | 16 x 0,21 | 12,6 | 256 |
| 30 x 0,5 | 150,0 | 16 x 0,21 | 13,5 | 310 |
| 34 x 0,5 | 1700,0 | 16 x 0,21 | 14,3 | 331 |
| 40 x 0,5 | 200,0 | 16 x 0,21 | 15,2 | 409 |
| 50 x 0,5 | 250,0 | 16 x 0,21 | 17,2 | 510 |
| 61 x 0,5 | 305,0 | 16 x 0,21 | 18,5 | 595 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
