CY control cable is a type of flexible control cable designed for various industrial applications where mechanical stress and moderate mechanical loads are expected.
Description: YSLCY control cable is a type of flexible control cable designed for various industrial applications where mechanical stress and moderate mechanical loads are expected.
Voltage: 300/500V;

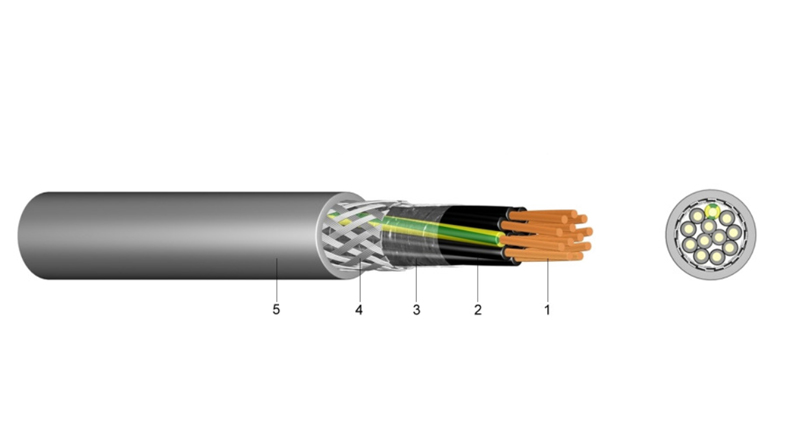

Construction: Copper/PVC/PET/TCWB/PVC;
Feature: High Flexibility; UV Resistance; High Temperature Resistance;
Application: CY cables for instrumentation and control equipment, for tooling machinery production lines and, in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. These cables are not used for outdoor or underground installation.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA (mm2) | NOMINAL THICKNESS OF INSULATION (mm) | NOMINAL THICKNESS OF OUTER SHEATH (mm) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT(kg/km) |
| 2 | 0.5 | 0.4 | 0.8 | 5.4 | 41 |
| 2 | 0.75 | 0.4 | 0.9 | 6. 1 | 52 |
| 2 | 1 | 0.4 | 0.9 | 6.5 | 60 |
| 2 | 1.5 | 0.4 | 0.9 | 7.1 | 74 |
| 3 | 0.5 | 0.4 | 0.8 | 5.8 | 51 |
| 3 | 0.75 | 0.4 | 0.9 | 6.4 | 65 |
| 3 | 1 | 0.4 | 0.9 | 6.8 | 76 |
| 3 | 1.5 | 0.4 | 0.9 | 7.5 | 98 |
| 3 | 2.5 | 0.5 | 1 | 9 | 146 |
| 4 | 0.5 | 0.4 | 0.8 | 6.2 | 64 |
| 4 | 0.75 | 0.4 | 0.9 | 6.9 | 82 |
| 4 | 1 | 0.4 | 0.9 | 7.4 | 96 |
| 4 | 1.5 | 0.4 | 0.9 | 8.1 | 122 |
| 4 | 2.5 | 0.5 | 1. 1 | 10 | 190 |
| 4 | 4 | 0.6 | 1.2 | 11.9 | 283 |
| 4 | 6 | 0.65 | 1.3 | 13.5 | 386 |
| 4 | 10 | 0.75 | 1.5 | 17.1 | 630 |
| 4 | 16 | 0.75 | 1.6 | 20.4 | 910 |
| 4 | 25 | 0.9 | 1.8 | 24.4 | 1364 |
| 4 | 35 | 0.95 | 1.9 | 28 | 1814 |
| 5 | 0.5 | 0.4 | 0.8 | 6.7 | 77 |
| 5 | 0.75 | 0.4 | 0.9 | 7.4 | 97 |
| 5 | 1 | 0.4 | 0.9 | 8 | 116 |
| 5 | 1.5 | 0.4 | 1 | 9 | 152 |
| 5 | 2.5 | 0.5 | 1. 1 | 10.8 | 228 |
| 5 | 4 | 0.6 | 1.2 | 12.9 | 332 |
| 5 | 6 | 0.65 | 1.3 | 14.8 | 457 |
| 5 | 10 | 0.75 | 1.5 | 18.7 | 749 |
| 5 | 16 | 0.75 | 1.7 | 22.6 | 1125 |
| 5 | 25 | 0.9 | 1.9 | 27 | 1683 |
| 7 | 0.5 | 0.4 | 0.8 | 7.2 | 93 |
| 7 | 0.75 | 0.4 | 0.9 | 8 | 121 |
| 7 | 1 | 0.4 | 1 | 8.8 | 148 |
| 7 | 1.5 | 0.4 | 1 | 9.7 | 191 |
| 7 | 2.5 | 0.5 | 1.1 | 11.7 | 290 |
| 12 | 0.5 | 0.4 | 1 | 9.6 | 154 |
| 12 | 0.75 | 0.4 | 1 | 10.4 | 193 |
| 12 | 1 | 0.4 | 1.1 | 11.4 | 236 |
| 12 | 1.5 | 0.4 | 1.2 | 12.9 | 315 |
| 18 | 0.75 | 0.4 | 1.2 | 12.4 | 281 |
| 18 | 1 | 0.4 | 1.2 | 13.4 | 339 |
| 18 | 1.5 | 0.4 | 1.3 | 15.1 | 452 |
| 25 | 0.75 | 0.4 | 1.3 | 14.8 | 331 |
| 25 | 1 | 0.4 | 1.3 | 16 | 461 |
| 25 | 1.5 | 0.4 | 1.4 | 18. 1 | 616 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
