Electric Equipment Control Cables

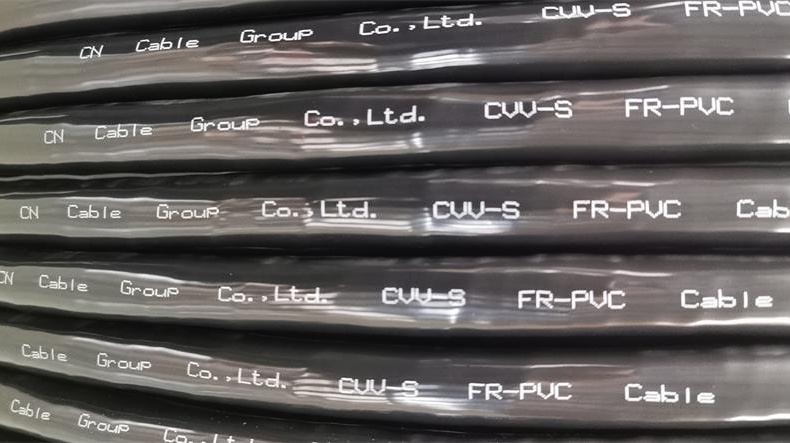

CVV-S CAABLE is a type of control cable . CVV-S cable is Suitable for the interconnection in controlling, protecting and measuring system.
Standard GB/T9330 ， IEC60502-1

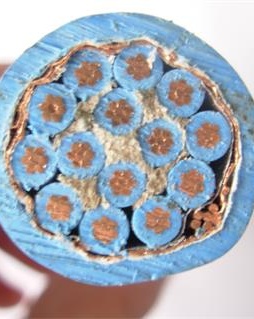

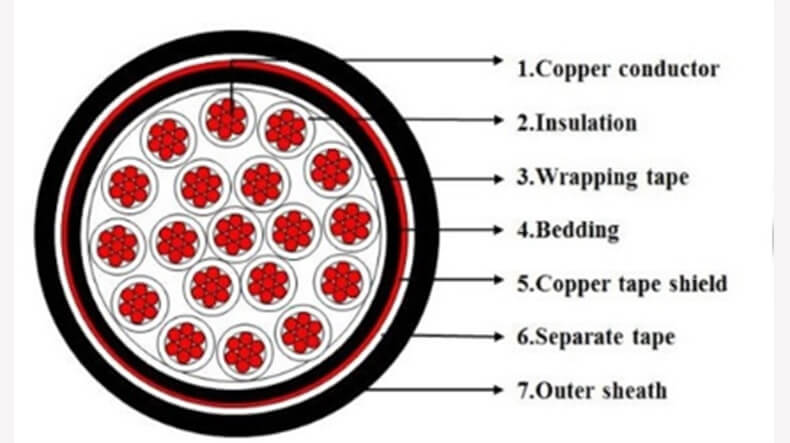

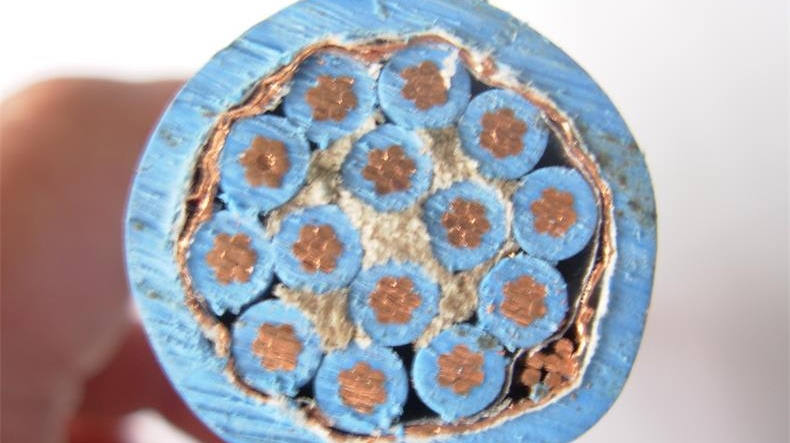

Construction Conductor: Solid or Stranded Copper Conductor
Insulation: PVC/XLPE/Rubber//Silicon
Filler (if any) : PP Rope
Wrapping tape: PP Tape 0.05mm
Inner jacket (optional): PVC

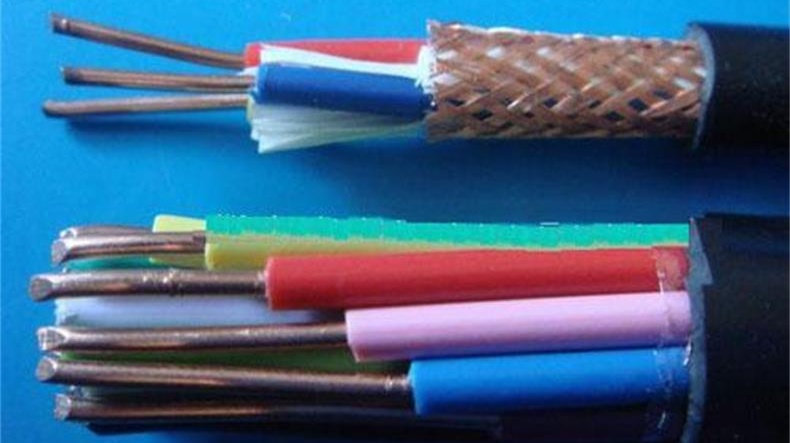

Shield: Copper Tape /Copper Wire/Al Foil/Cu Foil
Separate tape (if any) : PP Tape or Non-woven
clothing tape 0.05mm
Outer jacket: PVC / PE
Other characters: Flame retardant, Fire resistant,
Oil-resistant , LSHF, etc.

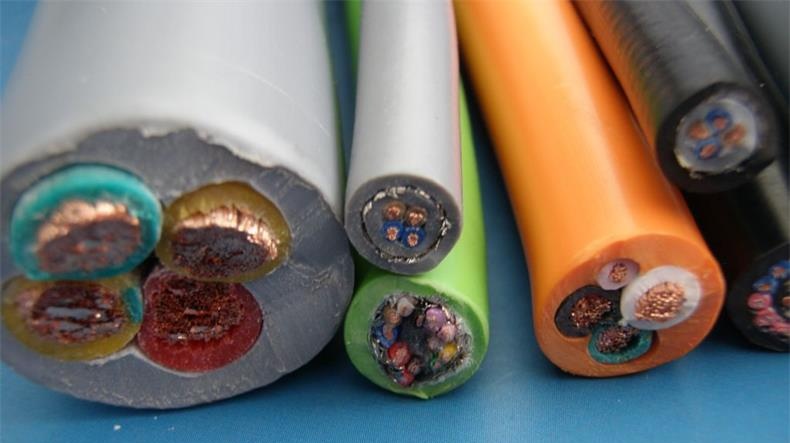

| Type | Characteristic |
| PVC Insulated Control Cables | Operation temperature 70℃ |
| XLPE Insulated Control Cables | Operation temperature 90℃ |
| Rubber Insulated Control Cables | Operation temperature 70℃ |
| Silicon Insulated Control Cables | Operation temperature 180℃ |
| Type | Characteristic |
| Copper Tape Shielded Control Cables | Better shielding effect and lower cost |
| Copper Wire Braiding Shielded Control Cables | Larger current carrying capacity, better anti-overload resistance in short circuit |
| Copper conductor, PVC Insulation PVC Sheath ,Control Cable | ||||||
| Cable Size | Conductor | Nominal Insulation thickness | Nominal Jacket thickness | Approx. Overall Dia. | Approx. Cable Weight | |
| Core x Cross-section | Stranding No. | Approx. Stranded Dia. | ||||
| mm2 | pcs | mm | mm | mm | mm | kg/km |
| 2*1.5 | 7 | 1.50 | 0.7 | 1.2 | 8.7 | 86 |
| 3*1.5 | 7 | 1.50 | 0.7 | 1.2 | 9.2 | 110 |
| 4*1.5 | 7 | 1.50 | 0.7 | 1.2 | 10 | 136 |
| 5*1.5 | 7 | 1.50 | 0.7 | 1.2 | 10.8 | 162 |
| 6*1.5 | 7 | 1.50 | 0.7 | 1.2 | 11.7 | 189 |
| 7*1.5 | 7 | 1.50 | 0.7 | 1.2 | 11.7 | 210 |
| 8*1.5 | 7 | 1.50 | 0.7 | 1.2 | 13.1 | 239 |
| 10*1.5 | 7 | 1.50 | 0.7 | 1.5 | 15.4 | 313 |
| 12*1.5 | 7 | 1.50 | 0.7 | 1.5 | 15.8 | 358 |
| 14*1.5 | 7 | 1.50 | 0.7 | 1.5 | 16.6 | 407 |
| 16*1.5 | 7 | 1.50 | 0.7 | 1.5 | 17.5 | 456 |
| 19*1.5 | 7 | 1.50 | 0.7 | 1.5 | 18.4 | 526 |
| 24*1.5 | 7 | 1.50 | 0.7 | 1.7 | 21.8 | 674 |
| 27*1.5 | 7 | 1.50 | 0.7 | 1.7 | 22.3 | 742 |
| 30*1.5 | 7 | 1.50 | 0.7 | 1.7 | 23.1 | 813 |
| 37*1.5 | 7 | 1.50 | 0.7 | 1.7 | 24.9 | 977 |
| 44*1.5 | 7 | 1.50 | 0.7 | 1.7 | 27.9 | 1151 |
| 48*1.5 | 7 | 1.50 | 0.7 | 1.7 | 28.4 | 1241 |
| 52*1.5 | 7 | 2.0 | 0.7 | 1.7 | 29.2 | 1333 |
| 61*1.5 | 7 | 2.0 | 0.7 | 2 | 31.6 | 1582 |
| 2*2.5 | 7 | 2.0 | 0.8 | 1.2 | 10 | 128 |
| 3*2.5 | 7 | 2.0 | 0.8 | 1.2 | 10.6 | 164 |
| 4*2.5 | 7 | 2.0 | 0.8 | 1.2 | 11.5 | 203 |
| 5*2.5 | 7 | 2.0 | 0.8 | 1.2 | 12.6 | 246 |
| 6*2.5 | 7 | 2.0 | 0.8 | 1.5 | 14.3 | 309 |
| 7*2.5 | 7 | 2.0 | 0.8 | 1.5 | 14.3 | 325 |
| 8*2.5 | 7 | 2.0 | 0.8 | 1.5 | 15.9 | 391 |
| 10*2.5 | 7 | 2.0 | 0.8 | 1.5 | 18 | 463 |
| 12*2.5 | 7 | 2.0 | 0.8 | 1.5 | 18.6 | 533 |
| 14*2.5 | 7 | 2.0 | 0.8 | 1.5 | 19.5 | 597 |
| 16*2.5 | 7 | 2.0 | 0.8 | 1.7 | 20.9 | 690 |
| 19*2.5 | 7 | 2.0 | 0.8 | 1.7 | 22.1 | 800 |
| 24*2.5 | 7 | 2.0 | 0.8 | 1.7 | 25.7 | 997 |
| 27*2.5 | 7 | 2.0 | 0.8 | 1.7 | 26.3 | 1102 |
| 30*2.5 | 7 | 2.0 | 0.8 | 1.7 | 27.3 | 1211 |
| 37*2.5 | 7 | 2.0 | 0.8 | 1.7 | 29.4 | 1462 |
| 44*2.5 | 7 | 2.5 | 0.8 | 2 | 33.7 | 1772 |
| 48*2.5 | 7 | 2.5 | 0.8 | 2 | 34.3 | 1912 |
| 52*2.5 | 7 | 2.5 | 0.8 | 2 | 35.2 | 2054 |
| 61*2.5 | 7 | 2.5 | 0.8 | 2.2 | 37.8 | 2411 |
| 2*4 | 7 | 2.5 | 0.8 | 1.2 | 11.1 | 170 |
| 3*4 | 7 | 2.5 | 0.8 | 1.2 | 11.7 | 220 |
| 4*4 | 7 | 2.5 | 0.8 | 1.2 | 12.8 | 277 |
| 5*4 | 7 | 2.5 | 0.8 | 1.5 | 14.6 | 356 |
| 6*4 | 7 | 2.5 | 0.8 | 1.5 | 15.9 | 420 |
| 7*4 | 7 | 2.5 | 0.8 | 1.5 | 15.9 | 447 |
| 8*4 | 7 | 2.5 | 0.8 | 1.5 | 17.8 | 538 |
| 10*4 | 7 | 2.5 | 0.8 | 1.5 | 20.1 | 640 |
| 12*4 | 7 | 2.5 | 0.8 | 1.7 | 21.2 | 760 |
| 14*4 | 7 | 2.5 | 0.8 | 1.7 | 22.3 | 855 |
| 16*4 | 7 | 2.5 | 0.8 | 1.7 | 23.5 | 964 |
| 19*4 | 7 | 2.5 | 0.8 | 1.7 | 24.8 | 1122 |
| 24*4 | 7 | 2.5 | 0.8 | 1.7 | 29 | 1402 |
| 27*4 | 7 | 2.5 | 0.8 | 1.7 | 29.6 | 1555 |
| 30*4 | 7 | 2.55 | 0.8 | 2 | 31.3 | 1754 |
| 37*4 | 7 | 2.55 | 0.8 | 2 | 33.8 | 2123 |
| 44*4 | 7 | 2.55 | 0.8 | 2.2 | 38.4 | 2542 |
| 48*4 | 7 | 2.55 | 0.8 | 2.2 | 39.1 | 2747 |
| 52*4 | 7 | 2.55 | 0.8 | 2.2 | 40.2 | 2955 |
| 61*4 | 7 | 2.55 | 0.8 | 2.2 | 42.7 | 3425 |
| Copper conductor, PVC Insulation PVC Sheath ,Copper Tape Shielded Control Cable | |||||||
| Cable Size | Conductor | Nominal Insulation thickness | Copper Tape Thickness Min. | Nominal Jacket thickness | Approx. Overall Dia. | Approx. Cable Weight | |
| Core x Cross-section | Stranding No. | Approx. Stranded Dia. | |||||
| mm2 | pcs | mm | mm | mm | mm | mm | kg/km |
| 4*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 12.7 | 218 |
| 5*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 13.5 | 250 |
| 6*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 14.4 | 284 |
| 7*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 14.4 | 305 |
| 8*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 16.4 | 367 |
| 10*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 18.1 | 434 |
| 12*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 18.5 | 483 |
| 14*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 19.3 | 537 |
| 16*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 20.2 | 593 |
| 19*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 21.1 | 670 |
| 24*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 24.5 | 843 |
| 27*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 25.0 | 915 |
| 30*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 25.8 | 991 |
| 37*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 27.6 | 1169 |
| 44*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 30.6 | 1365 |
| 48*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 31.1 | 1458 |
| 52*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 31.9 | 1556 |
| 61*1.5 | 7 | 1.50 | 0.7 | 0.05 | 2.0 | 34.3 | 1823 |
| 4*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.2 | 14.2 | 297 |
| 5*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.2 | 15.3 | 348 |
| 6*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 17.0 | 422 |
| 7*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 17.0 | 439 |
| 8*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 18.6 | 517 |
| 10*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 20.7 | 604 |
| 12*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 21.3 | 678 |
| 14*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 22.2 | 749 |
| 16*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 23.6 | 852 |
| 19*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 24.8 | 971 |
| 24*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 28.4 | 1194 |
| 27*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 29.0 | 1304 |
| 30*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 30.0 | 1420 |
| 37*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 32.1 | 1687 |
| 44*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.0 | 36.4 | 2028 |
| 48*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.0 | 37.0 | 2172 |
| 52*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.0 | 37.9 | 2322 |
| 61*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.2 | 40.5 | 2697 |
| 4*4 | 7 | 2.5 | 0.8 | 0.05 | 1.2 | 15.5 | 380 |
| 5*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 17.3 | 471 |
| 6*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 18.6 | 545 |
| 7*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 18.6 | 573 |
| 8*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 20.5 | 678 |
| 10*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 23.2 | 817 |
| 12*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 23.9 | 924 |
| 14*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 25.0 | 1028 |
| 16*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 26.2 | 1145 |
| 19*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 27.5 | 1313 |
| 24*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 31.7 | 1624 |
| 27*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 32.3 | 1782 |
| 30*4 | 7 | 2.5 | 0.8 | 0.05 | 2.0 | 34.0 | 1993 |
| 37*4 | 7 | 2.5 | 0.8 | 0.05 | 2.0 | 36.5 | 2380 |
| 44*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 41.1 | 2833 |
| 48*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 41.8 | 3042 |
| 52*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 42.9 | 3259 |
| 61*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 45.4 | 3747 |
