Control Cable

Electric Equipment Control Cables

  • Application Suitable for the interconnection in controlling, protecting and measuring system.
  • Standard GB/T9330 ， IEC60502
  • Construction Solid or Stranded or Flexible copper conductor /  PVC or XLPE or Rubber Insulation  / Jacket: Plastic Materials.

Request a Quote Leave Message
Description Product Data Sheet Packaging & Delivery FAQ

Application

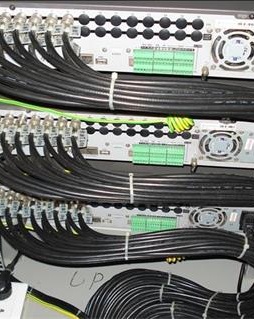

Suitable for the interconnection in controlling, protecting and measuring system.

Standard  GB/T9330 ， IEC60502

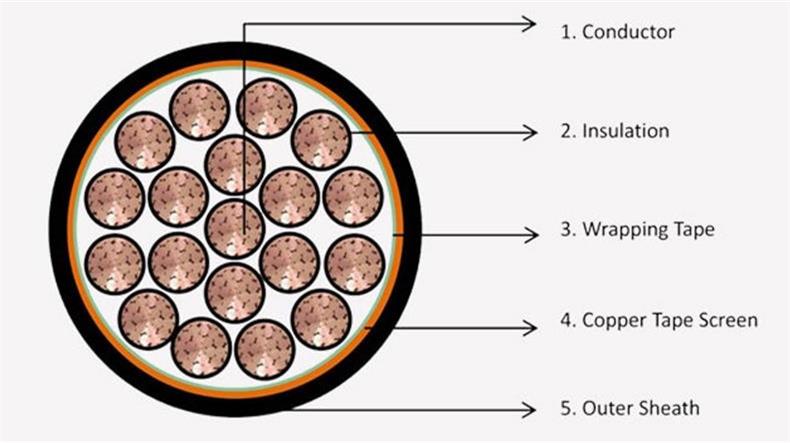

Construction Solid or Stranded or Flexible copper conductor /  PVC or XLPE or Rubber Insulation  / Jacket: Plastic Materials

Product Data Sheet

TABLE1  PVC/XLPE Insulation, PVC Sheath Control cable
Conductor Size (mm2) Insulation thickness (mm) Outer sheath thickness

(mm)

 Approx. Cable dia. (mm) Approx. Cable weight (kg/km) Conductor Size (mm2) Insulation thickness (mm) Outer sheath thickness

(mm)

 Approx. Cable dia. (mm) Approx. Cable weight (kg/km)
Core no. x cross-section PVC XLPE PVC XLPE PVC XLPE Core no. x cross-section PVC XLPE PVC XLPE PVC XLPE
2*0.75 0.6 0.6 1.2 7.1 7.0 56 52 2*2.5 0.8 0.7 1.2 9.5 9.0 131 109
3*0.75 0.6 0.6 1.2 7.4 7.3 77 64 3*2.5 0.8 0.7 1.2 10.1 9.5 170 138
4*0.75 0.6 0.6 1.2 8.0 7.9 95 77 4*2.5 0.8 0.7 1.2 11.0 10.3 213 172
5*0.75 0.6 0.6 1.2 8.6 8.5 112 90 5*2.5 0.8 0.7 1.2 11.9 11.2 257 206
6*0.75 0.6 0.6 1.2 9.3 9.1 130 103 6*2.5 0.8 0.7 1.5 13.6 12.7 323 259
7*0.75 0.6 0.6 1.2 9.3 9.1 144 113 7*2.5 0.8 0.7 1.5 13.6 12.7 345 272
8*0.75 0.6 0.6 1.2 10.3 10.1 164 128 8*2.5 0.8 0.7 1.5 15.1 14.2 411 329
10*0.75 0.6 0.6 1.2 11.6 11.3 199 154 10*2.5 0.8 0.7 1.5 17.0 15.9 490 387
12*0.75 0.6 0.6 1.2 11.9 11.7 229 176 12*2.5 0.8 0.7 1.5 17.6 16.4 567 445
14*0.75 0.6 0.6 1.2 12.5 12.2 260 198 14*2.5 0.8 0.7 1.5 18.5 17.2 639 497
16*0.75 0.6 0.6 1.5 13.7 13.4 310 238 16*2.5 0.8 0.7 1.5 19.5 18.1 720 559
19*0.75 0.6 0.6 1.5 14.4 14.1 357 272 19*2.5 0.8 0.7 1.7 20.9 19.5 857 666
24*0.75 0.6 0.6 1.5 16.6 16.3 442 336 24*2.5 0.8 0.7 1.7 24.4 22.7 1071 829
27*0.75 0.6 0.6 1.5 17.0 16.6 487 367 27*2.5 0.8 0.7 1.7 24.9 23.2 1186 916
30*0.75 0.6 0.6 1.5 17.6 17.2 533 400 30*2.5 0.8 0.7 1.7 25.8 24.0 1304 1005
37*0.75 0.6 0.6 1.5 18.9 18.5 640 476 37*2.5 0.8 0.7 1.7 27.8 25.9 1579 1213
44*0.75 0.6 0.6 1.7 21.5 21.0 773 577 44*2.5 0.8 0.7 2.0 31.9 29.6 1910 1471
48*0.75 0.6 0.6 1.7 21.9 21.4 832 619 48*2.5 0.8 0.7 2.0 32.4 30.1 2062 1586
52*0.75 0.6 0.6 1.7 22.4 21.9 892 661 52*2.5 0.8 0.7 2.0 33.3 30.9 2219 1703
61*0.75 0.6 0.6 1.7 23.8 23.2 1029 758 61*2.5 0.8 0.7 2.2 35.7 33.2 2603 1999
2*1.0 0.6 0.6 1.2 7.4 7.3 69 59 2*4 0.8 0.7 1.2 10.5 9.9 172 146
3*1.0 0.6 0.6 1.2 7.8 7.6 88 73 3*4 0.8 0.7 1.2 11.1 10.5 226 189
4*1.0 0.6 0.6 1.2 8.4 8.2 109 89 4*4 0.8 0.7 1.2 12.1 11.4 286 238
5*1.0 0.6 0.6 1.2 9.1 8.9 130 105 5*4 0.8 0.7 1.5 13.8 13.1 367 306
6*1.0 0.6 0.6 1.2 9.8 9.6 151 121 6*4 0.8 0.7 1.5 15.0 14.2 433 360
7*1.0 0.6 0.6 1.2 9.8 9.6 167 133 7*4 0.8 0.7 1.5 15.0 14.2 467 383
8*1.0 0.6 0.6 1.2 10.8 10.6 190 151 8*4 0.8 0.7 1.5 16.8 15.8 558 461
10*1.0 0.6 0.6 1.2 12.2 11.9 232 182 10*4 0.8 0.7 1.5 18.9 17.8 667 547
12*1.0 0.6 0.6 1.2 12.5 12.3 267 209 12*4 0.8 0.7 1.5 19.5 18.4 775 633
14*1.0 0.6 0.6 1.5 13.7 13.5 323 255 14*4 0.8 0.7 1.7 20.9 19.7 897 731
16*1.0 0.6 0.6 1.5 14.4 14.2 362 284 16*4 0.8 0.7 1.7 22.1 20.8 1013 823
19*1.0 0.6 0.6 1.5 15.2 14.9 418 325 19*4 0.8 0.7 1.7 23.3 21.9 1182 958
24*1.0 0.6 0.6 1.5 17.5 17.2 519 402 24*4 0.8 0.7 1.7 27.2 25.5 1479 1196
27*1.0 0.6 0.6 1.5 17.9 17.5 572 441 27*4 0.8 0.7 1.7 27.8 26.0 1643 1326
30*1.0 0.6 0.6 1.5 18.5 18.1 627 481 30*4 0.8 0.7 1.7 28.8 27.0 1810 1459
37*1.0 0.6 0.6 1.7 20.3 19.9 774 594 37*4 0.8 0.7 2.0 31.7 29.8 2243 1811
44*1.0 0.6 0.6 1.7 22.7 22.2 911 697 44*4 0.8 0.7 2.2 36.0 33.8 2684 2168
48*1.0 0.6 0.6 1.7 23.1 22.6 982 749 48*4 0.8 0.7 2.2 36.6 34.3 2903 2341
52*1.0 0.6 0.6 1.7 23.7 23.2 1054 802 52*4 0.8 0.7 2.2 37.7 35.3 3126 2519
61*1.0 0.6 0.6 1.7 25.1 24.6 1217 922 61*4 0.8 0.7 2.2 40.0 37.5 3628 2918
2*1.5 0.7 0.6 1.2 8.3 7.8 88 72 2*6 0.8 0.7 1.2 11.5 10.9 223 193
3*1.5 0.7 0.6 1.2 8.8 8.2 114 91 3*6 0.8 0.7 1.2 12.2 11.6 298 256
4*1.5 0.7 0.6 1.2 9.5 8.8 142 112 4*6 0.8 0.7 1.5 13.9 13.3 399 342
5*1.5 0.7 0.6 1.2 10.3 9.6 170 133 5*6 0.8 0.7 1.5 15.2 14.4 486 415
6*1.5 0.7 0.6 1.2 11.2 10.3 199 154 6*6 0.8 0.7 1.5 16.5 15.7 574 490
7*1.5 0.7 0.6 1.2 11.2 10.3 223 171 7*6 0.8 0.7 1.5 16.5 15.7 625 528
8*1.5 0.7 0.6 1.2 12.5 11.5 254 195 8*6 0.8 0.7 1.5 18.5 17.6 744 633
10*1.5 0.7 0.6 1.5 14.6 13.5 330 255 10*6 0.8 0.7 1.7 21.4 20.2 914 774
12*1.5 0.7 0.6 1.5 15.1 13.9 381 292 12*6 0.8 0.7 1.7 22.1 20.9 1065 899
14*1.5 0.7 0.6 1.5 15.8 14.6 433 331 14*6 0.8 0.7 1.7 23.2 21.9 1209 1016
16*1.5 0.7 0.6 1.5 16.6 15.3 486 370 16*6 0.8 0.7 1.7 24.5 23.2 1368 1148
19*1.5 0.7 0.6 1.5 17.5 16.1 564 427 19*6 0.8 0.7 1.7 25.8 24.4 1600 1341
24*1.5 0.7 0.6 1.7 20.8 19.1 721 547 24*6 0.8 0.7 2.0 30.8 29.2 2048 1719
27*1.5 0.7 0.6 1.7 21.2 19.5 796 602 27*6 0.8 0.7 2.0 31.5 29.8 2276 1907
30*1.5 0.7 0.6 1.7 21.9 20.1 872 657 30*6 0.8 0.7 2.0 32.7 30.9 2510 2100
37*1.5 0.7 0.6 1.7 23.6 21.7 1052 789 37*6 0.8 0.7 2.2 35.7 33.7 3085 2580
44*1.5 0.7 0.6 1.7 26.5 24.2 1241 928 44*6 0.8 0.7 2.2 40.1 37.9 3649 3050
48*1.5 0.7 0.6 1.7 26.9 24.6 1338 999 48*6 0.8 0.7 2.2 40.8 38.5 3952 3300
52*1.5 0.7 0.6 1.7 27.7 25.3 1440 1073 52*6 0.8 0.7 2.2 41.9 39.6 4260 3555
61*1.5 0.7 0.6 1.7 29.3 26.8 1665 1238 61*6 0.8 0.7 2.2 44.6 42.0 4954 4129



TABLE2  PVC/XLPE Insulation, PVC Sheath, Steel tape Armored Control cable
Conductor Size (mm2) Insulation thickness (mm) Bedding sheath thickness
(mm)		 Steel tape armor thickness

(mm)

 Outer sheath thickness
(mm)		 Approx. Cable dia. (mm) Approx. Cable weight (kg/km) Conductor Size (mm2) Insulation thickness (mm) Bedding sheath thickness
(mm)		 Steel tape armor thickness

(mm)

 Outer sheath thickness
(mm)		 Approx. Cable dia. (mm) Approx. Cable weight (kg/km)
Core no. x cross-section PVC XLPE PVC XLPE PVC XLPE Core no. x cross-section PVC XLPE PVC XLPE PVC XLPE
7*0.75 0.6 0.6 1.0 0.2 1.5 12.5 12.5 256 246 7*2.5 0.8 0.7 1.0 0.2 1.5 16.4 15.5 476 428
8*0.75 0.6 0.6 1.0 0.2 1.5 13.7 13.5 290 274 8*2.5 0.8 0.7 1.0 0.2 1.5 17.9 17.0 554 503
10*0.75 0.6 0.6 1.0 0.2 1.5 15.0 14.7 337 316 10*2.5 0.8 0.7 1.0 0.2 1.7 20.2 19.1 664 599
12*0.75 0.6 0.6 1.0 0.2 1.5 15.3 15.1 365 343 12*2.5 0.8 0.7 1.0 0.2 1.7 20.8 19.6 738 662
14*0.75 0.6 0.6 1.0 0.2 1.5 15.9 15.6 399 372 14*2.5 0.8 0.7 1.0 0.2 1.7 21.7 20.4 811 725
16*0.75 0.6 0.6 1.0 0.2 1.5 16.5 16.2 433 402 16*2.5 0.8 0.7 1.0 0.2 1.7 22.7 21.3 895 798
19*0.75 0.6 0.6 1.0 0.2 1.5 17.2 16.9 480 445 19*2.5 0.8 0.7 1.0 0.2 1.7 23.7 22.3 1010 901
24*0.75 0.6 0.6 1.0 0.2 1.5 19.4 19.1 577 535 24*2.5 0.8 0.7 1.2 0.2 1.7 27.6 25.9 1269 1130
27*0.75 0.6 0.6 1.0 0.2 1.7 20.2 19.8 636 587 27*2.5 0.8 0.7 1.2 0.2 1.7 28.1 26.4 1375 1224
30*0.75 0.6 0.6 1.0 0.2 1.7 20.8 20.4 682 628 30*2.5 0.8 0.7 1.2 0.2 1.7 29.0 27.2 1490 1323
37*0.75 0.6 0.6 1.0 0.2 1.7 22.1 21.7 786 721 37*2.5 0.8 0.7 1.2 0.2 2.0 31.6 29.7 1797 1596
44*0.75 0.6 0.6 1.0 0.2 1.7 24.3 23.8 907 830 44*2.5 0.8 0.7 1.2 0.2 2.2 35.5 33.2 2130 1888
48*0.75 0.6 0.6 1.0 0.2 1.7 24.7 24.2 960 876 48*2.5 0.8 0.7 1.2 0.2 2.2 36.0 33.7 2270 2010
52*0.75 0.6 0.6 1.0 0.2 1.7 25.2 24.7 1014 925 52*2.5 0.8 0.7 1.2 0.5 2.2 38.1 35.7 2766 2462
61*0.75 0.6 0.6 1.0 0.2 1.7 26.6 26.0 1143 1037 61*2.5 0.8 0.7 1.2 0.5 2.2 40.1 37.6 3119 2773
7*1.0 0.6 0.6 1.0 0.2 1.5 13.2 13.0 288 273 4*4 0.8 0.7 1.0 0.2 1.5 15.5 14.8 435 401
8*1.0 0.6 0.6 1.0 0.2 1.5 14.2 14.0 321 304 5*4 0.8 0.7 1.0 0.2 1.5 16.6 15.9 505 467
10*1.0 0.6 0.6 1.0 0.2 1.5 15.6 15.3 375 353 6*4 0.8 0.7 1.0 0.2 1.5 17.8 17.0 580 534
12*1.0 0.6 0.6 1.0 0.2 1.5 15.9 15.7 409 385 7*4 0.8 0.7 1.0 0.2 1.5 17.8 17.0 608 557
14*1.0 0.6 0.6 1.0 0.2 1.5 16.5 16.3 448 420 8*4 0.8 0.7 1.0 0.2 1.7 20.0 19.0 732 672
16*1.0 0.6 0.6 1.0 0.2 1.5 17.2 17.0 488 458 10*4 0.8 0.7 1.0 0.2 1.7 22.1 21.0 855 783
19*1.0 0.6 0.6 1.0 0.2 1.5 18.0 17.7 545 508 12*4 0.8 0.7 1.0 0.2 1.7 22.7 21.6 959 877
24*1.0 0.6 0.6 1.0 0.2 1.7 20.7 20.4 676 630 14*4 0.8 0.7 1.0 0.2 1.7 23.7 22.5 1063 968
27*1.0 0.6 0.6 1.0 0.2 1.7 21.1 20.7 726 672 16*4 0.8 0.7 1.0 0.2 1.7 24.9 23.6 1180 1074
30*1.0 0.6 0.6 1.0 0.2 1.7 21.7 21.3 779 721 19*4 0.8 0.7 1.0 0.2 1.7 26.1 24.7 1345 1221
37*1.0 0.6 0.6 1.0 0.2 1.7 23.1 22.7 903 834 24*4 0.8 0.7 1.2 0.2 2.0 31.0 29.3 1732 1573
44*1.0 0.6 0.6 1.0 0.2 1.7 25.5 25.0 1048 964 27*4 0.8 0.7 1.2 0.2 2.0 31.6 29.8 1886 1710
48*1.0 0.6 0.6 1.0 0.2 1.7 25.9 25.4 1111 1020 30*4 0.8 0.7 1.2 0.2 2.0 32.6 30.8 2049 1858
52*1.0 0.6 0.6 1.0 0.2 1.7 26.5 26.0 1178 1081 37*4 0.8 0.7 1.2 0.2 2.0 34.9 33.0 2429 2200
61*1.0 0.6 0.6 1.2 0.2 1.7 28.3 27.8 1360 1248 44*4 0.8 0.7 1.2 0.5 2.2 40.4 38.2 3251 2956
4*1.5 0.7 0.6 1.0 0.2 1.5 12.9 12.2 266 241 48*4 0.8 0.7 1.2 0.5 2.2 41.0 38.7 3459 3140
5*1.5 0.7 0.6 1.0 0.2 1.5 13.7 13.0 302 273 52*4 0.8 0.7 1.2 0.5 2.2 42.1 39.7 3684 3341
6*1.5 0.7 0.6 1.0 0.2 1.5 14.6 13.7 339 303 61*4 0.8 0.7 1.2 0.5 2.2 44.4 41.9 4183 3791
7*1.5 0.7 0.6 1.0 0.2 1.5 14.6 13.7 359 320 4*6 0.8 0.7 1.0 0.2 1.5 16.7 16.1 540 505
8*1.5 0.7 0.6 1.0 0.2 1.5 15.9 14.9 404 360 5*6 0.8 0.7 1.0 0.2 1.5 18.0 17.2 635 591
10*1.5 0.7 0.6 1.0 0.2 1.5 17.4 16.3 473 421 6*6 0.8 0.7 1.0 0.2 1.5 19.3 18.5 732 682
12*1.5 0.7 0.6 1.0 0.2 1.5 17.9 16.7 523 462 7*6 0.8 0.7 1.0 0.2 1.5 19.3 18.5 776 720
14*1.5 0.7 0.6 1.0 0.2 1.5 18.6 17.4 576 510 8*6 0.8 0.7 1.0 0.2 1.7 21.7 20.8 931 866
16*1.5 0.7 0.6 1.0 0.2 1.5 19.4 18.1 632 557 10*6 0.8 0.7 1.0 0.2 1.7 24.2 23.0 1099 1017
19*1.5 0.7 0.6 1.0 0.2 1.7 20.7 19.3 728 641 12*6 0.8 0.7 1.0 0.2 1.7 24.9 23.7 1244 1150
24*1.5 0.7 0.6 1.0 0.2 1.7 23.6 21.9 887 777 14*6 0.8 0.7 1.0 0.2 1.7 26.0 24.7 1387 1279
27*1.5 0.7 0.6 1.0 0.2 1.7 24.0 22.3 955 836 16*6 0.8 0.7 1.2 0.2 1.7 27.7 26.4 1576 1455
30*1.5 0.7 0.6 1.0 0.2 1.7 24.7 22.9 1029 899 19*6 0.8 0.7 1.2 0.2 1.7 29.0 27.6 1804 1664
37*1.5 0.7 0.6 1.0 0.2 1.7 26.4 24.5 1204 1050 24*6 0.8 0.7 1.2 0.2 2.0 34.0 32.4 2277 2100
44*1.5 0.7 0.6 1.2 0.2 2.0 30.3 28.0 1476 1286 27*6 0.8 0.7 1.2 0.2 2.0 34.7 33.0 2493 2296
48*1.5 0.7 0.6 1.2 0.2 2.0 30.7 28.4 1565 1363 30*6 0.8 0.7 1.2 0.5 2.2 37.5 35.7 3095 2859
52*1.5 0.7 0.6 1.2 0.2 2.0 31.5 29.1 1664 1447 37*6 0.8 0.7 1.2 0.5 2.2 40.1 38.1 3649 3365
61*1.5 0.7 0.6 1.2 0.2 2.0 33.1 30.6 1880 1633 44*6 0.8 0.7 1.2 0.5 2.2 44.5 42.3 4264 3932
4*2.5 0.8 0.7 1.0 0.2 1.5 14.4 13.7 351 321 48*6 0.8 0.7 1.2 0.5 2.2 45.2 42.9 4555 4196
5*2.5 0.8 0.7 1.0 0.2 1.5 15.3 14.6 402 367 52*6 0.8 0.7 1.2 0.5 2.5 46.9 44.6 4922 4537
6*2.5 0.8 0.7 1.0 0.2 1.5 16.4 15.5 458 416 61*6 0.8 0.7 1.2 0.5 2.5 49.6 47.0 5618 5169



TABLE3  PVC/XLPE Insulation, PVC Sheath, Steel wire Armored Control cable
Conductor Size (mm2) Insulation thickness (mm) Bedding sheath thickness Steel wire armor thickness Outer sheath thickness Approx. Cable dia. (mm) Approx. Cable weight (kg/km) Conductor Size (mm2) Insulation thickness (mm)



 Bedding sheath thickness Steel wire armor thickness Outer sheath thickness Approx. Cable dia. (mm)





Approx. Cable weight (kg/km)
Core no. x cross-section PVC XLPE (mm) (mm) (mm) PVC XLPE PVC XLPE Core no. x cross-section PVC XLPE (mm) (mm) (mm) PVC XLPE PVC XLPE
7*0.75 0.6 0.60 1.0 0.80 1.5 14.1 14.1 351 341 7*2.5 0.8 0.80 1.0 1.25 1.5 18.6 18.0 721 690
8*0.75 0.6 0.60 1.0 0.80 1.5 15.1 15.1 392 380 8*2.5 0.8 0.80 1.0 1.25 1.7 20.6 19.9 850 814
10*0.75 0.6 0.60 1.0 1.25 1.5 17.2 17.2 561 546 10*2.5 0.8 0.80 1.0 1.60 1.7 23.1 22.3 1094 1050
12*0.75 0.6 0.60 1.0 1.25 1.5 17.6 17.6 598 580 12*2.5 0.8 0.80 1.0 1.60 1.7 23.7 22.8 1180 1129
14*0.75 0.6 0.60 1.0 1.25 1.5 18.1 18.1 637 616 14*2.5 0.8 0.80 1.0 1.60 1.7 24.5 23.6 1264 1206
16*0.75 0.6 0.60 1.0 1.25 1.5 18.7 18.7 677 653 16*2.5 0.8 0.80 1.0 1.60 1.7 25.5 24.5 1374 1309
19*0.75 0.6 0.60 1.0 1.25 1.5 19.4 19.4 740 710 19*2.5 0.8 0.80 1.0 1.60 1.7 26.5 25.5 1517 1440
24*0.75 0.6 0.60 1.0 1.60 1.7 22.7 22.7 1011 974 24*2.5 0.8 0.80 1.2 1.60 2.0 30.9 29.7 1906 1807
27*0.75 0.6 0.60 1.0 1.60 1.7 23.0 23.0 1065 1024 27*2.5 0.8 0.80 1.2 1.60 2.0 31.4 30.2 2026 1917
30*0.75 0.6 0.60 1.0 1.60 1.7 23.6 23.6 1123 1077 30*2.5 0.8 0.80 1.2 1.60 2.0 32.3 31.0 2169 2049
37*0.75 0.6 0.60 1.0 1.60 1.7 24.9 24.9 1252 1195 37*2.5 0.8 0.80 1.2 2.00 2.2 35.5 34.1 2745 2598
44*0.75 0.6 0.60 1.0 1.60 1.7 27.0 27.0 1425 1358 44*2.5 0.8 0.80 1.2 2.00 2.2 38.8 37.2 3153 2981
48*0.75 0.6 0.60 1.0 1.60 1.7 27.4 27.4 1491 1417 48*2.5 0.8 0.80 1.2 2.00 2.2 39.3 37.7 3314 3128
52*0.75 0.6 0.60 1.0 1.60 1.7 27.9 27.9 1559 1480 52*2.5 0.8 0.80 1.2 2.00 2.2 40.2 38.5 3483 3282
61*0.75 0.6 0.60 1.0 1.60 1.7 29.2 29.2 1710 1617 61*2.5 0.8 0.80 1.2 2.00 2.2 42.2 40.4 3881 3648
7*1.0 0.6 0.60 1.0 0.80 1.5 14.6 14.6 384 373 4*4 0.8 0.80 1.0 1.25 1.5 17.8 17.3 666 645
8*1.0 0.6 0.60 1.0 1.25 1.5 16.5 16.5 531 518 5*4 0.8 0.80 1.0 1.25 1.5 18.9 18.4 760 734
10*1.0 0.6 0.60 1.0 1.25 1.5 17.8 17.8 605 589 6*4 0.8 0.80 1.0 1.25 1.7 20.5 19.9 875 843
12*1.0 0.6 0.60 1.0 1.25 1.5 18.2 18.2 648 628 7*4 0.8 0.80 1.0 1.25 1.7 20.5 19.9 904 868
14*1.0 0.6 0.60 1.0 1.25 1.5 18.8 18.8 693 669 8*4 0.8 0.80 1.0 1.60 1.7 22.9 22.2 1146 1105
16*1.0 0.6 0.60 1.0 1.25 1.5 19.5 19.5 750 722 10*4 0.8 0.80 1.0 1.60 1.7 25.0 24.2 1323 1273
19*1.0 0.6 0.60 1.0 1.25 1.7 20.6 20.6 839 806 12*4 0.8 0.80 1.0 1.60 1.7 25.6 24.8 1456 1398
24*1.0 0.6 0.60 1.0 1.60 1.7 23.6 23.6 1120 1080 14*4 0.8 0.80 1.0 1.60 1.7 26.6 25.7 1570 1503
27*1.0 0.6 0.60 1.0 1.60 1.7 23.9 23.9 1166 1121 16*4 0.8 0.80 1.0 1.60 1.7 27.7 26.8 1712 1636
30*1.0 0.6 0.60 1.0 1.60 1.7 24.5 24.5 1232 1182 19*4 0.8 0.80 1.0 1.60 1.7 28.9 27.9 1918 1830
37*1.0 0.6 0.60 1.0 1.60 1.7 25.9 25.9 1397 1335 24*4 0.8 0.80 1.2 2.00 2.0 34.5 33.3 2626 2513
44*1.0 0.6 0.60 1.0 1.60 1.7 28.2 28.2 1591 1517 27*4 0.8 0.80 1.2 2.00 2.0 35.1 33.8 2802 2676
48*1.0 0.6 0.60 1.0 1.60 1.7 28.6 28.6 1668 1587 30*4 0.8 0.80 1.2 2.00 2.2 36.5 35.2 3018 2878
52*1.0 0.6 0.60 1.0 1.60 1.7 29.2 29.2 1748 1660 37*4 0.8 0.80 1.2 2.00 2.2 38.8 37.4 3488 3319
61*1.0 0.6 0.60 1.2 1.60 2.0 31.6 31.6 2027 1924 44*4 0.8 0.80 1.2 2.00 2.2 42.6 41.0 4010 3810
4*1.5 0.7 0.70 1.0 0.80 1.5 14.3 13.8 361 346 48*4 0.8 0.80 1.2 2.00 2.2 43.2 41.5 4234 4017
5*1.5 0.7 0.70 1.0 0.80 1.5 15.1 14.6 403 385 52*4 0.8 0.80 1.2 2.00 2.2 44.2 42.5 4490 4257
6*1.5 0.7 0.70 1.0 1.25 1.5 16.8 16.2 555 534 61*4 0.8 0.80 1.2 2.50 2.5 48.1 46.3 5487 5214
7*1.5 0.7 0.70 1.0 1.25 1.5 16.8 16.2 575 552 4*6 0.8 0.80 1.0 1.25 1.5 19.1 18.6 796 771
8*1.5 0.7 0.70 1.0 1.25 1.5 18.1 17.4 642 615 5*6 0.8 0.80 1.0 1.25 1.7 20.7 20.1 930 900
10*1.5 0.7 0.70 1.0 1.25 1.5 19.6 18.8 732 699 6*6 0.8 0.80 1.0 1.60 1.7 22.7 22.1 1168 1133
12*1.5 0.7 0.70 1.0 1.25 1.7 20.5 19.6 817 778 7*6 0.8 0.80 1.0 1.60 1.7 22.7 22.1 1212 1172
14*1.5 0.7 0.70 1.0 1.25 1.7 21.2 20.3 877 832 8*6 0.8 0.80 1.0 1.60 1.7 24.6 24.0 1400 1355
16*1.5 0.7 0.70 1.0 1.60 1.7 22.7 21.7 1066 1016 10*6 0.8 0.80 1.0 1.60 1.7 27.0 26.2 1618 1562
19*1.5 0.7 0.70 1.0 1.60 1.7 23.5 22.5 1170 1113 12*6 0.8 0.80 1.0 1.60 1.7 27.7 26.9 1775 1710
24*1.5 0.7 0.70 1.0 1.60 1.7 26.3 25.1 1392 1320 14*6 0.8 0.80 1.0 1.60 1.7 28.8 27.9 1961 1885
27*1.5 0.7 0.70 1.0 1.60 1.7 26.7 25.5 1474 1395 16*6 0.8 0.80 1.2 1.60 2.0 31.1 30.2 2231 2143
30*1.5 0.7 0.70 1.0 1.60 1.7 27.4 26.1 1561 1474 19*6 0.8 0.80 1.2 1.60 2.0 32.4 31.4 2485 2382
37*1.5 0.7 0.70 1.0 1.60 1.7 29.1 27.7 1774 1669 24*6 0.8 0.80 1.2 2.00 2.2 38.0 36.8 3316 3186
44*1.5 0.7 0.70 1.2 1.60 2.0 32.8 31.2 2124 1997 27*6 0.8 0.80 1.2 2.00 2.2 38.6 37.4 3527 3383
48*1.5 0.7 0.70 1.2 1.60 2.0 33.3 31.6 2229 2090 30*6 0.8 0.80 1.2 2.00 2.2 39.7 38.5 3798 3639
52*1.5 0.7 0.70 1.2 2.00 2.0 34.8 33.1 2551 2402 37*6 0.8 0.80 1.2 2.00 2.2 42.3 40.9 4413 4220
61*1.5 0.7 0.70 1.2 2.00 2.2 36.8 35.0 2868 2696 44*6 0.8 0.80 1.2 2.50 2.5 48.3 46.7 5568 5337
4*2.5 0.8 0.80 1.0 1.25 1.5 16.7 16.2 559 540 48*6 0.8 0.80 1.2 2.50 2.5 48.9 47.3 5887 5638
5*2.5 0.8 0.80 1.0 1.25 1.5 17.6 17.1 634 611 52*6 0.8 0.80 1.2 2.50 2.5 50.1 48.4 6257 5987
6*2.5 0.8 0.80 1.0 1.25 1.5 18.6 18.0 702 675 61*6 0.8 0.80 1.2 2.50 2.5 52.6 50.8 7025 6713

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum.  Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs.  You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different.  Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.

Leave Message
HOT SALE PRODUCT
 Câble BTA unipolaire U 1000 ARO2V Alu
Learn More
CLX Type P-OS Type ITC/PLTC Armored Thermoset Instrumentation Cable
Learn More
DLO Cable(2)
DLO Cable
Learn More
Overhead SIP-3 Cable
Learn More
