64/110kV Composite Shell Outdoor Terminal is a high-voltage cable termination used in outdoor power transmission and distribution systems.
Description: 64/110kV Composite Shell Outdoor Terminal is a high-voltage cable termination used in outdoor power transmission and distribution systems.
Rated Voltage: 64/110kV;
The cross section of the cable shall apply: 240~1600mm2;
Environment temperature: -40℃~+40℃;

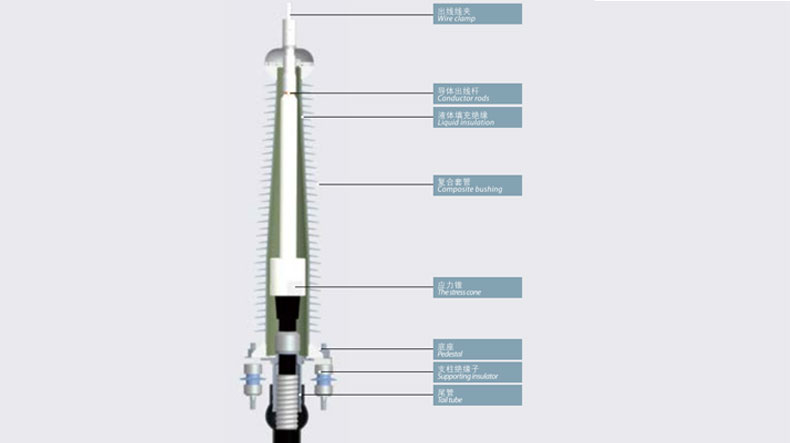

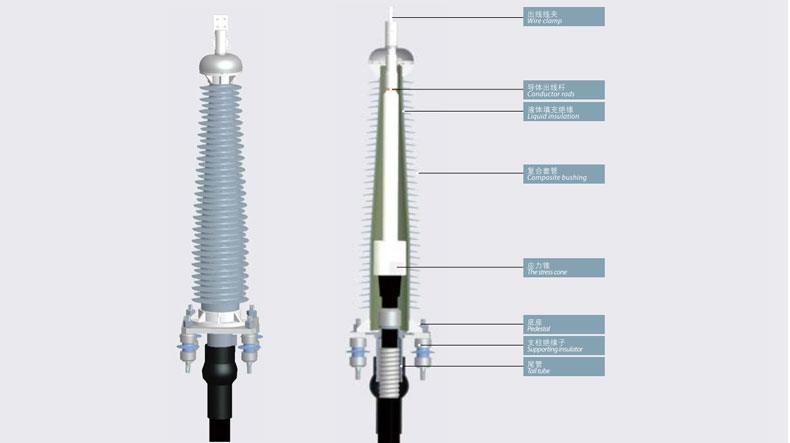

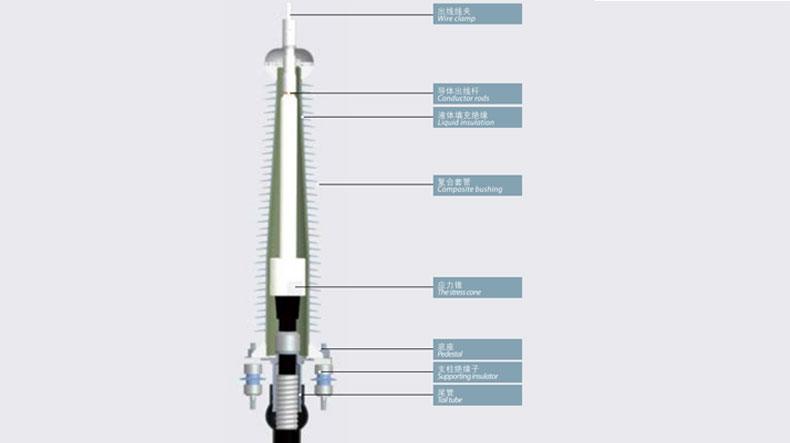

Application: 64/110kV Composite Shell Outdoor Terminal serves as a termination point for high-voltage cables, providing electrical insulation, mechanical protection, and environmental resistance.
| 64/110kV Composite Shell Outdoor Terminal | |
| Item | Technical parameters |
| Rated voltage and frequency | 64/110KV,50 HZ |
| Max peration voltage | 126kv |
| Environment temperature | -40℃～+40℃ |
| Rated operating temperature of conductor | 90℃ |
| Max temperature of cable conductor at short circuit | 250℃ |
| The cross section of the cable shall apply | 240-1600mm2 |
| Apply the height of the altitude | S1000m(more than 1000 m can be separately designed) |
| Polution level | Suitable for high polluted area (lV) high salt fog coastal areas |
| Partial dischange test (at ambient temperature.96kV) | NO ddelectable discharge at the declared sensitivity (5pC or better) |
| Heating cycle valtage test(128kV,95c~100C,heating 8h, cooling 16h) | Completed 20 cycles |
| Partial dischange test(at high temperature,96kV) | NO ddelectable discharge at the declared sensitivity (5pC or better) |
| Power frecuency valtage test for cutdoor termination on (wet test, 185kV, 1min) | NO breakdown or flashover |

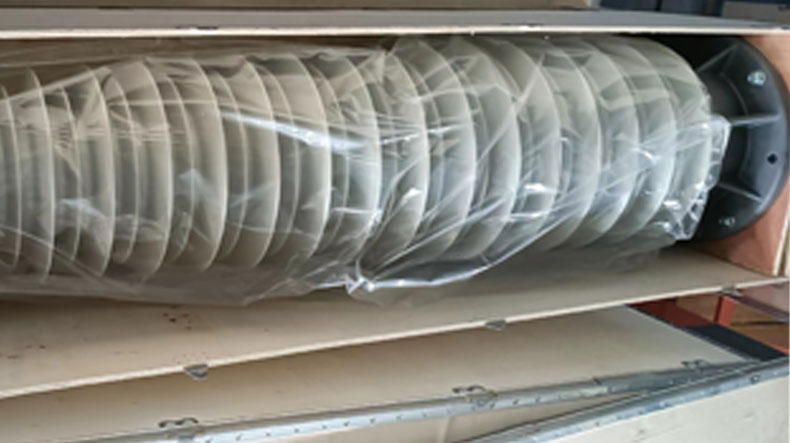

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
