Tie wire is a soft solid aluminum wire or copper wire that is used in overhead transmission and distribution line construction to mechanically secure components such as conductors to pin insulators.
Tie wire is a soft solid aluminum wire or copper wire that is used in overhead transmission and distribution line construction to mechanically secure components such as conductors to pin insulators.
Application Tie wire is a soft solid aluminum wire or copper wire that is used in overhead transmission and distribution line construction to mechanically secure components such as conductors to pin insulators.
Applicable Standard ASTM B609 , ASTM B3
Production scope: 8AWG – 2AWG
Construction Solid Annealed Aluminum wire /Copper wire
| Size | Wire Dia. | Tensile Strength | Approx. Weight |
| AWG | mm | MPa | kg/km |
| 8 | 3.0 – 3.26 | 60～115 | 18 – 22 |
| 6 | 4.0 – 4.11 | 60～115 | 33- 35 |
| 4 | 5.0 – 5.18 | 60～115 | 52 – 56 |
| 2 | 6.0 – 6.55 | 60～115 | 75 – 90 |
| Size | Wire Dia. | Elongation in 254mm | Approx. Weight |
| AWG | mm | % | kg/km |
| 8 | 3.0 – 3.26 | 30 | 62 – 73 |
| 6 | 4.0 – 4.11 | 30 | 111 – 117 |
| 4 | 5.0 – 5.18 | 30 | 174 – 187 |
| 2 | 6.0 – 6.55 | 30 | 251 – 299 |

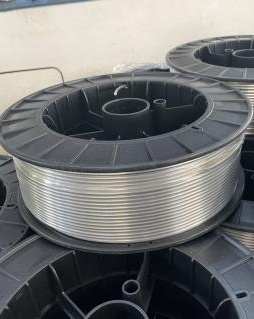

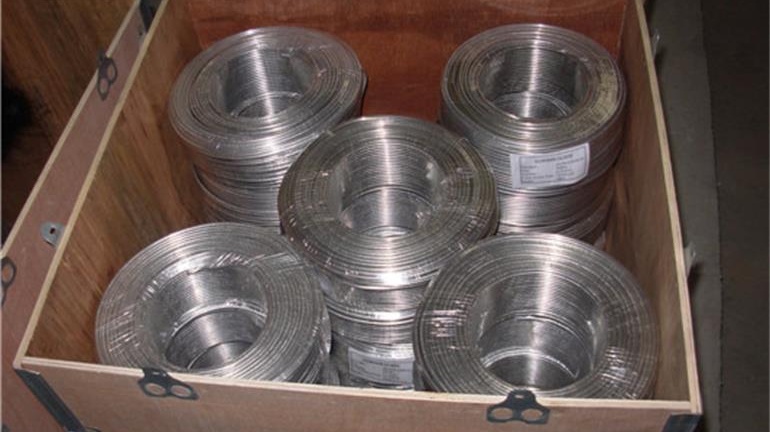

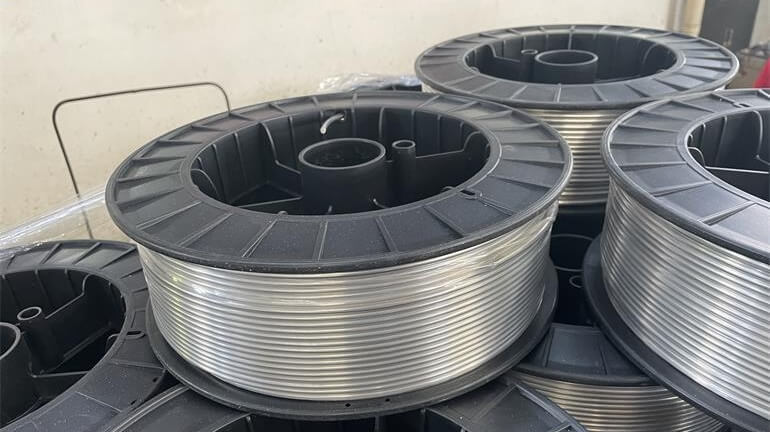

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
