Messenger Wire, Overhead Ground or Static Wire, Guy Wire
Messenger Wire, Overhead Ground or Static Wire, Guy Wire
Application TMessenger Wire, Overhead Ground or Static Wire, Guy Wire
Standard ASTM A-475 , CSA G12-92 , BS183

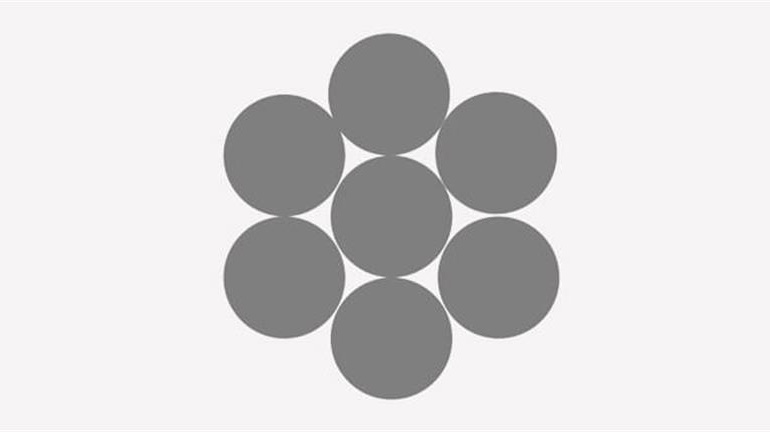

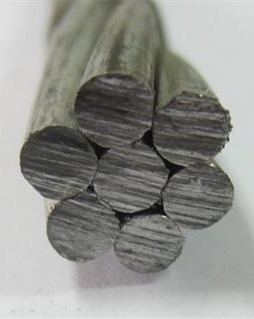

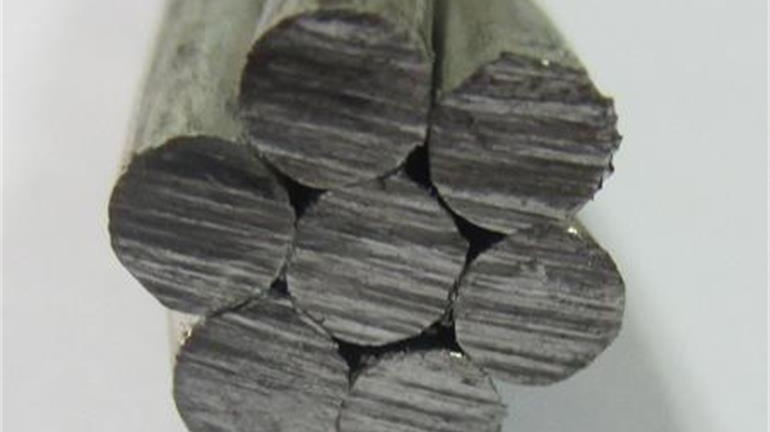

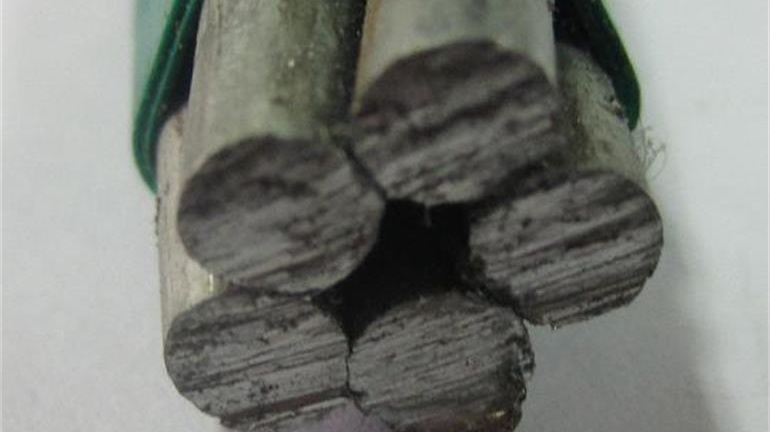

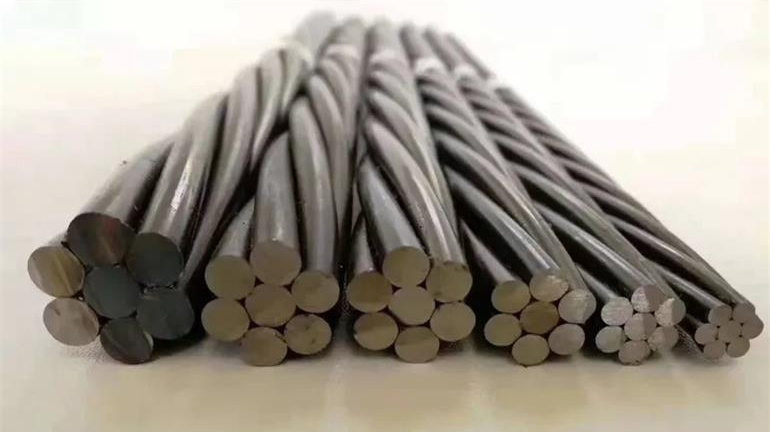

Construction Concentrically stranded
Common, High Strength and Extra High Strength
| Code | Nominal strand diameter | Nominal wire diameter | Nominal cross-section area | No. of wires | Minimum breaking load,
KN |
Approx.
weight |
|||
| size,
in |
mm | mm | mm2 | wires | 800 | 1100 | 1300 | 1500 | kg/km |
| 3/16 | 4.95 | 1.65 | 14.97 | 7 | 10.67 | 15.56 | 17.78 | 21.34 | 117 |
| 1/4 | 6.32 | 2.11 | 24.48 | 7 | 17.34 | 25.34 | 28.45 | 35.12 | 191 |
| 9/32 | 7.24 | 2.41 | 31.93 | 7 | 23.12 | 33.34 | 37.78 | 45.79 | 249 |
| 5/16 | 8.31 | 2.77 | 42.18 | 7 | 30.23 | 44.01 | 49.34 | 60.46 | 329 |
| 3/8 | 9.14 | 3.05 | 51.14 | 7 | 36.45 | 53.34 | 60.01 | 73.35 | 399 |
| 7/16 | 10.97 | 3.66 | 73.65 | 7 | 52.90 | 76.90 | 86.68 | 105.80 | 574 |
| 1/2 | 12.57 | 4.19 | 96.52 | 7 | 69.35 | 100.91 | 113.35 | 138.69 | 753 |
| 9/16 | 14.33 | 4.78 | 125.62 | 7 | 90.24 | 131.14 | 147.58 | 180.48 | 980 |
| 9/16 | 14.45 | 2.89 | 124.64 | 19 | 84.02 | 122.25 | 137.36 | 168.03 | 972 |
| 5/8 | 15.77 | 5.26 | 152.11 | 7 | 109.35 | 159.14 | 178.70 | 218.71 | 1186 |
| 5/8 | 16.10 | 3.22 | 154.72 | 19 | 102.24 | 149.36 | 167.59 | 204.93 | 1207 |
| 11/16 | 17.48 | 3.45 | 177.62 | 19 | 122.25 | 177.81 | 200.04 | 244.49 | 1385 |
| 3/4 | 19.35 | 3.87 | 223.49 | 19 | 148.92 | 216.49 | 243.60 | 297.83 | 1743 |
| 13/16 | 20.70 | 4.14 | 255.77 | 19 | 172.03 | 248.94 | 280.50 | 342.73 | 1995 |
| 7/8 | 22.71 | 4.54 | 307.58 | 19 | 205.37 | 299.17 | 336.51 | 411.19 | 2399 |
| 15/16 | 23.88 | 4.77 | 339.53 | 19 | 228.49 | 332.06 | 373.85 | 456.97 | 2648 |
| 1 | 25.60 | 5.12 | 391.19 | 19 | 262.72 | 381.85 | 429.86 | 524.99 | 3051 |
| Nominal Dia. of strand | Number of wires in Strand | Nominal Dia. of coated wries in strand | Approx. Weight of strand | Min. Breaking Strength , | ||||||||||||
| Utilites Grad A | Common Grade | Siemens-Martin Grade | Hign-Strength Grade | Extra High-Strength Grade | ||||||||||||
| in. | mm | in. | mm | lb/1000ft | kg/km | lbf | KN | lbf | KN | lbf | KN | lbf | KN | lbf | KN | |
| 1/8 | 3.18 | 7 | 0.041 | 1.04 | 32 | 48 | … | 540 | 2.402 | 910 | 4.048 | 1330 | 5.916 | 1830 | 8.14 | |
| 5/32 | 3.97 | 7 | 0.052 | 1.32 | 51 | 76 | … | 870 | 3.87 | 1470 | 6.539 | 2140 | 9.519 | 2940 | 13.078 | |
| 3/16 | 4.76 | 7 | 0.062 | 1.57 | 73 | 109 | … | 1150 | 5.115 | 1900 | 8.452 | 2850 | 12.677 | 3990 | 17.748 | |
| 3/16 | 4.76 | 7 | 0.065 | 1.65 | 80 | 119 | 2400 | 10.676 | … | … | … | … | … | … | ||
| 7/32 | 5.56 | 3 | 0.104 | 2.64 | 88 | 131 | … | 1400 | 6.228 | 2340 | 10.409 | 3500 | 15.569 | 4900 | 21.796 | |
| 7/32 | 5.56 | 7 | 0.072 | 1.83 | 98 | 146 | … | 1540 | 6.85 | 2560 | 11.387 | 3850 | 17.126 | 5400 | 24.02 | |
| 1/4 | 6.35 | 3 | 0.12 | 3.05 | 117 | 174 | 3150 | 14.012 | 1860 | 8.274 | 3040 | 13.523 | 4730 | 21.04 | 6740 | 29.981 |
| 1/4 | 6.35 | 3 | 0.12 | 3.05 | 117 | 174 | 4500 | 20.017 | … | … | … | … | … | |||
| 1/4 | 6.35 | 7 | 0.08 | 2.03 | 121 | 180 | … | 1900 | 8.452 | 3150 | 14.012 | 4750 | 21.129 | 6650 | 29.581 | |
| 9/32 | 7.14 | 3 | 0.13 | 3.3 | 137 | 204 | … | 2080 | 9.252 | 3380 | 15.035 | 5260 | 23.398 | 7500 | 33.362 | |
| 9/32 | 7.14 | 7 | 0.093 | 2.36 | 164 | 244 | 4600 | 20.462 | 2570 | 11.432 | 4250 | 18.905 | 6400 | 28.469 | 8950 | 39.812 |
| 5/16 | 7.94 | 3 | 0.145 | 3.68 | 171 | 255 | 6500 | 28.913 | 2490 | 11.076 | 4090 | 18.193 | 6350 | 28.246 | 9100 | 40.479 |
| 5/16 | 7.94 | 7 | 0.104 | 2.64 | 205 | 305 | … | 3200 | 14.234 | 5350 | 23.798 | 8000 | 35.586 | 11200 | 49.82 | |
| 5/16 | 7.94 | 7 | 0.109 | 2.77 | 225 | 335 | 6000 | 26.689 | … | … | … | … | … | |||
| 3/8 | 9.52 | 3 | 0.165 | 4.19 | 220 | 328 | 8500 | 37.81 | 3330 | 14.813 | 5560 | 24.732 | 8360 | 37.187 | 11800 | 52.489 |
| 3/8 | 9.52 | 7 | 0.12 | 3.05 | 273 | 407 | 11500 | 51.155 | 4250 | 18.905 | 6950 | 30.915 | 10800 | 48.04 | 15400 | 68.503 |
| 7/16 | 11.11 | 7 | 0.145 | 3.68 | 399 | 595 | 18000 | 80.068 | 5700 | 25.355 | 9350 | 41.591 | 14500 | 64.499 | 20800 | 92.523 |
| 1/2 | 12.7 | 7 | 0.165 | 4.19 | 517 | 770 | 25000 | 111.206 | 7400 | 32.917 | 12100 | 53.823 | 18800 | 83.627 | 26900 | 119.657 |
| 1/2 | 12.7 | 19 | 0.1 | 2.54 | 504 | 751 | … | 7620 | 33.895 | 12700 | 56.492 | 19100 | 84.961 | 26700 | 118.768 | |
| 9/16 | 14.29 | 7 | 0.188 | 4.78 | 671 | 1000 | … | 9600 | 42.703 | 15700 | 69.837 | 24500 | 108.981 | 35000 | 155.688 | |
| 9/16 | 14.29 | 19 | 0.113 | 2.87 | 637 | 949 | … | 9640 | 42.881 | 16100 | 71.616 | 24100 | 107.202 | 33700 | 149.905 | |
| 5/8 | 15.88 | 7 | 0.207 | 5.26 | 813 | 1211 | … | 11600 | 51.599 | 19100 | 84.961 | 29600 | 131.667 | 42400 | 188.605 | |
| 5/8 | 15.88 | 19 | 0.125 | 3.18 | 796 | 1186 | … | 11000 | 48.93 | 18100 | 80.513 | 28100 | 124.995 | 40200 | 178.819 | |
| 3/4 | 19.05 | 19 | 0.15 | 3.81 | 1155 | 1721 | … | 16000 | 71.172 | 26200 | 116.543 | 40800 | 181.487 | 58300 | 259.311 | |
| 7/8 | 22.22 | 19 | 0.177 | 4.5 | 1581 | 2356 | … | 21900 | 97.416 | 35900 | 159.691 | 55800 | 248.211 | 79700 | 354.523 | |
| Stranding wire no./Dia. | Approx. Strand Dia. | Weight | Min. Breaking load of strand | ||
| Grade 1000 | Grade1150 | Grade1300 | |||
| mm | kg/km | KN | KN | KN | |
| 3/1.80 | 3.9 | 60 | 7.63 | 8.78 | 9.92 |
| 3/2.65 | 5.7 | 129 | 16.55 | 19.03 | 21.51 |
| 3/3.25 | 7.0 | 194 | 24.89 | 28.62 | 32.35 |
| 3/4.00 | 8.6 | 294 | 37.70 | 43.35 | 49.01 |
| 4/1.80 | 4.3 | 79 | 10.18 | 11.71 | 13.23 |
| 4/2.65 | 6.4 | 172 | 22.06 | 25.37 | 28.68 |
| 4/3.25 | 7.8 | 259 | 33.18 | 38.16 | 43.14 |
| 4/4.00 | 9.7 | 392 | 50.27 | 57.81 | 65.35 |
| 5/1.50 | 4.1 | 69 | 8.84 | 10.16 | 11.49 |
| 5/1.80 | 4.9 | 99 | 12.72 | 14.63 | 16.54 |
| 5/2.65 | 7.2 | 215 | 27.58 | 31.71 | 35.85 |
| 5/3.25 | 8.8 | 324 | 41.48 | 47.70 | 53.92 |
| 5/4.00 | 10.8 | 490 | 62.83 | 72.26 | 81.68 |
| 7/1.60 | 4.8 | 110 | 14.07 | 16.19 | 18.30 |
| 7/1.80 | 5.4 | 139 | 17.81 | 20.48 | 23.16 |
| 7/2.00 | 6.0 | 172 | 21.99 | 25.29 | 28.59 |
| 7/2.36 | 7.1 | 239 | 30.62 | 35.21 | 39.81 |
| 7/2.65 | 8.0 | 301 | 38.61 | 44.40 | 50.19 |
| 7/3.00 | 9.0 | 386 | 49.48 | 56.90 | 64.32 |
| 7/3.15 | 9.5 | 426 | 54.55 | 62.73 | 70.92 |
| 7/3.25 | 9.8 | 453 | 58.07 | 66.78 | 75.49 |
| 7/3.65 | 11.0 | 571 | 73.24 | 84.23 | 95.22 |
| 7/4.00 | 12.0 | 686 | 87.96 | 101.16 | 114.35 |
| 7/4.25 | 12.8 | 775 | 99.30 | 114.20 | 129.10 |
| 7/4.75 | 14.3 | 968 | 124.04 | 142.65 | 161.26 |
| 19/1.60 | 8.0 | 298 | 38.20 | 43.93 | 49.66 |
| 19/2.00 | 10.0 | 466 | 59.69 | 68.64 | 77.60 |
| 19/2.50 | 12.5 | 727 | 93.27 | 107.26 | 121.25 |
| 19/3.00 | 15.0 | 1048 | 134.30 | 154.45 | 174.59 |
| 19/3.55 | 17.8 | 1467 | 188.06 | 216.27 | 244.48 |
| 19/4.00 | 20.0 | 1862 | 238.76 | 274.58 | 310.39 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
