CCA Wire includes high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables. And also been in unshielded twisted pair networking cables. CCA was also used in electrical cables. It can avoid some problems of al cable , in the meantime , save some cost.
CCA Wire includes high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables. And also been in unshielded twisted pair networking cables. CCA was also used in electrical cables. It can avoid some problems of al cable , in the meantime , save some cost.
Application CCA Wire includes high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables. And also been in unshielded twisted pair networking cables. CCA was also used in electrical cables. It can avoid some problems of al cable , in the meantime , save some cost.
Standard GB/T29197, ASTM B 566

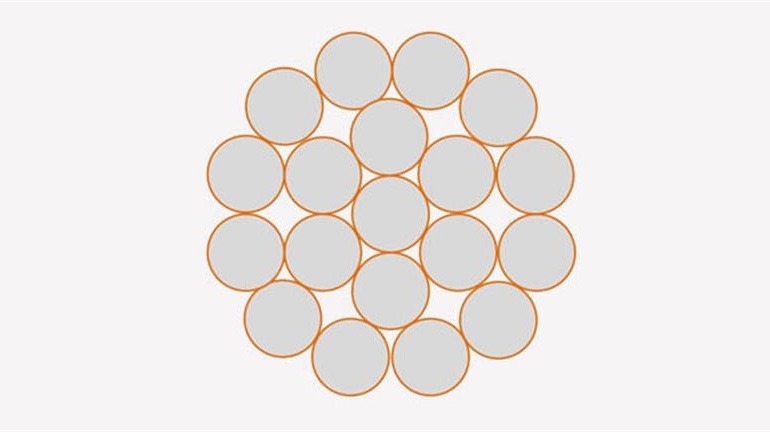

Construction Concentrically stranded
0.08-8.25mm
| Tensile and Elongation Requirements for Copper-Clad Aluminum Wire | ||||
| Nominal Diameter | Tensile Strength | Elongation % in 250mm | ||
| Minimum All | Maximum All | All H Classes | All A Classes | |
| H Classes | A Classes | |||
| mm | (MPa) | (MPa) | ||
| 0.08-0.12 | 205 | 172 | 1 | 5 |
| 0.121-0.36 | 207 | 172 | 1 | 5 |
| 0.361-0.574 | 207 | 172 | 1 | 10 |
| 0.575-0.642 | 207 | 138 | 1 | 10 |
| 0.643-2.05 | 207 | 138 | 1 | 15 |
| 2.06-2.3 | 200 | 138 | 1 | 15 |
| 2.31-2.59 | 193 | 138 | 1 | 15 |
| 2.6-2.91 | 186 | 138 | 1 | 15 |
| 2.92-3.26 | 179 | 138 | 1 | 15 |
| 3.27-3.67 | 172 | 138 | 1 | 15 |
| 3.68-4.12 | 166 | 138 | 1.5 | 15 |
| 4.13-4.52 | 159 | 138 | 1.5 | 15 |
| 4.63-5.19 | 152 | 138 | 1.5 | 15 |
| 5.2-5.83 | 138 | 138 | 1.5 | 15 |
| 5.84-6.54 | 124 | 138 | 1.5 | 15 |
| 6.55-8.25 | 110 | 138 | 1.5 | 15 |

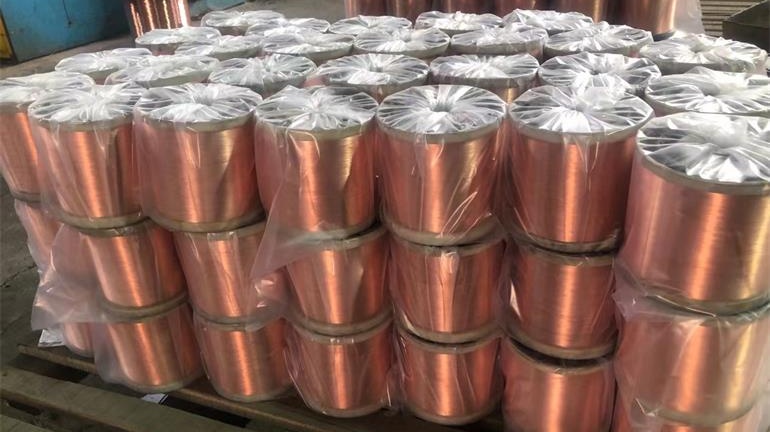

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
