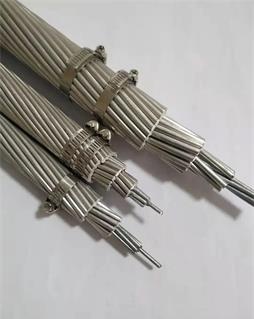

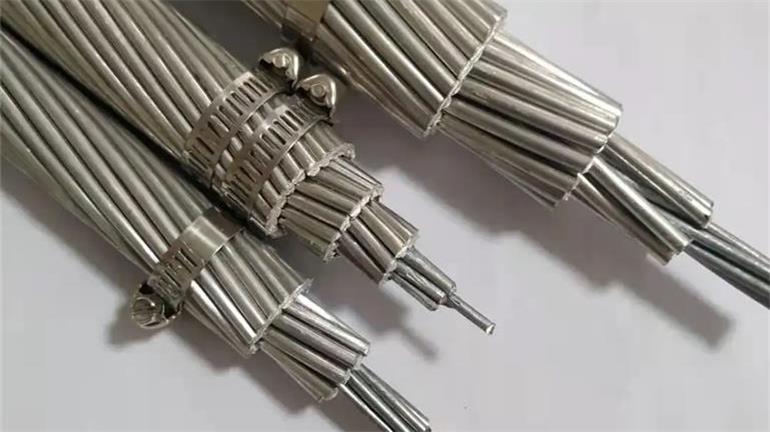

Application ACS is used as Overhead ground wire, shield wire protecting transmission lines against lightning damage.
Standard ASTM A 474

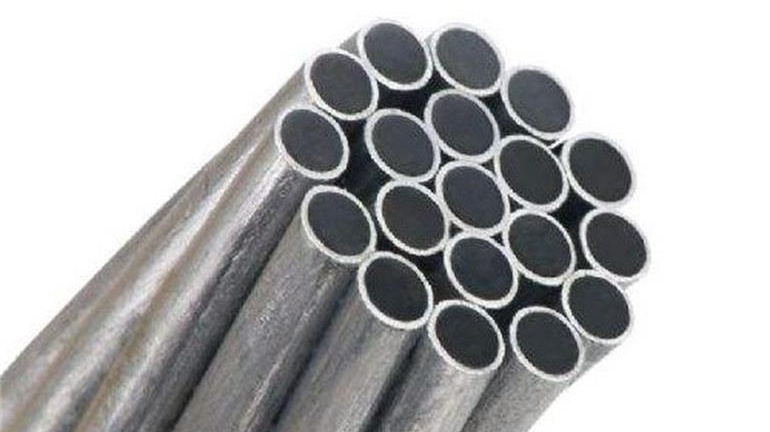

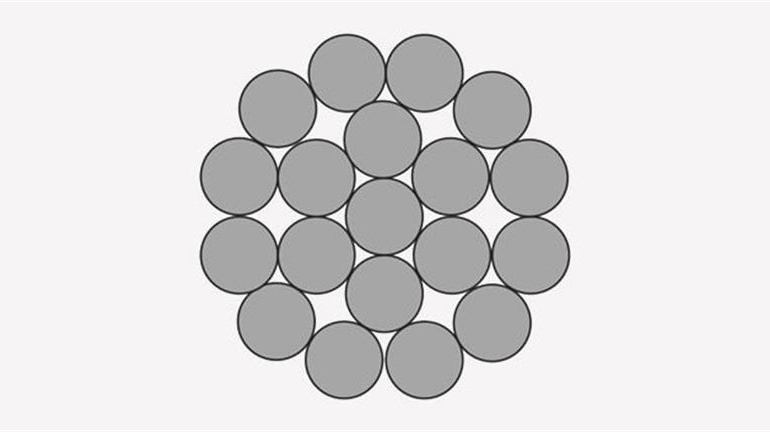

Construction Concentrically stranded
Wire dia. from 1.20mm to 5.60mm, Max. Stranded Number: 37 No.s
| Nominal Cross Section | Construction | Conductor Dia. | Rated Breaking Strength | Approx. weight | Max Resistance at 20°C | |
| Stranding No. | Single wire | |||||
| mm2 | No. | AWG | mm | KN | kg/km | Ω/km |
| 620.6 | 37 | 5 | 32.26 | 634.8 | 4167 | 0.13925 |
| 492.2 | 37 | 6 | 28.7 | 534.3 | 3305 | 0.17561 |
| 390.3 | 37 | 7 | 25.65 | 447.6 | 2620 | 0.22144 |
| 309.5 | 37 | 8 | 22.83 | 374.3 | 2079 | 0.27921 |
| 245.5 | 37 | 9 | 20.35 | 296.8 | 1648 | 0.35213 |
| 194.6 | 37 | 10 | 18.11 | 235.4 | 1307 | 0.44393 |
| 318.7 | 19 | 5 | 23.11 | 326.1 | 2127 | 0.26964 |
| 252.7 | 19 | 6 | 20.57 | 274.3 | 1686 | 0.34 |
| 200.5 | 19 | 7 | 18.31 | 230 | 1338 | 0.42885 |
| 159 | 19 | 8 | 16.31 | 192.2 | 1061 | 0.54066 |
| 126.1 | 19 | 9 | 14.53 | 152.4 | 841 | 0.68164 |
| 99.9 | 19 | 10 | 12.93 | 120.9 | 667 | 0.85967 |
| 117.4 | 7 | 5 | 13.87 | 120.2 | 781 | 0.7423 |
| 93.1 | 7 | 6 | 12.34 | 101 | 619 | 0.91902 |
| 73.9 | 7 | 7 | 11 | 84.7 | 491 | 1.15902 |
| 58.6 | 7 | 8 | 9.78 | 70.8 | 389 | 1.46164 |
| 46.4 | 7 | 9 | 8.71 | 56.1 | 309 | 1.84295 |
| 36.8 | 7 | 10 | 7.77 | 44.5 | 245 | 2.32393 |
| 29.2 | 7 | 11 | 6.91 | 35.3 | 194 | 2.93049 |
| 23.2 | 7 | 12 | 6.15 | 28 | 154 | 3.69508 |
| 50.3 | 3 | 5 | 9.96 | 54.4 | 334 | 1.69738 |
| 39.9 | 3 | 6 | 8.86 | 45.7 | 265 | 2.14033 |
| 31.6 | 3 | 7 | 7.9 | 38.3 | 210 | 2.69902 |
| 25.1 | 3 | 8 | 7.04 | 32 | 167 | 3.40328 |
| 19.9 | 3 | 9 | 6.27 | 25.4 | 132 | 4.2918 |
| 15.8 | 3 | 10 | 5.59 | 20.1 | 105 | 5.41311 |

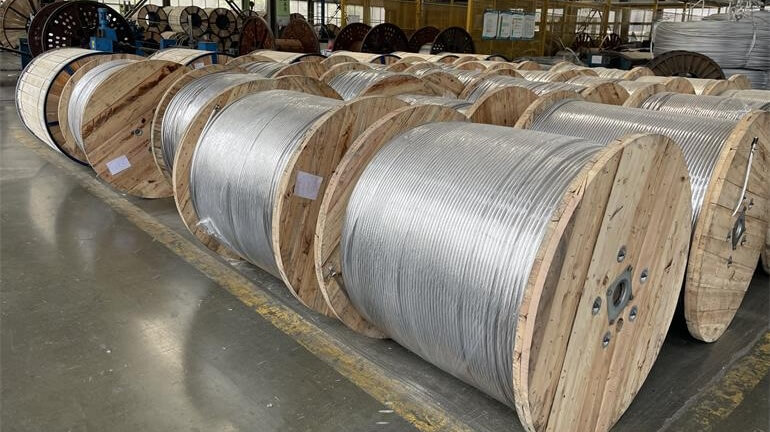

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
