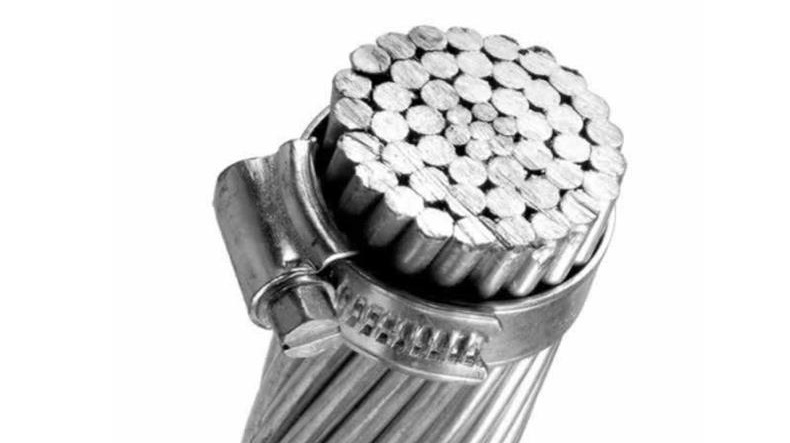

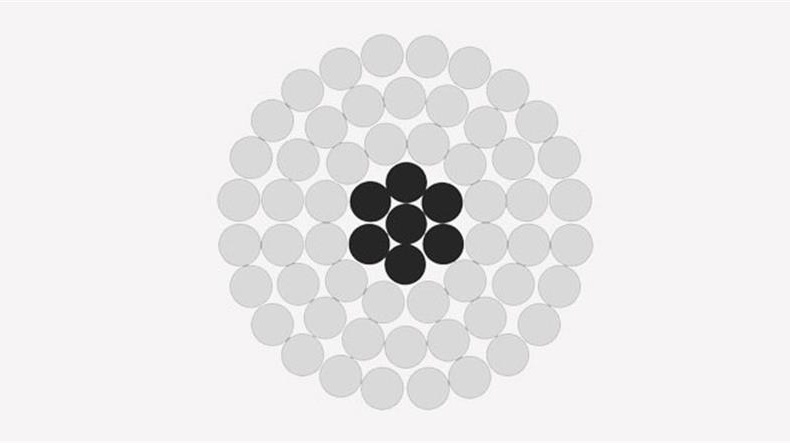

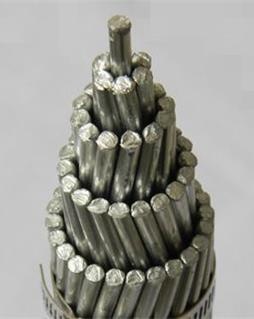

Aluminum Conductor Alloy Reinforced (ACAR) cable has aluminum wires concentrically stranded around a aluminum alloy core.
Aluminum Conductor Alloy Reinforced (ACAR) cable has aluminum wires concentrically stranded around a aluminum alloy core.

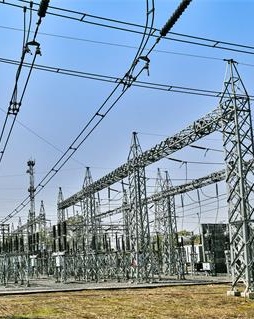

Application Aluminum Conductor Alloy Reinforced (ACAR) conductor is an excellent conductor choice where current carrying capacity, higher strength and a lower conductor weight are critical to the line design.
Standard IEC61089 , ASTM B-524
Production Scope: Max. size 3500MCM, Max. str. No. 91.

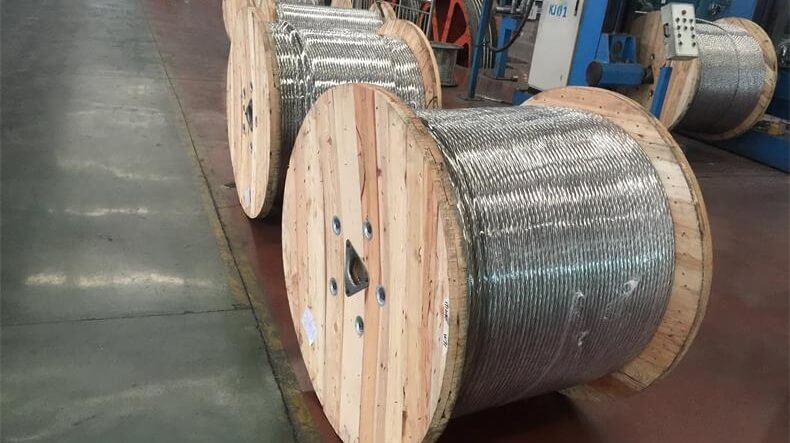

Packing Material: Wooden Reel, Iron-wooden Reel, Steel Reel.
| Cross Selection | Stranding- No. & Dia. | Approx. weight | Approx. Overall Dia. | Rated Strength |
Max. DC Resistance @ 20℃ | ||||
| Al wire | AAAC Wire | ||||||||
| kcmil/ AWG | mm2 | No. | mm | No. | mm | kg/km | mm | kN | Ω/km |
| 250 | 126.64 | 12 | 2.91 | 7 | 2.913 | 349.3 | 14.58 | 27.58 | 0.23989 |
| 300 | 152.13 | 12 | 3.19 | 7 | 3.193 | 419.2 | 15.977 | 32.83 | 0.19964 |
| 350 | 177.29 | 12 | 3.45 | 7 | 3.447 | 489 | 17.247 | 37.41 | 0.17089 |
| 400 | 202.71 | 12 | 3.69 | 7 | 3.686 | 558.8 | 18.44 | 42.35 | 0.14941 |
| 450 | 228 | 12 | 3.91 | 7 | 3.909 | 628.6 | 19.558 | 47.15 | 0.13300 |
| 500 | 253.16 | 30 | 2.95 | 7 | 2.951 | 698.5 | 20.65 | 48.04 | 0.11738 |
| 550 | 278.58 | 12 | 4.32 | 7 | 4.321 | 768.3 | 21.615 | 57.83 | 0.10891 |
| 600 | 304 | 12 | 4.51 | 7 | 4.514 | 838.1 | 22.581 | 62.72 | 0.09988 |
| 650 | 329 | 18 | 3.366 | 19 | 3.366 | 911.0 | 23.59 | 73.85 | 0.09411 |
| 700 | 354.45 | 30 | 3.49 | 7 | 3.493 | 977.9 | 24.46 | 65.39 | 0.08385 |
| 700 | 354.45 | 18 | 3.49 | 19 | 3.493 | 977.9 | 24.46 | 79.62 | 0.08719 |
| 800 | 405.16 | 30 | 3.73 | 7 | 3.734 | 1117.6 | 26.137 | 73.84 | 0.07340 |
| 800 | 405.16 | 18 | 3.73 | 19 | 3.734 | 1117.6 | 26.137 | 90.3 | 0.07632 |
| 850 | 430.9 | 30 | 3.85 | 7 | 3.851 | 1187.4 | 26.949 | 77.4 | 0.06892 |
| 850 | 430.9 | 18 | 3.85 | 19 | 3.851 | 1187.4 | 26.949 | 95.19 | 0.07169 |
| 900 | 456.26 | 30 | 3.96 | 7 | 3.962 | 1257.3 | 27.737 | 81.85 | 0.06514 |
| 900 | 456.26 | 18 | 3.96 | 19 | 3.962 | 1257.3 | 27.737 | 99.64 | 0.06774 |
| 950 | 481.16 | 30 | 4.07 | 7 | 4.069 | 1327.1 | 28.473 | 86.3 | 0.06168 |
| 950 | 481.16 | 18 | 4.07 | 19 | 4.069 | 1327.1 | 28.473 | 106.31 | 0.06418 |
| 1000 | 506.64 | 30 | 4.18 | 7 | 4.176 | 1396.9 | 29.235 | 90.74 | 0.05849 |
| 1000 | 506.64 | 18 | 4.18 | 19 | 4.176 | 1396.9 | 29.235 | 112.1 | 0.06089 |
| 1100 | 557.22 | 30 | 4.38 | 7 | 4.379 | 1537.3 | 30.658 | 100.08 | 0.05326 |
| 1100 | 557.22 | 18 | 4.38 | 19 | 4.379 | 1537.3 | 30.658 | 123.22 | 0.05541 |
| 1200 | 608.13 | 30 | 4.58 | 7 | 4.575 | 1677.2 | 32.029 | 108.98 | 0.04872 |
| 1200 | 608.13 | 18 | 4.58 | 19 | 4.575 | 1677.2 | 32.029 | 134.34 | 0.05072 |
| 1250 | 633.35 | 30 | 4.67 | 7 | 4.669 | 1745.6 | 32.69 | 113.87 | 0.04685 |
| 1250 | 633.35 | 18 | 4.67 | 19 | 4.669 | 1745.6 | 32.69 | 140.12 | 0.04875 |
| 1300 | 658.39 | 30 | 4.76 | 7 | 4.76 | 1815.6 | 33.325 | 118.32 | 0.04509 |
| 1300 | 658.39 | 18 | 4.76 | 19 | 4.76 | 1815.6 | 33.325 | 145.46 | 0.04691 |
| 1500 | 759.93 | 42 | 3.98 | 19 | 3.983 | 2095.3 | 35.839 | 146.79 | 0.03966 |
| 1700 | 860.97 | 42 | 4.24 | 19 | 4.239 | 2375.1 | 38.151 | 166.36 | 0.03497 |
| 1700 | 860.97 | 33 | 4.24 | 28 | 4.239 | 2375.1 | 38.151 | 180.15 | 0.03561 |
| 1750 | 887.1 | 42 | 4.3 | 19 | 4.303 | 2445.1 | 38.735 | 171.26 | 0.03398 |
| 1800 | 912.26 | 42 | 4.36 | 19 | 4.364 | 2515 | 39.268 | 176.15 | 0.03305 |
| 1900 | 962.84 | 42 | 4.48 | 19 | 4.483 | 2654.9 | 40.361 | 185.94 | 0.03130 |
| 2000 | 1013.74 | 42 | 4.6 | 19 | 4.6 | 2793.3 | 41.402 | 195.72 | 0.02970 |
| 2500 | 1265.8 | 72 | 4.21 | 19 | 4.209 | 3526.9 | 46.304 | 225.08 | 0.02330 |
| 2500 | 1265.8 | 54 | 4.21 | 37 | 4.209 | 3526.9 | 46.304 | 256.66 | 0.02387 |
