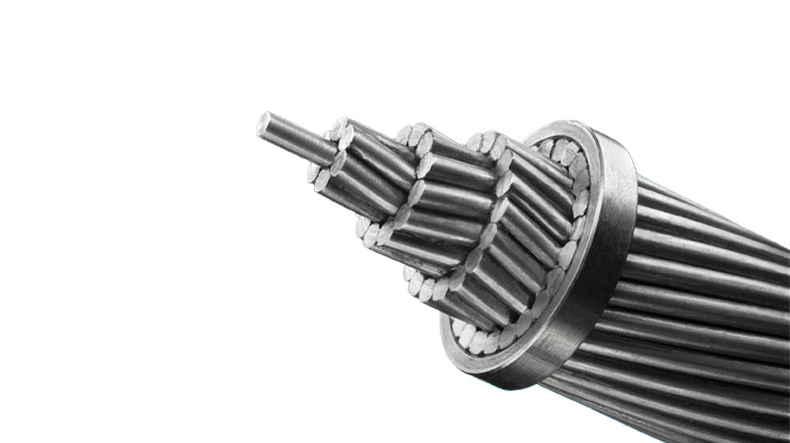

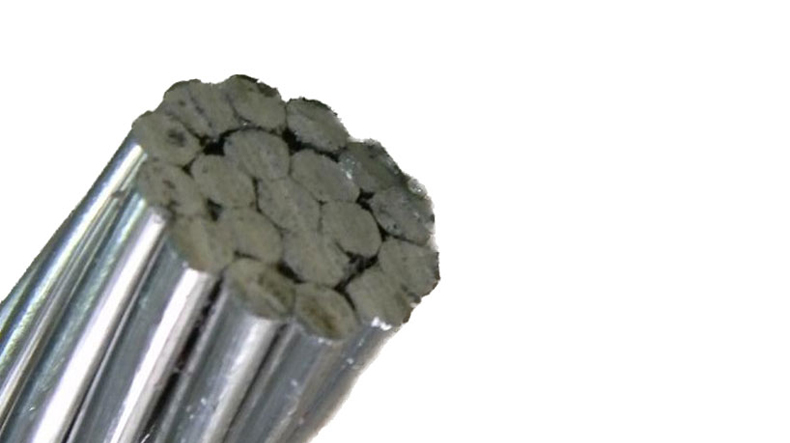

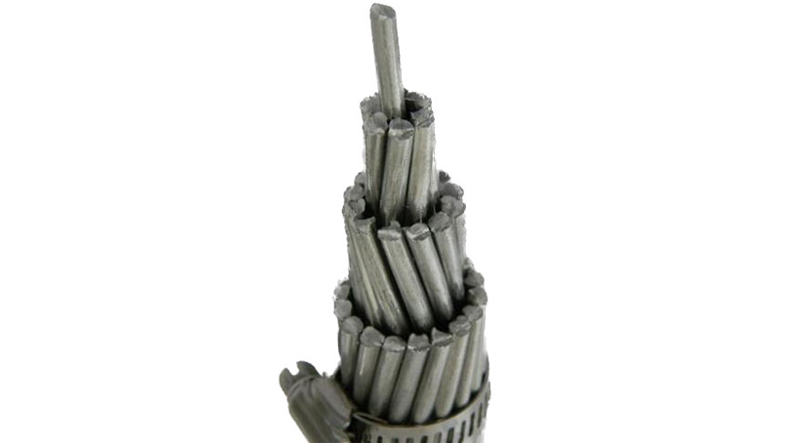

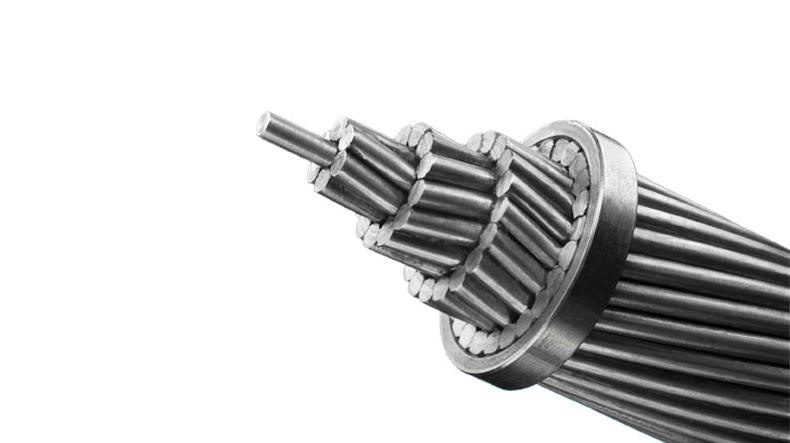

AAC Conductor is a type of electrical conductor made entirely of aluminum. AAC conductors are used in overhead power lines and are known for their lightweight and corrosion-resistant properties.

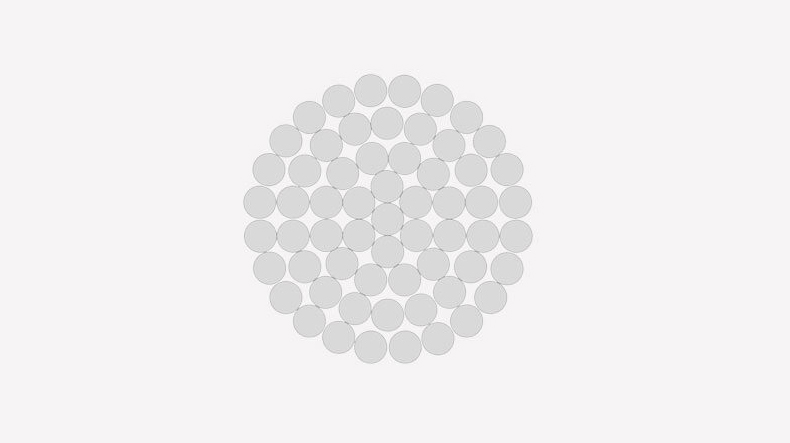

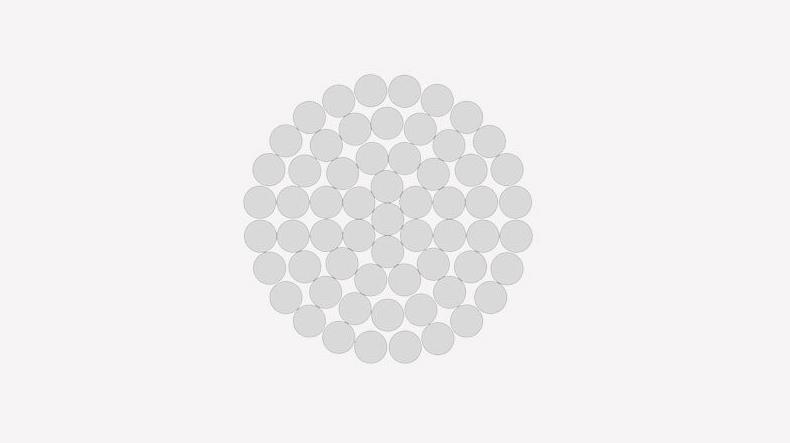

Construction: Aluminum 1350-H19 wires, concentrically stranded.
Applicable Standard: IEC61089; ASTM B231; BS215;
Production Scope: Max. size 2000mm2( 4000MCM)/ Max. str. no. 127 wires.
Feature: High-capacity,high-conductivity,low weight and low cost.
Application: Overhead transmission and primary and secondary distribution.
| AAC-IEC61089 | |||||||
| Code Number | Nominal Cross-section Area | Stranding No. & Wire Dia. | Approx. Overall Dia. | Approx. Weight | Nominal breaking Strength | Maximum D.C. Resistance at 20℃ | |
| mm2 | No.s | mm | mm | kg/km | kN | Ω/km | |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.4 | 68.4 | 4.5 | 1.1453 |
| 100 | 100 | 19 | 2.59 | 12.9 | 274.8 | 17 | 0.2877 |
| 200 | 200 | 19 | 3.66 | 18.3 | 549.7 | 32 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.5 | 687.1 | 40 | 0.1151 |
| 400 | 400 | 37 | 3.71 | 26 | 1102 | 64 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.5 | 1239.8 | 72 | 0.0641 |
| 600 | 500 | 37 | 4.15 | 29 | 1377.6 | 80 | 0.0577 |
| 630 | 630 | 61 | 3.63 | 32.6 | 1738.3 | 100.8 | 0.0458 |
| 800 | 800 | 61 | 4.09 | 36.8 | 2207.4 | 128 | 0.0361 |
| 1000 | 1000 | 61 | 4.57 | 41.1 | 2759.2 | 160 | 0.0289 |
| AAC-ASTM B231 | |||||||
| Total Area | Stranding No. & Wire Dia. | Approx. Overall Dia. | Approx. Weight | Nominal breaking Strength | Maximum D.C. Resistance at 20℃ | ||
| AWG/MCM | mm2 | No.s | mm | mm | Kg/km | daN | Ω/km |
| 6 | 13.29 | 7 | 1.55 | 4.65 | 36 | 249 | 2.1692 |
| 4 | 21.16 | 7 | 1.96 | 5.88 | 58 | 396 | 1.3624 |
| 2 | 33.61 | 7 | 2.47 | 7.41 | 92 | 597 | 0.8577 |
| 1 | 42.39 | 7 | 2.78 | 8.34 | 117 | 732 | 0.6801 |
| 1/0 | 53.48 | 7 | 3.12 | 9.36 | 148 | 873 | 0.539 |
| 2/0 | 67.42 | 7 | 3.5 | 10.5 | 186 | 1100 | 0.4276 |
| 3/0 | 85.03 | 7 | 3.93 | 11.79 | 234 | 1347 | 0.339 |
| 4/0 | 107.23 | 7 | 4.42 | 13.26 | 296 | 1698 | 0.2688 |
| 300 | 152.01 | 19 | 3.19 | 15.95 | 419 | 2403 | 0.1896 |
| 450 | 228.02 | 19 | 3.91 | 19.55 | 629 | 3499 | 0.1264 |
| 500 | 253.35 | 37 | 2.95 | 20.65 | 697 | 4035 | 0.1138 |
| 600 | 304.02 | 37 | 3.23 | 22.61 | 836 | 4703 | 0.0948 |
| AAC-BS215 | ||||||||
| Code Name | Nominal Cross-section Area | Calculated Cross-section Area | Stranding No. & Wire Dia. | Approx.e Overall Dia. | Approx. Weight | Nominal breaking Strength | Maximum D.C. Resistance at 20℃ | |
| mm2 | mm2 | No.s | mm | mm | kg/km | daN | Ω/km | |
| Midge | 22 | 25 | 7 | 2.06 | 6.18 | 64 | 399 | 1.227 |
| Aphis | 25 | 67 | 7 | 3.35 | 10.05 | 170 | 411 | 1.081 |
| Gnat | 25 | 29 | 7 | 2.21 | 6.63 | 74 | 459 | 1.066 |
| Weevil | 30 | 34 | 3 | 3.66 | 7.88 | 87 | 486 | 0.9082 |
| Mosquito | 35 | 40 | 7 | 2.59 | 7.77 | 102 | 603 | 0.7762 |
| Ladybird | 40 | 47 | 7 | 2.79 | 8.37 | 118 | 687 | 0.6689 |
| Ant | 50 | 57 | 7 | 3.1 | 9.3 | 146 | 828 | 0.5419 |
| Fly | 60 | 69 | 7 | 3.4 | 10.2 | 175 | 990 | 0.4505 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
