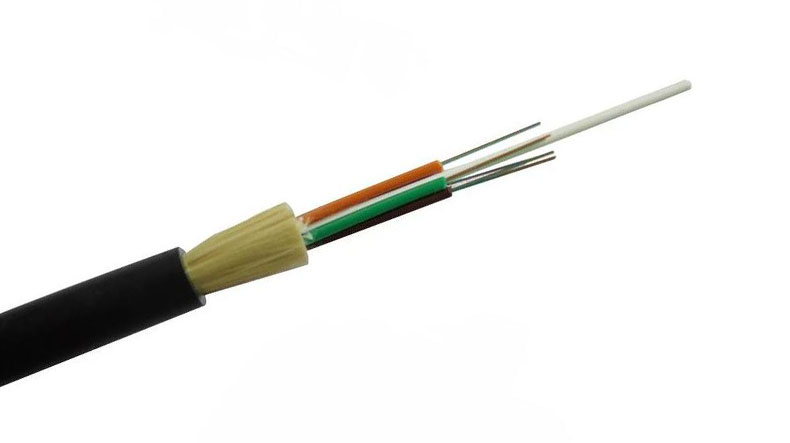

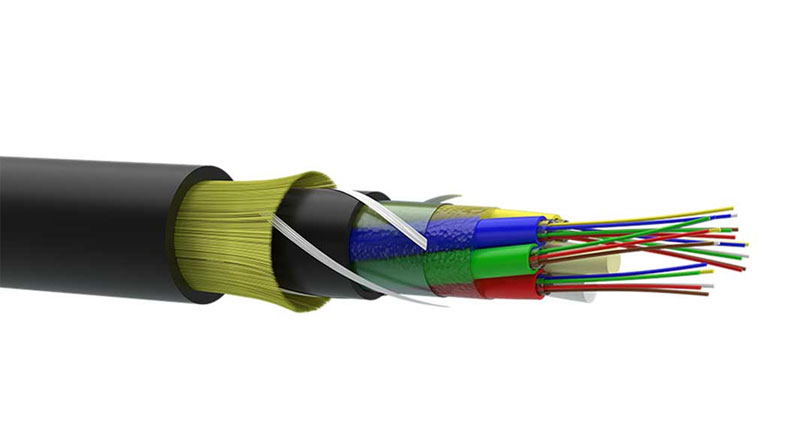

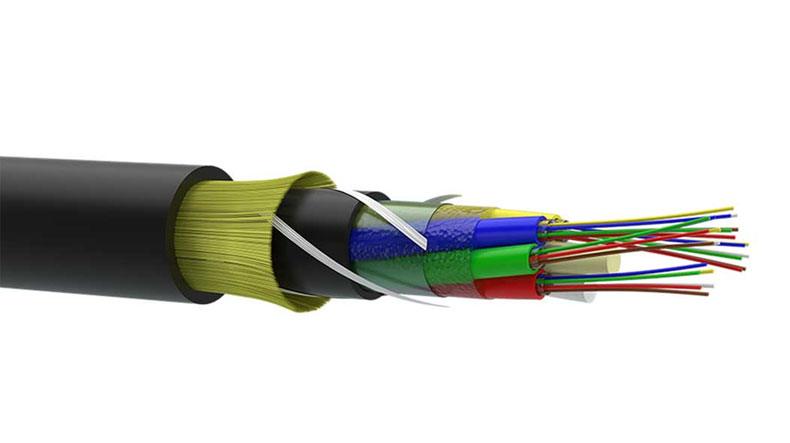

ADSS Fiber Optic Cable

ADSS fiber optic cable is mainly used in power communication systems,especially in high-voltage transmission lines.

Operation temperature: -20℃～+60℃;
Standards & References: IEC 60794-1-2 F1,ITU-T G.652;
Application: Due to its non-metallic structure and good insulation performance, ADSS optical cable is mainly used in power communication systems,especially in high-voltage transmission lines.

Request a Quote Leave Message

Description Product Parameter Packaging & Delivery FAQ

Product Introduction

Description: ADSS Fiber Optic Cable is the abbreviation of "All-Dielectric Self-Supporting".

Operation temperature: -20℃～+60℃;

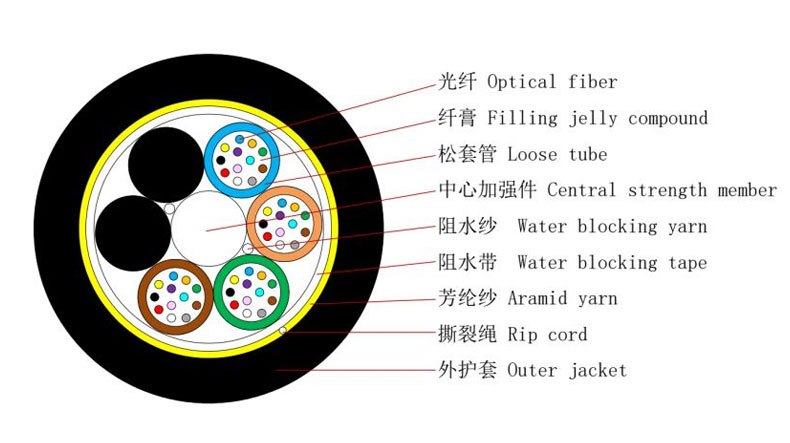

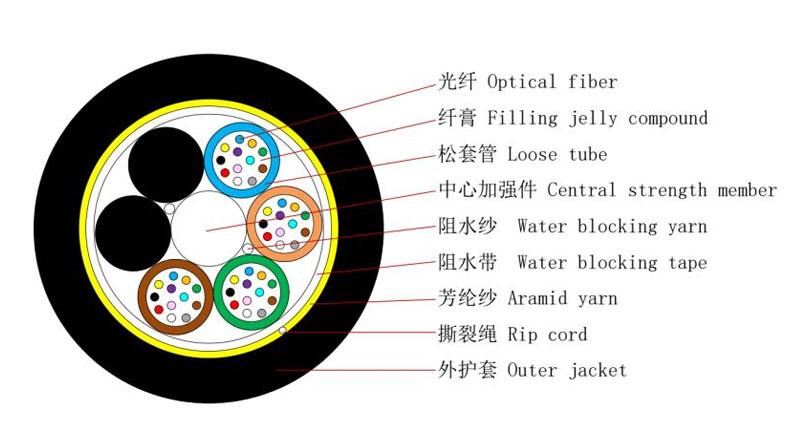

Cable performance:

Fiber Color: Full color spectrum, Natural color instead of white.

Loose tube: PBT, Full color spectrum

Filler: Black PE

CSM: FRP

Non-metal reinforced pieces: Aramid yarn

Outer jacket: Black MDPE

Application: Due to its non-metallic structure and good insulation performance, ADSS fiber optic cable is mainly used in power communication systems,especially in high-voltage transmission lines.

Fiber count	Structure	Fibers per tube	Loose Tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable weight (kg/km)
4	1+6	4	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	82
6	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	82
8	1+6	4	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	82
12	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	82
24	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	83
36	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	84
48	1+6	12	2.0±0.1	2.6/2.6	1.7±0.1	11.1 ±0.5	94
72	1+6	12	2.0±0.1	2.6/2.6	1.7±0.1	11.1 ±0.5	95
96	1+8	12	2.0±0.1	3.0/3.9	1.7±0.1	12.5±0.5	122
144	1+8	12	2.0±0.1	3.0/3.9	2.0±0.1	15.5±0.5	210

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
