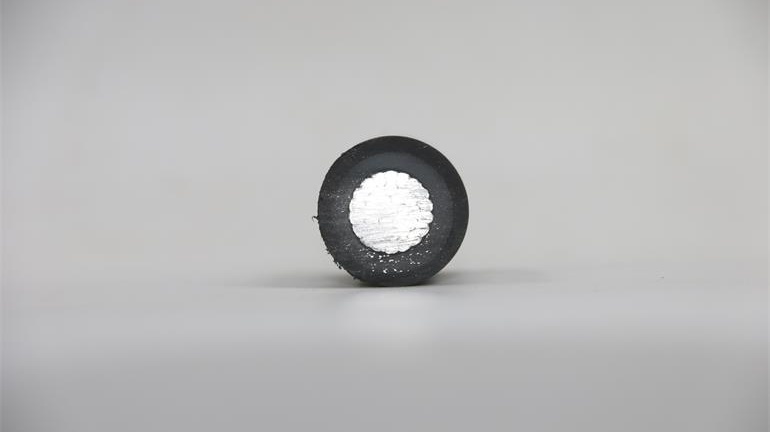

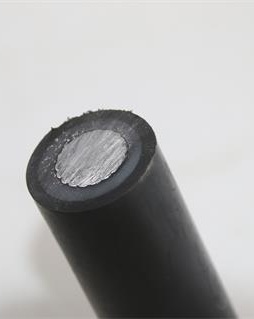

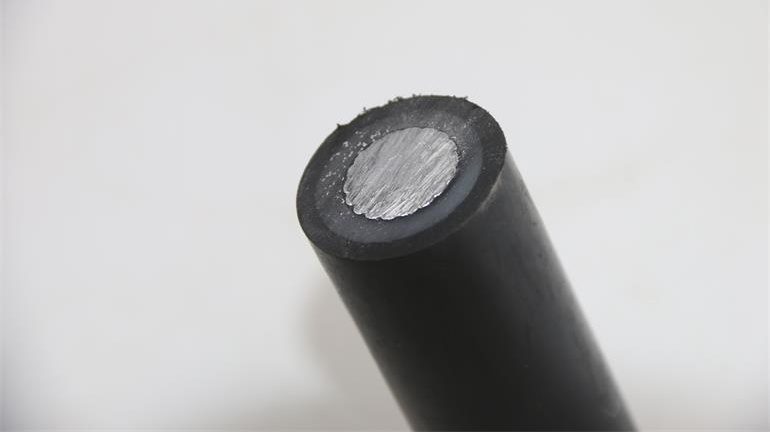

Tree Wire- ICEA S-61-402

The cable is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.
It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.

ApplicationThe cable is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.
It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.
Standard ASTM B230,ASTM B231,ASTM B232
ASTM B398,ASTM B399,ASTM B400

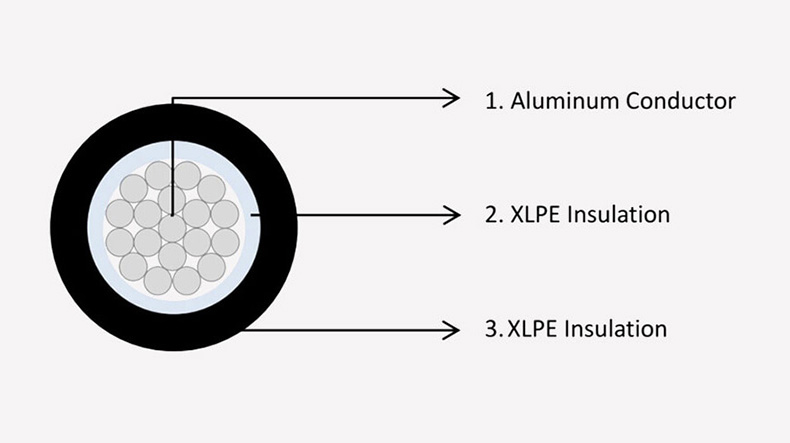

Construction AAC/AAC/ACSR Conductor , XLPE/ Insulation , HDPE Outer Jacket
Features Conveniences and Safety

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Product introduction

The cable is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.

It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.

Standard ASTM B230,ASTM B231,ASTM B232
ASTM B398,ASTM B399,ASTM B400

Construction AAC/AAC/ACSR Conductor , XLPE/ Insulation , HDPE Outer Jacket

Features Conveniences and Safety

Product Data Sheet

TABLE1-Product Data Sheet- Tree Wire-15KV-2Layer-ACSR Core

Size	Stranding No.	Conductor dia.	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mm	mm	mm	kg/km	KN
4	6/1	6.35	1.9	1.9	14.0	202	7.9
2	6/1	8.03	1.9	1.9	15.6	274	12
1/0	6/1	10.11	1.9	1.9	17.7	379	18.5
2/0	6/1	11.35	1.9	1.9	19.0	451	22.4
3/0	6/1	12.75	1.9	1.9	20.4	539	28
4/0	6/1	14.30	1.9	1.9	21.9	643	35.3
266.8	18/1	15.47	1.9	1.9	23.1	656	29.1
266.8	26/7	16.31	1.9	1.9	23.9	673	47.7
336.4	26/7	18.29	1.9	1.9	25.9	826	59.5
336.4	30/7	18.82	1.9	1.9	26.4	924	73.1
397.5	24/7	19.61	1.9	1.9	27.2	906	61.7
397.5	26/7	19.89	1.9	1.9	27.5	960	68.8
477	26/7	21.79	1.9	1.9	29.4	1134	82.3
477	30/7	22.43	1.9	1.9	30.0	1271	100.5
556.5	24/7	23.22	1.9	1.9	30.8	1232	83.6
556.5	26/7	23.55	1.9	1.9	31.2	1307	95.4
636	24/7	24.82	1.9	1.9	32.4	1393	92.9
636	26/7	25.15	1.9	1.9	32.8	1478	106.4
795	26/7	28.14	2.0	1.9	36.3	1836	133
795	45/7	27.00	2.0	2.0	35.1	1534	93.3

TABLE2-Product Data Sheet- Tree Wire-15KV-2Layer-AAC Core

Size	Stranding No.	Conductor dia.	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mm	mm	mm	kg/km	KN
1/0	7	8.53	1.9	1.9	16.2	292	8
2/0	7	9.55	1.9	1.9	17.2	342	10
3/0	7	10.74	1.9	1.9	18.4	405	12.2
4/0	7	12.07	1.9	1.9	19.7	484	15.3
266.8	19	13.64	1.9	1.9	21.3	576	19.9
336.4	19	15.32	1.9	1.9	22.9	693	24.6
397.5	19	16.74	1.9	1.9	24.4	796	28.4
477	19	18.34	1.9	1.9	26.0	927	33.4
556.5	37	19.81	1.9	1.9	27.4	1054	39.8
636	37	21.21	1.9	1.9	28.8	1182	45.6

TABLE3-Product Data Sheet- Tree Wire-15KV-3Layer-ACSR Core

Size	Stranding No.	Conductor dia.	Conductor Shield Thickness	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mils	mm	mm	mm	kg/km	KN
4	6/1	6.35	0.4	1.9	1.9	14.7	225	7.9
2	6/1	8.03	0.4	1.9	1.9	16.4	301	12
1/0	6/1	10.11	0.4	1.9	1.9	18.5	414	18.5
2/0	6/1	11.35	0.4	1.9	1.9	19.7	491	22.4
3/0	6/1	12.75	0.4	1.9	1.9	21.1	585	28
4/0	6/1	14.30	0.4	1.9	1.9	22.7	701	35.3
266.8	18/1	15.47	0.4	1.9	1.9	23.9	705	29.1
266.8	26/7	16.31	0.4	1.9	1.9	24.7	823	47.7
336.4	18/1	17.37	0.4	1.9	1.9	25.8	848	36.7
336.4	26/7	18.29	0.4	1.9	1.9	26.7	996	59.5
336.4	30/7	18.82	0.4	1.9	1.9	27.2	1391	73.1
397.5	18/1	18.87	0.4	1.9	1.9	27.3	972	42
397.5	24/7	19.61	0.4	1.9	1.9	28.0	1052	61.7
397.5	26/7	19.89	0.4	1.9	1.9	28.3	1146	68.8
477	24/7	21.49	0.4	1.9	1.9	29.9	1226	72.6
477	26/7	21.79	0.4	1.9	1.9	30.2	1338	82.3
477	30/7	22.43	0.4	1.9	1.9	30.8	1896	100.5
556.5	18/1	22.33	0.5	1.9	1.9	31.0	1301	57.9
556.5	24/7	23.22	0.5	1.9	1.9	31.9	1412	83.6
556.5	26/7	23.55	0.5	1.9	1.9	32.2	1542	95.4
636	18/1	23.88	0.5	1.9	1.9	32.5	1786	66.3
636	26/7	25.15	0.5	1.9	1.9	33.8	2043	106.4

TABLE4-Product Data Sheet- Tree Wire-15KV-3Layer-AAAC Core

Size	Stranding No.	Conductor dia.	Conductor Shield Thickness	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mils	mm	mm	mm	kg/km	KN
4	7	6.35	0.4	1.9	1.9	14.7	204	7
2	7	8.03	0.4	1.9	1.9	16.4	266	11.2
1/0	7	10.11	0.4	1.9	1.9	18.5	359	17.8
2/0	7	11.35	0.4	1.9	1.9	19.7	421	21.6
3/0	7	12.75	0.4	1.9	1.9	21.1	497	27.2
4/0	7	14.30	0.4	1.9	1.9	22.7	591	34.2
266.8	19	16.31	0.4	1.9	1.9	24.7	704	44
336.4	19	18.29	0.4	1.9	1.9	26.7	845	53.2
397.5	19	19.89	0.4	1.9	1.9	28.3	966	62.4
477	19	21.79	0.4	1.9	1.9	30.2	1124	75.2
556.5	19	23.55	0.5	1.9	1.9	32.2	1330	87.6
636	37	25.15	0.5	1.9	1.9	33.8	1433	97.6

TABLE5-Product Data Sheet- Tree Wire-15KV-3Layer-AAC Core

Size	Stranding No.	Conductor dia.	Conductor Shield Thickness	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mils	mm	mm	mm	kg/km	KN
1/0	7	8.53	0.4	1.9	1.9	16.9	313	8
2/0	7	9.55	0.4	1.9	1.9	17.9	366	10
3/0	7	10.74	0.4	1.9	1.9	19.1	430	12.2
4/0	7	12.07	0.4	1.9	1.9	20.4	510	15.3
266.8	19	13.64	0.4	1.9	1.9	22.0	606	19.9
336.4	19	15.32	0.4	1.9	1.9	23.7	725	24.6
397.5	19	16.74	0.4	1.9	1.9	25.1	830	28.4
477	19	18.34	0.4	1.9	1.9	26.7	964	33.4
556.5	37	19.81	0.5	1.9	1.9	28.4	1104	39.8
636	37	21.21	0.5	2.0	2.0	30.4	1259	45.6
795	37	23.67	0.5	2.0	2.0	32.8	1518	55.6

TABLE6-Product Data Sheet- Tree Wire-25KV-3Layer-ACSR Core

Size	Stranding No.	Conductor dia.	Conductor Shield Thickness	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mils	mm	mm	mm	kg/km	KN
1/0	6/1	10.11	0.4	3.2	3.2	23.6	573	18.5
2/0	6/1	11.35	0.4	3.2	3.2	24.8	659	22.4
3/0	6/1	12.75	0.4	3.2	3.2	26.2	763	28
4/0	6/1	14.30	0.4	3.2	3.2	27.8	893	35.3
266.8	18/1	15.47	0.4	3.2	3.2	28.9	905	29.1
266.8	26/7	16.31	0.4	3.2	3.2	29.8	1030	47.7
336.4	18/1	17.37	0.4	3.2	3.2	30.8	1063	36.7
336.4	26/7	18.29	0.4	3.2	3.2	31.8	1217	59.5
336.4	30/7	18.82	0.4	3.2	3.2	32.3	1616	73.1
397.5	18/1	18.87	0.4	3.2	3.2	32.3	1197	42
397.5	24/7	19.61	0.4	3.2	3.2	33.1	1284	61.7
397.5	26/7	19.89	0.4	3.2	3.2	33.4	1378	68.8
477	24/7	21.49	0.5	3.2	3.2	35.2	1487	72.6
477	26/7	21.79	0.5	3.2	3.2	35.5	1601	82.3
477	30/7	22.43	0.5	3.2	3.2	36.1	2170	100.5
556.5	18/1	22.33	0.5	3.2	3.2	36.0	1555	57.9
556.5	24/7	23.22	0.5	3.2	3.2	36.9	1673	83.6
556.5	26/7	23.55	0.5	3.2	3.2	37.3	1805	95.4

TABLE7-Product Data Sheet- Tree Wire-25KV-3Layer-AAAC Core

Size	Stranding No.	Conductor dia.	Conductor Shield Thickness	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mils	mm	mm	mm	kg/km	KN
4	7	6.35	0.4	3.2	3.2	19.8	335	7
2	7	8.03	0.4	3.2	3.2	21.5	409	11.2
1/0	7	10.11	0.4	3.2	3.2	23.6	518	17.8
2/0	7	11.35	0.4	3.2	3.2	24.8	589	21.6
3/0	7	12.75	0.4	3.2	3.2	26.2	676	27.2
4/0	7	14.30	0.4	3.2	3.2	27.8	781	34.2
266.8	19	16.31	0.4	3.2	3.2	29.8	909	44
336.4	19	18.29	0.4	3.2	3.2	31.8	1066	53.2
397.5	19	19.89	0.4	3.2	3.2	33.4	1198	62.4
477	19	21.79	0.5	3.2	3.2	35.5	1387	75.2
556.5	19	23.55	0.5	3.2	3.2	37.3	1554	87.6
636	37	25.15	0.5	3.2	3.2	38.9	1708	97.6
795	37	28.14	0.5	3.2	3.2	41.9	2067	122

TABLE8-Product Data Sheet- Tree Wire-35KV-3Layer-ACSR Core

Size	Stranding No.	Conductor dia.	Conductor Shield Thickness	Insulation thickness	Outer sheath thickness	Approx. Cable. Dia.	Approx. Cable Weight	Rated strength
AWG/kcmil	No.s	mm	mils	mm	mm	mm	kg/km	KN
1/0	6/1	10.11	0.4	4.4	3.2	26.1	667	18.5
2/0	6/1	11.35	0.4	4.4	3.2	27.4	757	22.4
4/0	6/1	14.30	0.4	4.4	3.2	30.3	1002	35.3
266.8	18/1	15.47	0.4	4.4	3.2	31.5	1018	29.1
266.8	26/7	16.31	0.4	4.4	3.2	32.3	1146	47.7
336.4	18/1	17.37	0.4	4.4	3.2	33.4	1182	36.7
336.4	26/7	18.29	0.4	4.4	3.2	34.3	1341	59.5
336.4	30/7	18.82	0.4	4.4	3.2	34.8	1741	73.1
397.5	18/1	18.87	0.4	4.4	3.2	34.9	1323	42
397.5	24/7	19.61	0.4	4.4	3.2	35.6	1412	61.7
397.5	26/7	19.89	0.4	4.4	3.2	35.9	1508	68.8
477	24/7	21.49	0.5	4.4	3.2	37.7	1624	72.6
477	26/7	21.79	0.5	4.4	3.2	38.0	1738	82.3
477	30/7	22.43	0.5	4.4	3.2	38.7	2310	100.5
556.5	18/1	22.33	0.5	4.4	3.2	38.6	1694	57.9
556.5	24/7	23.22	0.5	4.4	3.2	39.5	1816	83.6
556.5	26/7	23.55	0.5	4.4	3.2	39.8	1948	95.4
636	18/1	23.88	0.5	4.4	3.2	40.1	2436	66.3
636	26/7	25.15	0.5	4.4	3.2	41.4	2717	106.4
795	26/7	28.12	0.5	4.4	3.2	44.4	3194	133
795	45/7	27.00	0.5	4.4	3.2	43.3	2816	93.3

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
