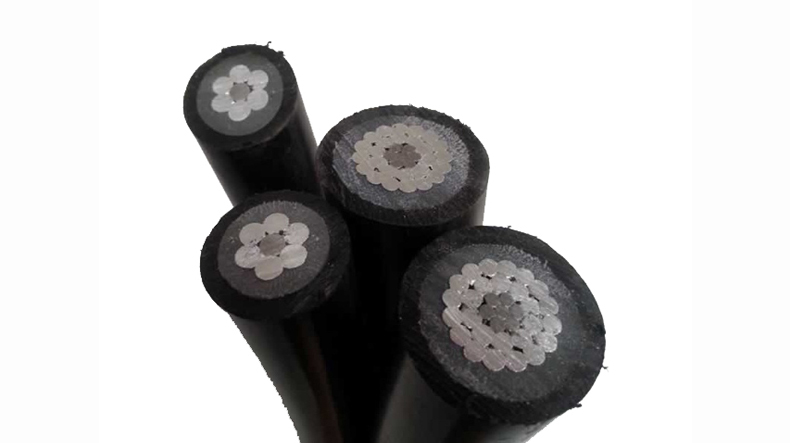

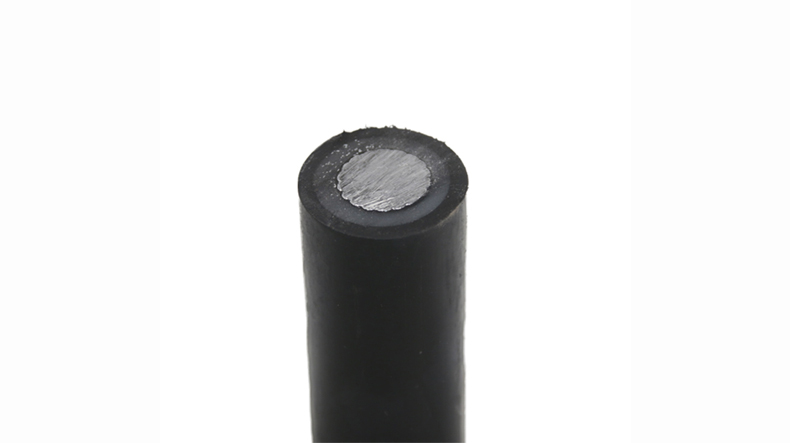

Spaced aerial cable is a type of power line construction used for overhead electricity transmission.
Description: Spaced aerial cable is a type of power line construction used for overhead electricity transmission.
Standard: ASTM B230,ICEA S 66-524 , IEC 60228, IEC60502-2;

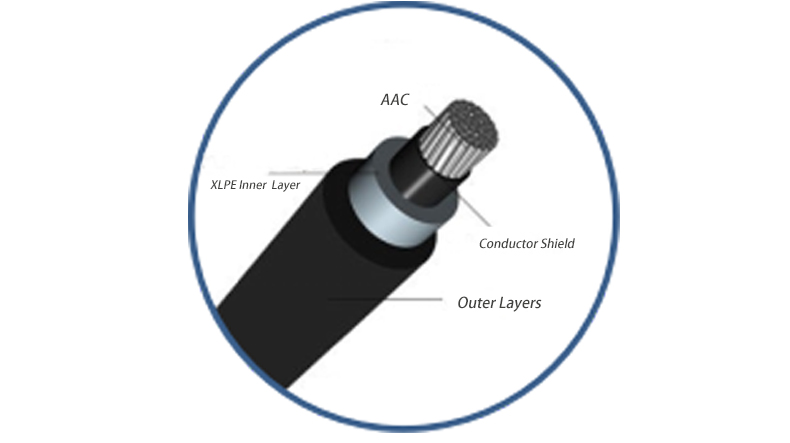

Construction: AAC Conductor , XLPE/ Insulation , PE Outer Jacket;
Application: The cable is used for overhead power transmission and distribution lines up to 33 KV It can be used in Areas with trees , Areas with right-of-way concerns, Alley construction，Areas with ice storms，Areas of high winds，Contaminated areas, etc.
| Cable Size | Conductor Construction | Conductor shield thickness | Insulation thickness | Outer Jacket thickness | Cable dia. | Conductor Resistance | |
| Stranding No. | Overall dia. | ||||||
| mm2 | mm | mm | mm | mm | mm | mm | Ω/km |
| 50 | ≥6 | 7.7-8.6 | 0.4 | 4.5 | 3.2 | 24.4 | 0.641 |
| 70 | ≥12 | 9.3-10.2 | 0.4 | 4.5 | 3.2 | 26.1 | 0.443 |
| 95 | ≥15 | 11.0-12.0 | 0.4 | 4.5 | 3.2 | 27.8 | 0.32 |
| 120 | ≥15 | 12.3-13.5 | 0.4 | 4.5 | 3.2 | 29.2 | 0.253 |
| 150 | ≥18 | 13.7-15.0 | 0.4 | 4.5 | 3.2 | 30.6 | 0.206 |
| 185 | ≥30 | 15.3-16.8 | 0.4 | 4.5 | 3.2 | 32.4 | 0.164 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
