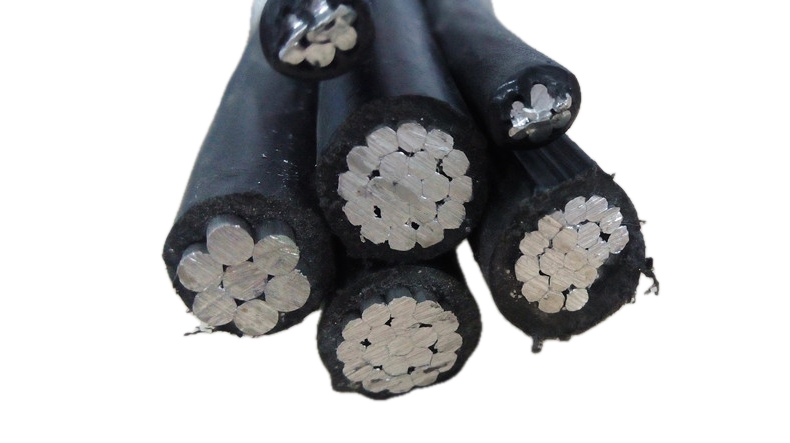

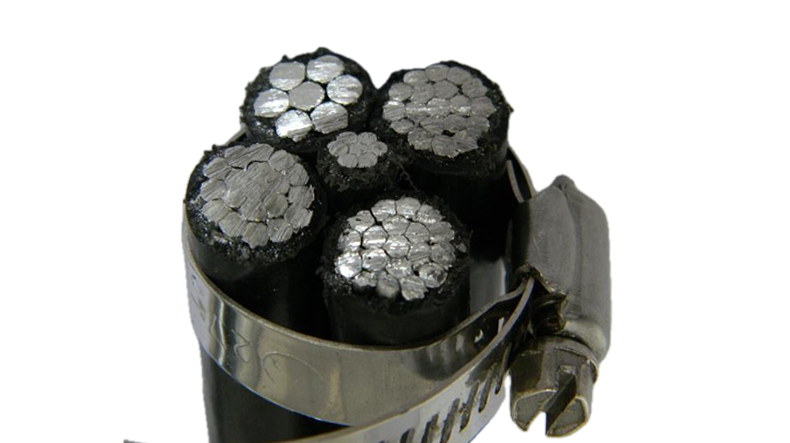

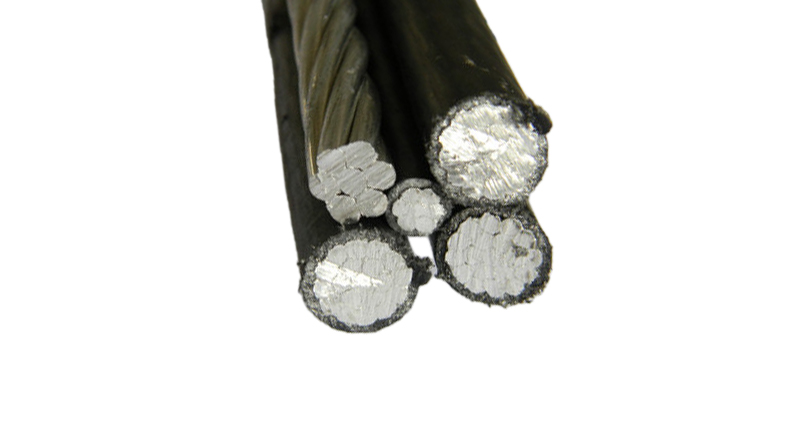

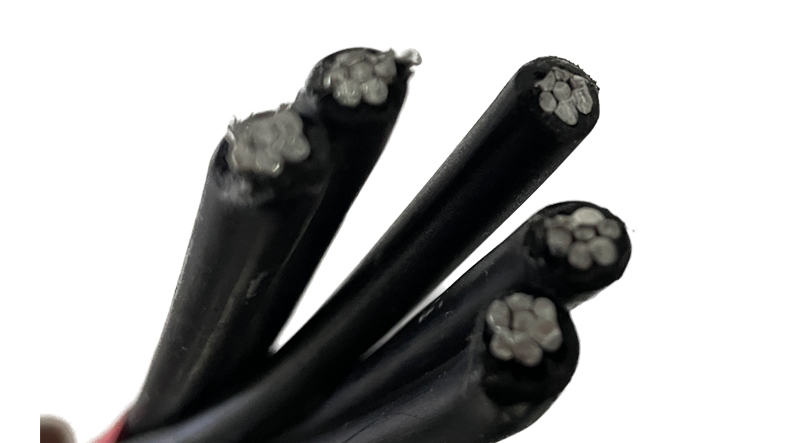

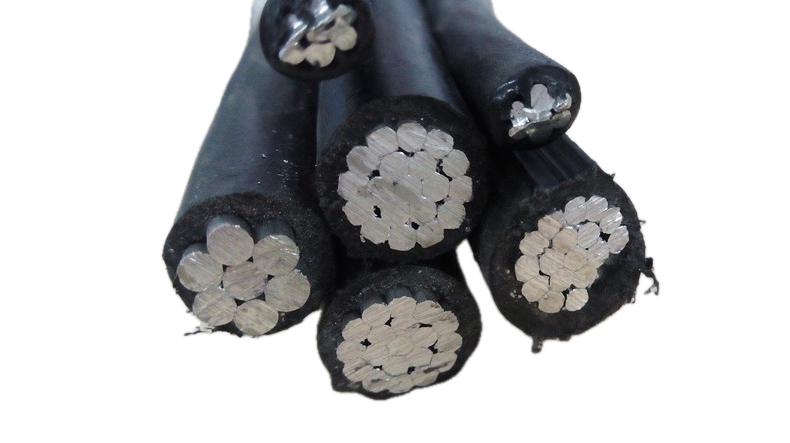

LXS Cable-Overhead insulated cable

LXS cable is a specific type of cable designed for overhead power distribution.

Applicable Standard: IEC60502, NFC 33-209;
Construction: Al/Al Alloy/Cu Conductor, XLPE/PE/PVC Insulation;
Application: XS(LXS) cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting.

Request a Quote Leave Message

Description Product Parameter Packaging & Delivery FAQ

Product Introduction

Description: LXS cable is a specific type of cable designed for overhead power distribution.

Applicable Standard: IEC60502, NFC 33-209;

Construction: Al/Al Alloy/Cu Conductor, XLPE/PE/PVC Insulation;

Application: XS(LXS) cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting.

Type	Size	Conductor				Insulation	Approx. Insulated dia.
		Stranding No.	Max. Conductor Resistance 20℃	Conductor Dia.	Rated strength	Average thickness
	mm2	—	Ω/km	mm	KN	mm	mm
Phase core or Street lighting core	16	7	1.91	4.6~5.2	1.9	1.2	7.5
	25	7	1.2	5.6~6.5	/	1.4	9.0
	35	Min.6	0.868	6.6~7.5	/	1.6	10.2
	50	Min.6	0.641	7.7~8.6	/	1.6	11.2
	70	Min.12	0.443	9.3~10.2	/	1.8	13.2
	95	Min.15	0.32	11.0~12.0	/	1.8	15.0
	120	Min.15	0.253	12.3~13.5	/	1.8	16.2
	150	Min15	0.206	13.7~15.0	/	1.7	18.2
Neutral Core	54.6	7	0.63	9.2~9.6	16.6	1.6	12.6
	70	7	0.5	10.0~10.2	20.5	1.5	14.0
	95	19	0.343	12.2~12.9	27.5	1.6	16.1

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
