600V Covered Line Conductor

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

Application The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.
Standard IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474

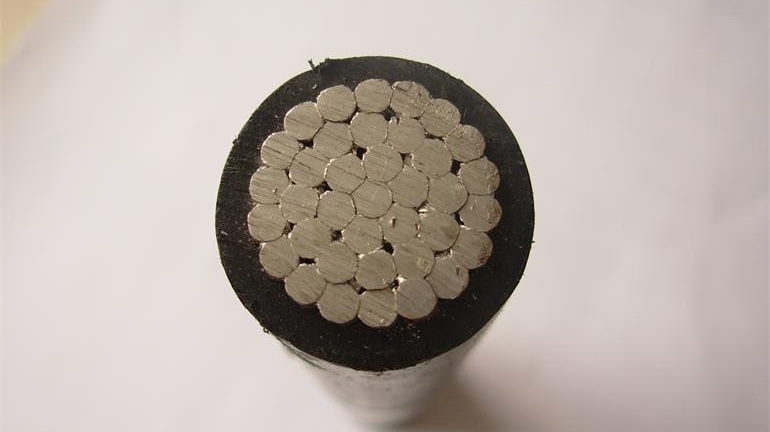

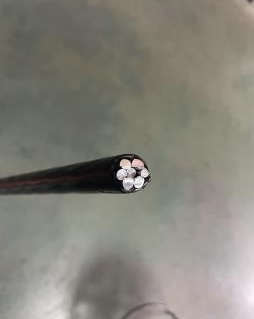

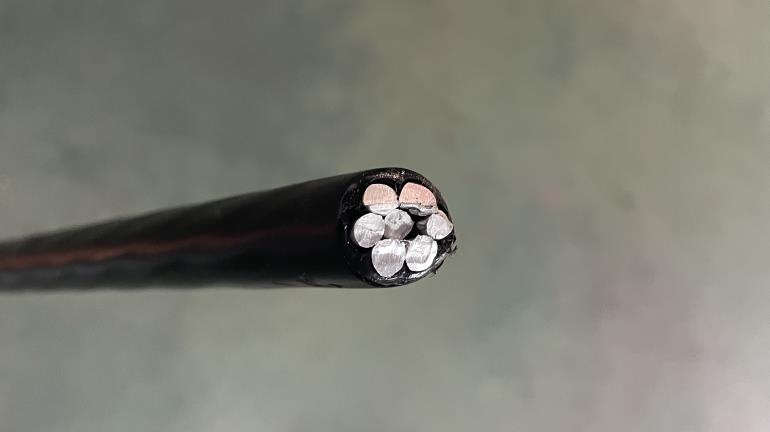

Construction Al/Al Alloy/Cu Conductor, XLPE/PE/PVC Insulation
Features Conveniences and Safety

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Product introduction

Standard IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474

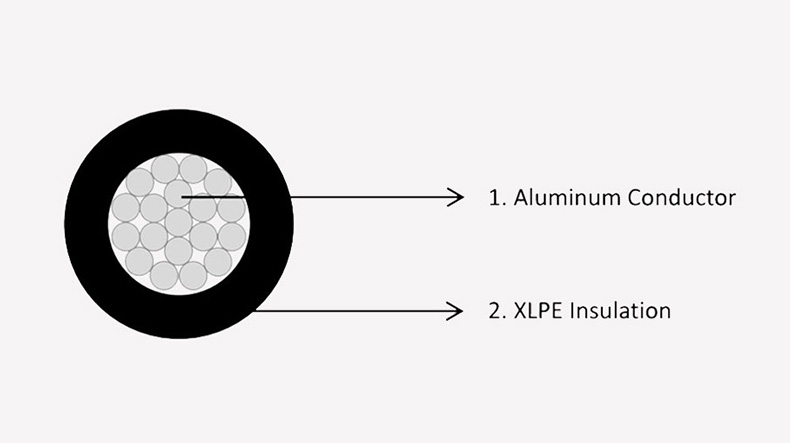

Construction Al/Al Alloy/Cu Conductor, XLPE/PE/PVC Insulation

Features Conveniences and Safety

Product Data Sheet

TABLE1-Product Data Sheet -All Aluminum Conductor Covered Line Wire- ICEA S-70-547

Code	Size	Nominal Cross Section	Conductor			Insulation Nominal Thickness	Approx. overall dia.	Approx. weight	20℃DC resistance	Rated tensile strength
			Single wire		Strands Dia.
			No.	Dia.	Strands Dia.
	AWG/kcmil	mm²	Nos	mm	mm	mm	mm	kg/km	Ω/km	daN
Plum	6	13.29	7	1.55	4.65	0.76	6.17	49	2.1692	249
Apricot	4	21.16	7	1.96	5.38	0.76	6.9	72	1.3624	396
Peach	2	33.61	7	2.47	6.78	1.14	9.06	120	0.8577	597
Nectarine	1	42.39	7	2.78	7.63	1.52	10.67	159	0.6801	732
Quince	1/0	53.48	7	3.12	8.56	1.52	11.6	194	0.539	873
Haw	1/0	53.48	19	1.89	8.65	1.52	11.69	194	0.539	873
Orange	2/0	67.42	7	3.5	9.61	1.52	12.65	237	0.4276	1100
Ironwood	2/0	67.42	19	2.13	9.74	1.52	12.78	238	0.4276	1100
Fig	3/0	85.03	7	3.93	10.79	1.52	13.83	291	0.339	1347
Lemon	3/0	85.03	19	2.39	10.93	1.52	13.97	292	0.339	1347
Olive	4/0	107.23	7	4.42	12.13	1.52	15.17	358	0.2688	1698
Pomegranate	4/0	107.23	19	2.68	12.26	1.52	15.3	359	0.2688	1698
Sassafras	250	126.71	19	2.91	13.31	2.00	17.31	442	0.2275	2007
Mulberry	266.8	135.16	19	3.01	13.77	2.00	17.77	468	0.2133	2141
Basswood	300	152.00	19	3.19	14.59	2.00	18.59	519	0.1896	2403
Annona	336.4	170.45	19	3.38	15.46	2.00	19.46	575	0.1691	2695
Chinquapin	350	177.35	19	3.45	15.78	2.00	19.78	596	0.1625	2804
Molles	397.5	201.42	19	3.67	16.79	2.00	20.79	669	0.1431	3184
Sumac	450	228.00	19	3.91	17.89	2.00	21.89	748	0.1264	3499
Huckleberry	477	241.68	37	2.88	18.45	2.00	22.45	789	0.1193	3849

TABLE2-Product Data Sheet -Aluminum Alloy 6201-T81 Conductor Covered Line Wire- ICEA S-70-547

Code	Size	Nominal Cross Section	Conductor			Insulation Nominal Thickness	Approx. overall diameter	Approx. weight	20℃ DC resistance	Rated tensile strength
	AWG/ kcmil		Single wire		Stranded Dia.
			No.	Dia.	Stranded Dia.
		mm²	Nos	mm	mm	mm	mm	kg/km	Ω/km	daN
Maple	6	15.51	7	1.68	5.04	0.76	6.56	57	2.1598	492
Hornbeam	4	24.67	7	2.12	6.36	0.76	7.88	85	1.3557	783
Linden	2	39.26	7	2.67	8.01	1.14	10.29	140	0.8547	1250
Oilnut	1/0	62.46	7	3.37	10.11	1.52	13.15	226	0.5365	1978
Waterash	2/0	78.75	7	3.78	11.34	1.52	14.38	276	0.4264	2398
Shellbark	3/0	99.20	7	4.25	12.75	1.52	15.79	339	0.3373	3017
Planetree	4/0	125.10	7	4.77	14.31	1.52	17.35	417	0.2678	3807

TABLE3-Product Data Sheet -Aluminum Conductor Steel-reinforced Covered Line Wire- ICEA S-70-547

Code	Size	Nominal Cross Section		Conductor
				Single wire				Strands Dia.
				Al		St
		Al	St	No.	Dia.	No.	Dia.
	AWG/kcmil	mm²	mm²	Nos	mm	Nos	mm	mm
Walnut	6	13.29	2.19	6	1.68	1	1.67	5.03
Butternut	4	21.16	3.55	6	2.12	1	2.13	6.37
Hickory	4	21.16	5.35	7	1.96	1	2.61	6.53
Pignut	2	33.61	5.61	6	2.67	1	2.67	8.01
Beech	2	33.61	8.52	7	2.47	1	3.29	8.23
Chestnut	1	42.39	7.10	6	3.00	1	3.01	9.01
Almond	1/0	53.48	8.90	6	3.37	1	3.37	10.11
Walnut	6	13.29	2.19	6	1	0.76	72.9	5
Butternut	4	21.16	3.55	6	1	0.76	106.9	5.2
Hickory	4	21.16	5.35	7	1	0.76	121.4	10
Pignut	2	33.61	5.61	6	1	1.14	175.8	12
Beech	2	33.61	8.52	7	1	1.14	199.6	15.4
Chestnut	1	42.39	7.1	6	1	1.14	216.5	15
Almond	1/0	53.48	8.9	6	1	1.52	283.4	18.5
Pecan	2/0	67.42	11.23	6	1	1.52	348.5	22.4
Filbert	3/0	85.03	14.19	6	1	1.52	429.3	28
Buckeye	4/0	107.23	17.87	6	1	1.52	530.5	35.3
Hackrry	266.8	135.16	7.48	18	1	1.52	528	29.1

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
