The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.
Standard IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474

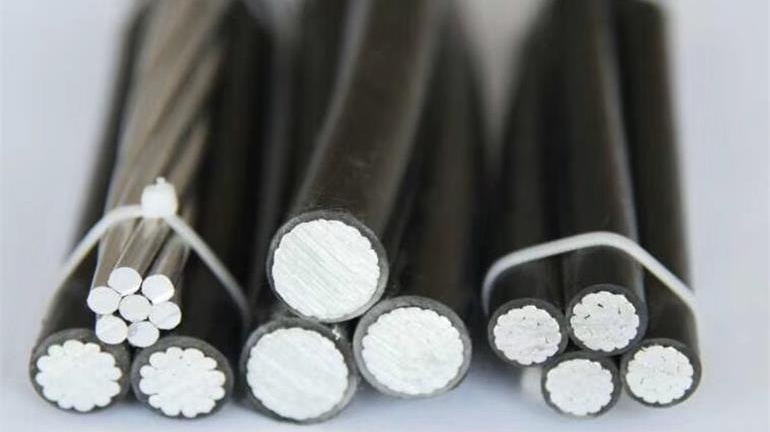

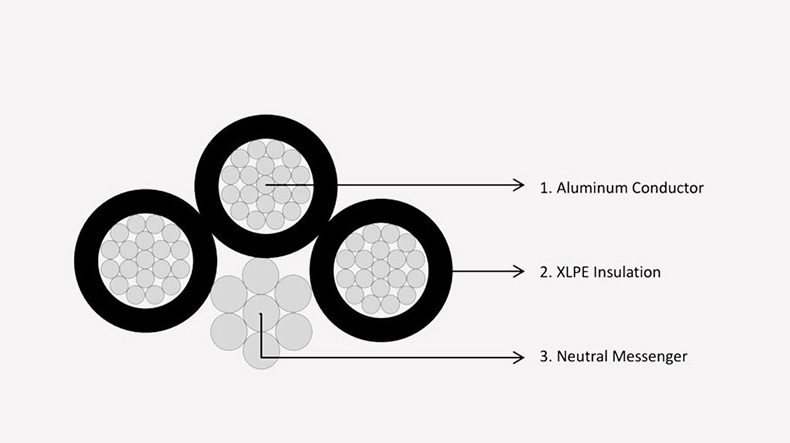

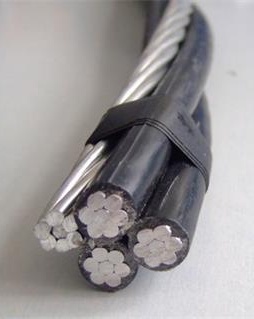

Construction Al/Al Alloy/Cu Conductor, XLPE/PE/PVC Insulation
Features Conveniences and Safety
| Core No. x Conductor Size | Phase Core | Neutral Core | Approx. Overall Dia. | Approx. Weight | |||||||
| Conductor | Insulation | Conductor | Insulation* | Rated Strength | |||||||
| Str No. | Dia. | Nominal Thickness | Str. | Cond. Dia. | Nominal Thickness | Bare Neutral | Insulated Neutral | Bare Neutral | Insulated Neutral | ||
| No. | |||||||||||
| No.s x mm2 | No.s | mm | mm | No.s | mm | mm | KN | mm | mm | kg/km | kg/km |
| 1×10 | 7 | 4.05 | 1.0 | — | — | — | — | 6.05 | — | 45 | — |
| 1×16 | 7 | 5.10 | 1.2 | — | — | — | — | 7.50 | — | 70 | — |
| 1×25 | ≥6 | 5.6-6.5 | 1.2 | — | — | — | — | 8.60 | — | 94 | — |
| 1×35 | ≥6 | 6.6-7.5 | 1.4 | — | — | — | — | 10.00 | — | 130 | — |
| 1×50 | ≥6 | 7.7-8.6 | 1.4 | — | — | — | — | 11.10 | — | 175 | — |
| 1×70 | ≥12 | 9.3-10.2 | 1.4 | — | — | — | — | 12.80 | — | 236 | — |
| 1×95 | ≥15 | 11.0-12.0 | 1.4 | — | — | — | — | 14.40 | — | 311 | — |
| 1×120 | ≥15 | 12.3-13.5 | 1.6 | — | — | — | — | 16.20 | — | 393 | — |
| 1×10+10 | 1 | 3.5 | 1 | 7 | 4.05 | 1 | 1.85 | 9.6 | 12.1 | 70 | 85 |
| 1×16+16 | 7 | 5.1 | 1.2 | 7 | 5.13 | 1.2 | 2.89 | 12.6 | 15 | 110 | 133 |
| 1×25+25 | ≥6 | 6.2 | 1.2 | 7 | 6.39 | 1.2 | 4.28 | 15 | 17.4 | 164 | 191 |
| 1×35+35 | ≥6 | 7.2 | 1.4 | 7 | 7.56 | 1.4 | 5.82 | 17.5 | 20.4 | 227 | 265 |
| 1×50+50 | ≥6 | 8.3 | 1.4 | 7 | 9.06 | 1.4 | 8.08 | 20.1 | 23 | 314 | 359 |
| 1×70+70 | ≥12 | 10 | 1.4 | 7 | 10.71 | 1.4 | 10.64 | 23.5 | 26.3 | 433 | 483 |
| 1×95+95 | ≥15 | 11.6 | 1.4 | 7 | 12.48 | 1.4 | 14.44 | 26.9 | 29.7 | 577 | 635 |
| 1×120+120 | ≥15 | 13 | 1.6 | 19 | 14.2 | 1.6 | 19.38 | 30.4 | 33.6 | 731 | 806 |
| 2×10+10 | 1 | 3.5 | 1 | 7 | 4.05 | 1 | 1.85 | 10.8 | 13 | 113 | 128 |
| 2×16+16 | 7 | 5.1 | 1.2 | 7 | 5.13 | 1.2 | 2.89 | 14.5 | 16.2 | 176 | 199 |
| 2×25+25 | ≥6 | 6.2 | 1.2 | 7 | 6.39 | 1.2 | 4.28 | 16.9 | 18.7 | 259 | 286 |
| 2×35+35 | ≥6 | 7.2 | 1.4 | 7 | 7.56 | 1.4 | 5.82 | 19.7 | 21.8 | 359 | 397 |
| 2×50+50 | ≥6 | 8.3 | 1.4 | 7 | 9.06 | 1.4 | 8.08 | 22.4 | 24.5 | 492 | 537 |
| 2×70+70 | ≥12 | 10 | 1.4 | 7 | 10.71 | 1.4 | 10.64 | 26.1 | 28.1 | 673 | 723 |
| 2×95+95 | ≥15 | 11.6 | 1.4 | 7 | 12.48 | 1.4 | 14.44 | 29.6 | 31.6 | 893 | 950 |
| 2×120+120 | ≥15 | 13 | 1.6 | 19 | 14.2 | 1.6 | 19.38 | 33.5 | 35.8 | 1130 | 1205 |
| 2×150+150 | ≥15 | 14.6 | 1.8 | 19 | 15.85 | 1.8 | 23.51 | 37.5 | 40.1 | 1414 | 1507 |
| 3×10+10 | 1 | 3.5 | 1 | 7 | 4.05 | 1 | 1.85 | 12.4 | 14.6 | 155 | 170 |
| 3×16+16 | 7 | 5.1 | 1.2 | 7 | 5.13 | 1.2 | 2.89 | 16.7 | 18.1 | 243 | 265 |
| 3×25+25 | ≥6 | 6.2 | 1.2 | 7 | 6.39 | 1.2 | 4.28 | 19.4 | 20.9 | 354 | 381 |
| 3×35+35 | ≥6 | 7.2 | 1.4 | 7 | 7.56 | 1.4 | 5.82 | 22.6 | 24.4 | 490 | 529 |
| 3×50+50 | ≥6 | 8.3 | 1.4 | 7 | 9.06 | 1.4 | 8.08 | 25.5 | 27.3 | 670 | 715 |
| 3×70+70 | ≥12 | 10 | 1.4 | 7 | 10.71 | 1.4 | 10.64 | 29.6 | 31.3 | 913 | 963 |
| 3×95+95 | ≥15 | 11.6 | 1.4 | 7 | 12.48 | 1.4 | 14.44 | 33.6 | 35.3 | 1208 | 1266 |
| 3×120+120 | ≥15 | 13 | 1.6 | 19 | 14.2 | 1.6 | 19.38 | 37.9 | 39.8 | 1530 | 1604 |

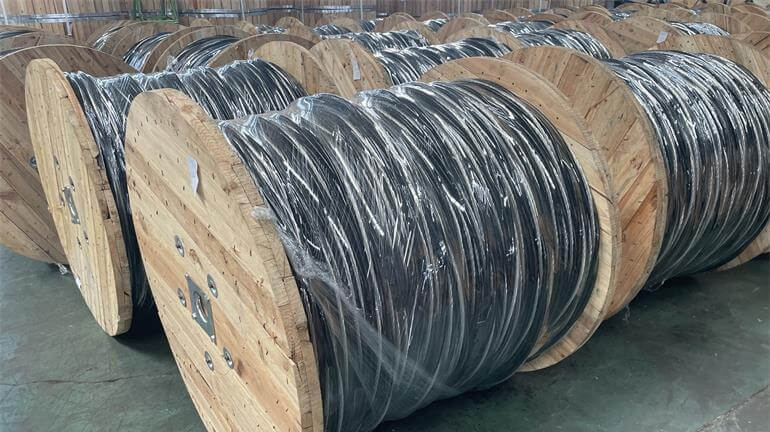

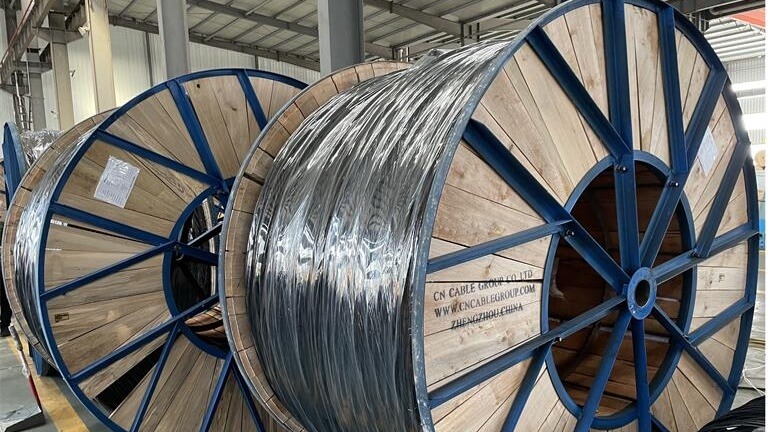

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
