Solar cables is crucial for the reliable and efficient operation of solar PV systems, facilitating the transmission of electricity generated by solar panels while ensuring safety,durability, and compliance with standards.Suitable for fixed installations, internal and external, within conduit or systems.Impact tested -Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
Standard: EN 50618, TÜV 2 PfG 1169/08.2007

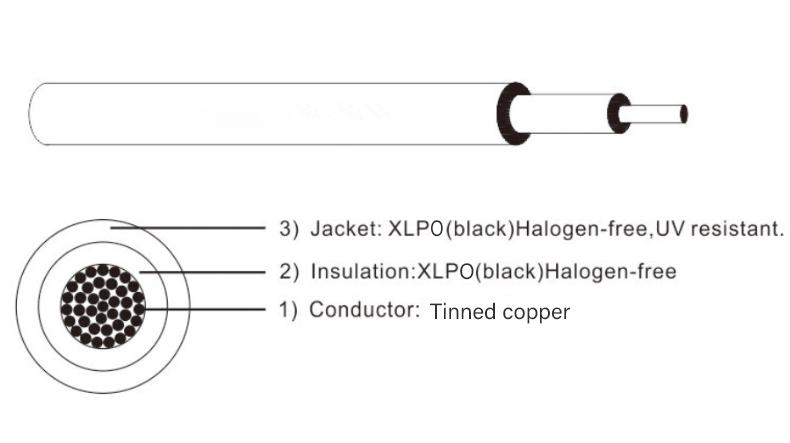

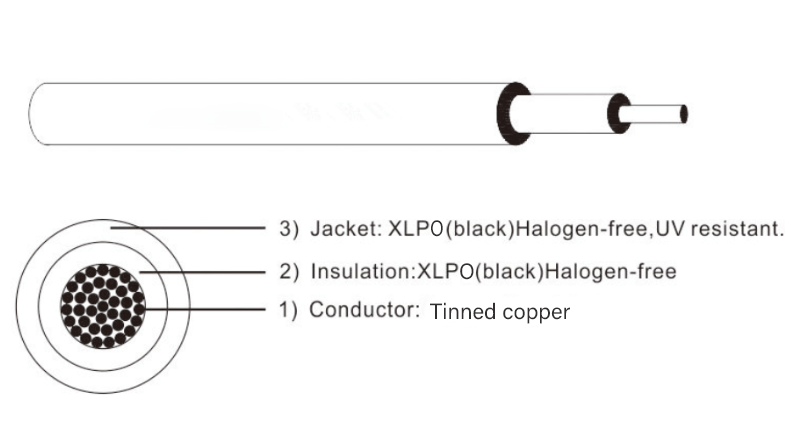

Construction: Conductor:Tinned Copper Conductor ; Insulation:Halogen-free cross-linked compound ; Sheath:Halogen-free cross-linked
Voltage: AC: 1000/1000V DC: 1500/1500V
Feature: UV Resistance,Weather Resistance,LSZH
Description:Solar cables is crucial for the reliable and efficient operation of solar PV systems, facilitating the transmission of electricity generated by solar panels while ensuring safety, durability, and compliance with standards.Suitable for fixed installations, internal and external, within conduit or systems.Impact tested -Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
| NO. OF
CORES |
NOMINAL CROSS
SECTIONAL AREA mm2 |
NOMINAL OVERALL
DIAMETER mm |
NOMINAL
WEIGHT kg/km |
TENSILE STRENGTH
IN OPERATION N |
| 1 | 1.5 | 4.6 | 36 | 22 |
| 1 | 2.5 | 5.0 | 46 | 37 |
| 1 | 4 | 5.6 | 62 | 60 |
| 1 | 6 | 6.1 | 82 | 90 |
| 1 | 10 | 7.1 | 125 | 150 |
| 1 | 16 | 8.5 | 190 | 240 |
| 1 | 25 | 10.4 | 285 | 375 |
| 1 | 35 | 11.5 | 385 | 525 |
| 1 | 50 | 13.7 | 540 | 750 |
| 1 | 70 | 15.8 | 740 | 1050 |
| 1 | 95 | 17.3 | 965 | 1350 |
| 1 | 120 | 19.1 | 1210 | 1800 |
| 1 | 150 | 21.4 | 1495 | 2250 |
| 1 | 185 | 24.9 | 1885 | 2775 |
| 1 | 240 | 27.3 | 2395 | 3600 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
